Scotchlok™ 7000133312

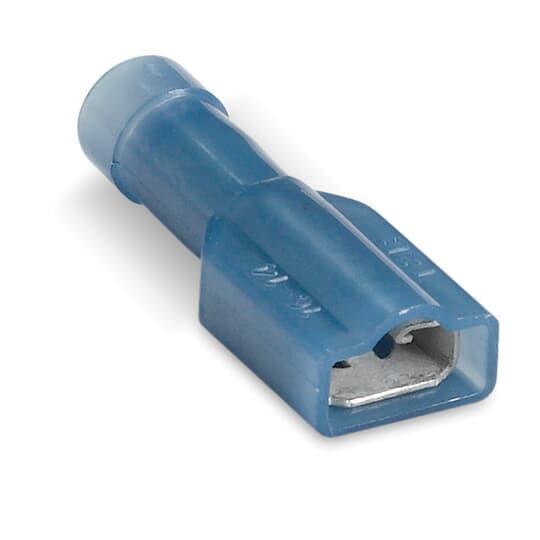

Scotchlok™ 7000133312 Insulated Disconnect Terminal, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Nylon, Blue, Fully Insulated
- Manufacturer Name: 3M
- MPN: 7000133312
- Brand Name: Scotchlok™
- UPC: 051128587249
- FEPN: MNG14-187DFIX 3M
- Min Order Qty: 1
- Quantity Interval: 500
-
Inventory Availability
-
Retail Price:
3M™ Scotchlok™ color coded female disconnect terminal attaches to the mating part with a tongue that slips over-the male tab. This terminal has a butted seam barrel which is covered by a funnel designed, seamless brass sleeve to guide the wire into position. The nylon-sleeve is abrasion-resistant, fully insulated and flared to allow a positive grip. Its stepped design offers mistake-proof crimping.
Scotchlok™, 7000133312, Disconnect Terminal, Insulated, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600/1000 VAC, Specifications: 0.145 in Dia Max Insulation, 0.085 in ID x 0.25 in L Barrel, 0.23 in Dia, -40 to 221 deg F, Nylon, Blue, Tin Plated, 0.81 in L Dimensions, Insulated: Fully Insulated
| Dimensions | : | 0.81 in L |
| Finish | : | Tin Plated |
| Specifications | : | 0.145 in Dia Max Insulation, 0.085 in ID x 0.25 in L Barrel, 0.23 in Dia |
| Temperature Rating | : | -40 to 221 deg F |
| Terminal Type | : | Crimp |
| Type | : | Fully Insulated |
| Voltage Rating | : | 600/1000 VAC |
| Conductor Size | : | 16 to 14 AWG |
| Tab Size | : | 0.187 in W x 0.02 in THK |
| Barrel Type | : | Butted Seam |
| Material | : | Nylon |
| Color | : | Blue |
| Insulated | : | Fully Insulated |
- Made of durable brass for good conductivity and has corrosion-resistant tin plating
- Free hanging (in-line) mounting
- Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)
