NSI R12-14V

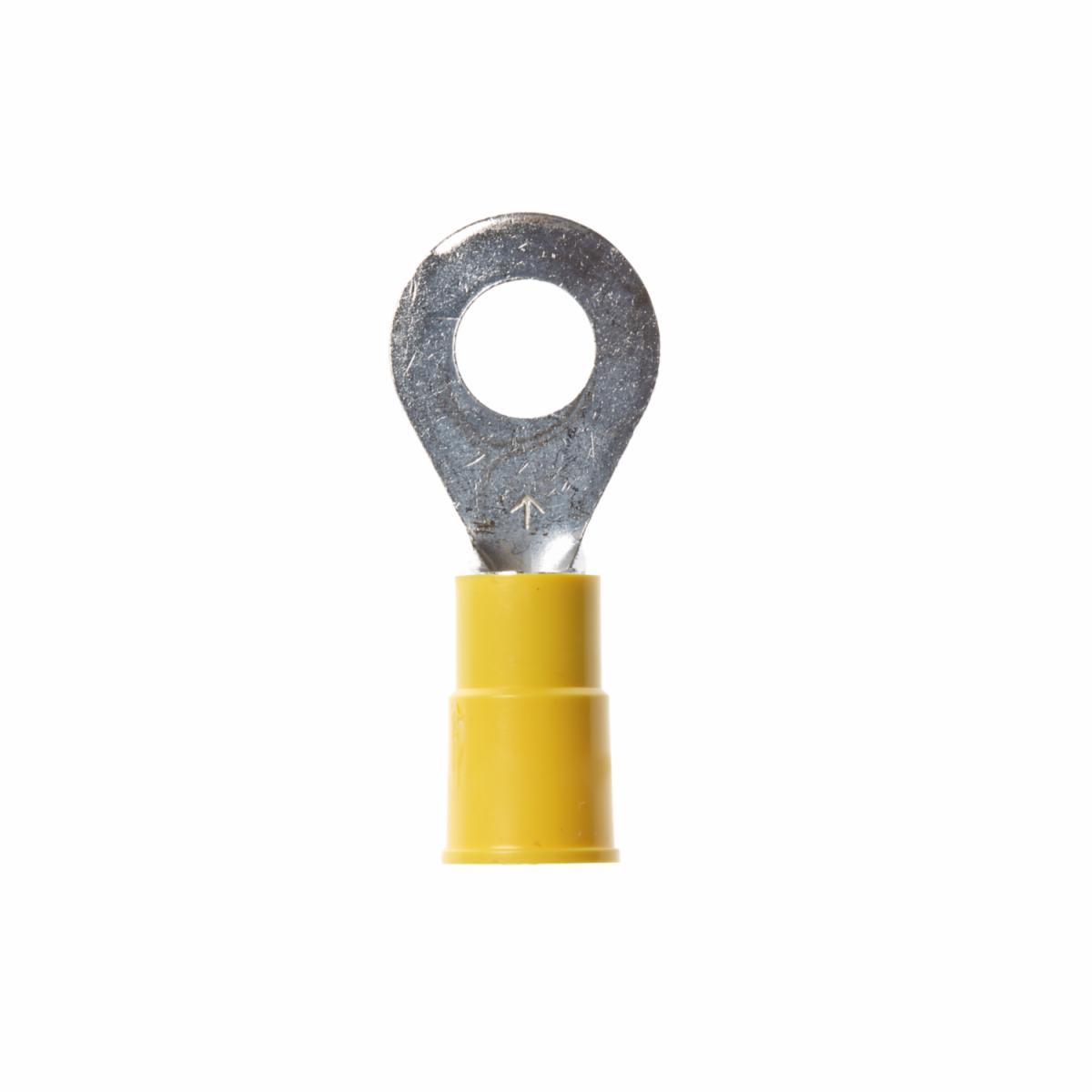

NSI Miniterms R12-14V R Series Ring Terminal, 12 to 10 AWG Conductor, 1.141 in L, Brazed Seam Barrel, Copper, Yellow
- Manufacturer Name: NSi Industries
- MPN: R12-14V
- Brand Name: NSI
- UPC: 662381060167
- FEPN: R12-14V NI
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
NSI Miniterms Ring Terminal, Series: R Series, 12 to 10 AWG Conductor, 1/4 in Stud, 1.141 in Length, Brazed Seam Barrel, 0.1338 in ID x 0.2559 in OD x 0.4921 in L Barrel, 0.472 in W Tongue, 300 VAC, 1-Terminal, Vinyl Insulated, 75 deg C, Copper, Electro-Plated Tin, Yellow
| Barrel Size | : | 0.1338 in ID x 0.2559 in OD x 0.4921 in L |
| Finish | : | Electro-Plated Tin |
| Series | : | R Series |
| Specifications | : | 1-Terminal, Vinyl Insulated |
| Stud Size | : | 1/4 in |
| Temperature Rating | : | 75 deg C |
| Tongue Size | : | 0.472 in W |
| Voltage Rating | : | 300 VAC |
| Conductor Size | : | 12 to 10 AWG |
| Length | : | 1.141 in |
| Barrel Type | : | Brazed Seam |
| Material | : | Copper |
| Color | : | Yellow |
- Basic tongue type ring terminal
- Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed
