EATON BAB2020

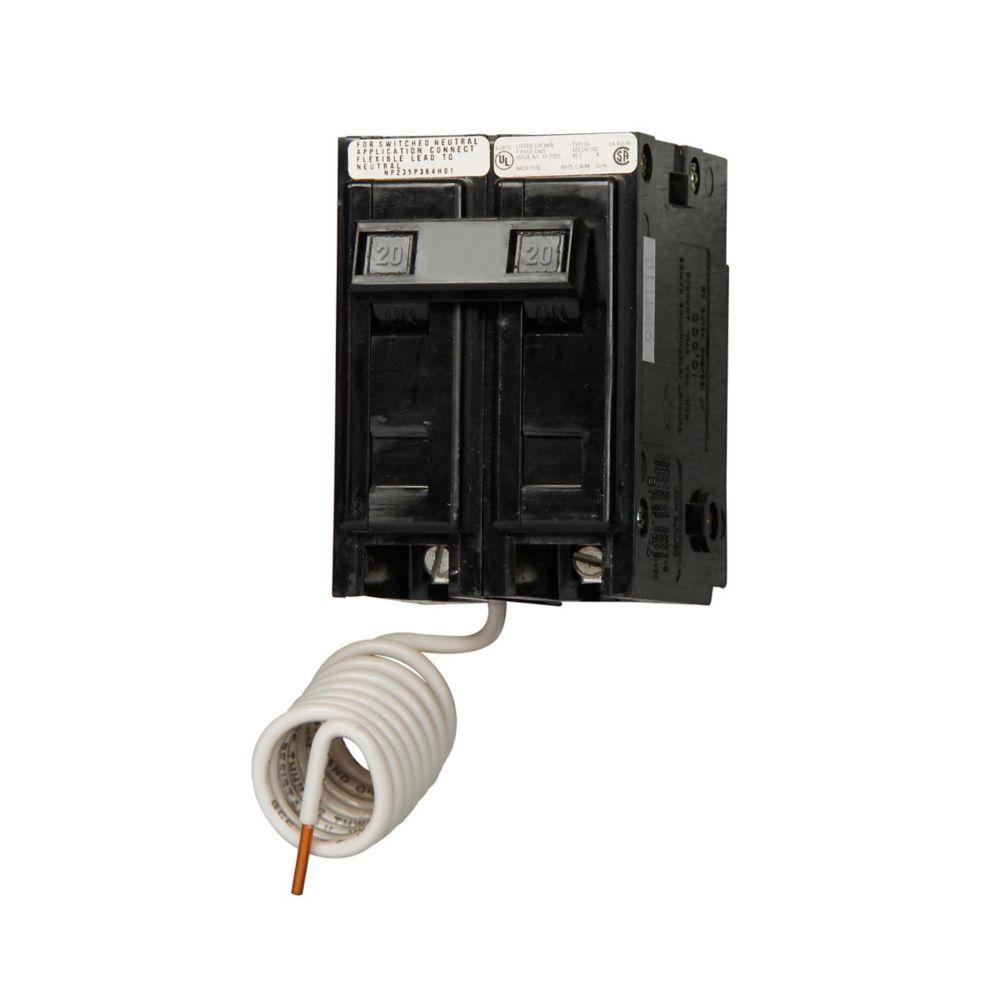

EATON QuickLag® BAB2020 Type BAB Molded Case Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable Thermal Magnetic Trip
- Manufacturer Name: Eaton
- MPN: BAB2020
- Brand Name: EATON
- UPC: 786679302200
- FEPN: BAB2020 EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
EATON bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from 1, 2 or 3-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from bolt-on types BAB, QBHW, HBAX and HBAW.
EATON QuickLag® Miniature Circuit Breaker, Type BAB Molded Case, 120/240 VAC, 20 A, 50/60 Hz Frequency, 10 kA Interrupt, Non-Interchangeable Thermal Magnetic Trip, 2 Pole, 1 ph, Steel Box Lug Connection, 14 to 4 AWG Wire, Bolted-On Mounting, 40 deg C, 2-1/4 in L x 6-1/4 in W x 3-1/2 in H Dimensions
| Connection Type | : | Steel Box Lug |
| Dimensions | : | 2-1/4 in L x 6-1/4 in W x 3-1/2 in H |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Bolted-On |
| Phase | : | 1 |
| Temperature Rating | : | 40 deg C |
| Type | : | Type BAB Molded Case |
| Wire Size | : | 14 to 4 AWG |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 20 A |
| Interrupt Rating | : | 10 kA |
| Number of Poles | : | 2 |
| Trip Type | : | Non-Interchangeable Thermal Magnetic |
- Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
- Field mountable accessories make installation and on-site custom configuration easy
- Compact designs available to minimize panel size
Specification Sheet
