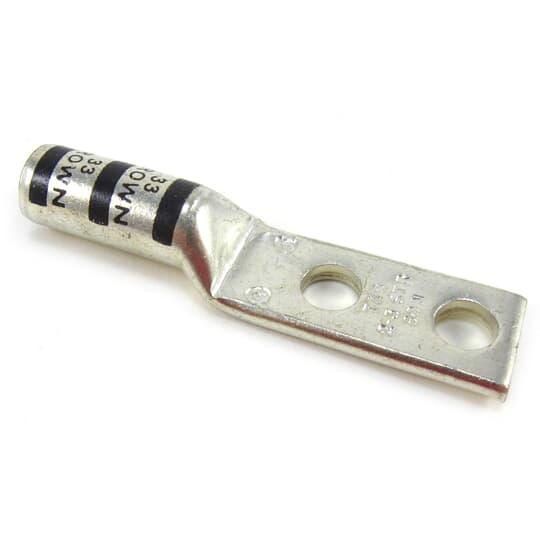

NSI Compression Lug, 2-Hole, Stranded Conductor, 2/0 AWG Conductor, 600 VAC, 1/2 in Stud, 2.99 in L x 0.81 in W x 0.1 in THK Tongue, 4-1/4 in Overall Length, Long Barrel, 0.31 in ID x 0.42 in OD Barrel, 90 deg C, 1/2 in Mounting Hole, Copper, Brown, 0.81 in W
| Barrel Size | : | 0.31 in ID x 0.42 in OD |
| Barrel Type | : | Long |
| Color | : | Brown |
| Dimensions | : | 0.81 in W |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 4-1/4 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 2.99 in L x 0.81 in W x 0.1 in THK |
| Type | : | 2-Hole |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 2/0 AWG |
| Conductor Type | : | Stranded |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- Produced from high conductivity copper tubing
- Allows easy inspection of the termination to assure complete cable insertion
- Marked with die index and color coded blue
- cULus Listed for 35 kV maximum when properly installed
- 1-3/4 in hole spacing
