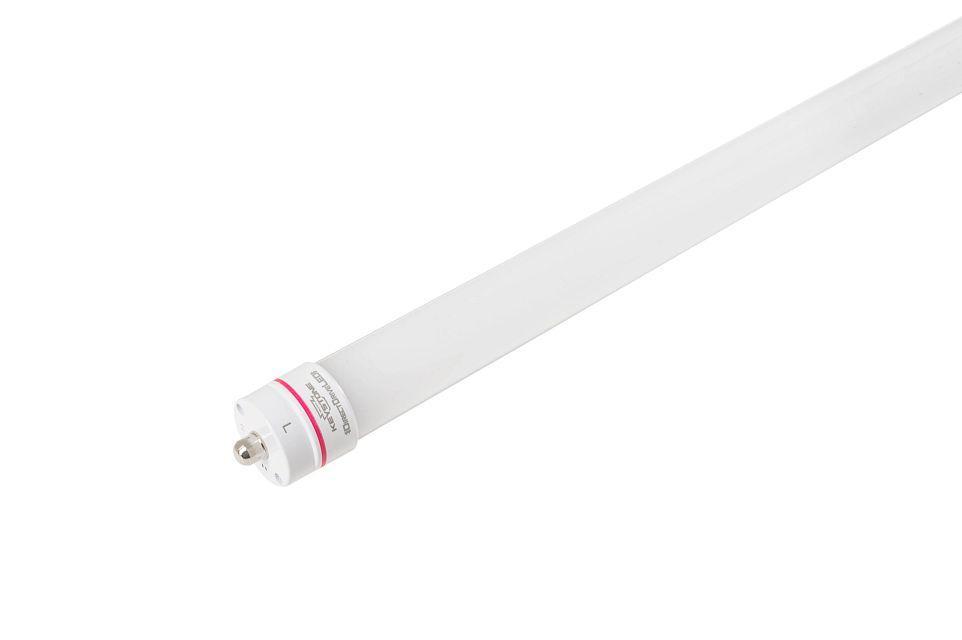

Keystone Technologies KT-LED36T8-96P-840-D-DP
Keystone Technologies KT-LED36T8-96P-840-D-DP 800 Direct Drive High Efficiency LED Lamp, 36 W, T8 Shape, 3800 Lumens
- Manufacturer Name: Keystone Technologies
- MPN: KT-LED36T8-96P-840-D-DP
- Brand Name: Keystone Technologies
- UPC: 890949011751
- FEPN: KT-LED36T8-96P-840-D
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Keystone Technologies LED Lamp, Direct Drive High Efficiency, Series: 800, LED36T8-96P-840-D Designation, 36 W Wattage, 120 to 277 V AC, T8 Shape, 3800 Lumens, 50000 hr Average Life, Cool White, >80 CRI, 4000 K Color Temperature, Frosted Lamp, Instant Start, 120 deg Beam, 93.31 in L x 1.08 in W x 1.31 in H Dimensions
| Average Life | : | 50000 hr |
| Beam Angle | : | 120 deg |
| Color Rendering Index (CRI) | : | >80 |
| Color Temperature | : | 4000 K |
| Color | : | Cool White |
| Designation | : | LED36T8-96P-840-D |
| Dimensions | : | 93.31 in L x 1.08 in W x 1.31 in H |
| Lamp Finish | : | Frosted |
| Series | : | 800 |
| Start Type | : | Instant |
| Type | : | Direct Drive High Efficiency |
| Voltage Rating | : | 120 to 277 V AC |
| Wattage | : | 36 W |
| Lamp Base Type | : | Fa8 Single Pin |
| Lamp Type | : | LED Linear |
| Shape | : | T8 |
| Lumens | : | 3800 Lumens |
- Replacement for conventional T8/T12 8 ft single pin fluorescent lamp
- Environmentally friendly, no mercury used
- Frosted lens eliminates pixelation
- Integral driver, eliminates the need for an external ballast or driver
- Double ended line voltage wiring connect power to each end for simplified installation
- Approximately 50% more energy efficient than standard F96T12 lamps
- Includes 2 C-clips to be installed with the lamps into the fixture ballast cover to prevent any potential undesired lamp twisting or sagging
- Plastic lens with aluminum backing
