NSI WC-R-C
Send Print
  1. pin-int

NSI WC-R-C

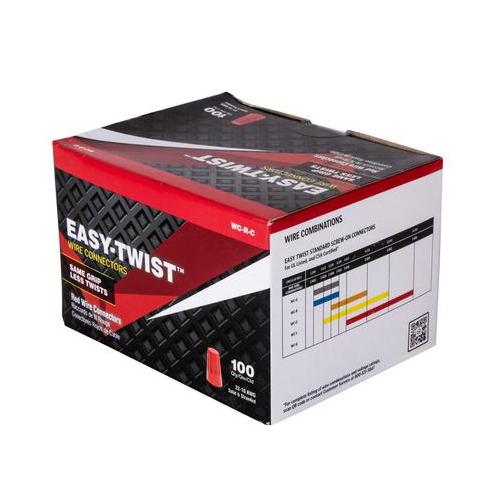

NSI WC-R-C WC Series 1-Conductor Standard Wire Connector, Positive Grip Shell, Square Wire Spring, 22 to 10 AWG Wire Copper Wire, Thermoplastic

  • Manufacturer Name: NSi Industries
  • MPN: WC-R-C
  • Brand Name: NSI
  • UPC: 662381361547
  • FEPN: WC-R-C NI
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

NSI, WC-R-C, Wire Connector, 1-Conductor Standard, Series: WC Series, Positive Grip Shell Style, Square Wire Spring, Copper Wire, 22 to 10 AWG Wire, 600 VAC, 105 deg C, Thermoplastic, Red, 0.339 in ID x 1.04 in H x 0.642 in W Dimensions

Color       :      Red
Dimensions       :      0.339 in ID x 1.04 in H x 0.642 in W
Series       :      WC Series
Temperature Rating       :      105 deg C
Type       :      1-Conductor Standard
Voltage Rating       :      600 VAC
Shell Style       :      Positive Grip
Shell Style       :      Twist-On
Spring Type       :      Square Wire
Wire Size       :      22 to 10 AWG
Wire Type       :      Copper
Material       :      Thermoplastic
  • Easy-Twist™ standard twist-on wire connectors are flame-retardant UL 94V-2 thermoplastic shell that provides excellent electrical insulation
  • Their fixed, precise square wire spring provides secure gripping of conductors
  • Sure-Grip® ribs improve gripping comfort
  • Compact design ensures proper installation especially in tight spaces
  • Threaded funnel entry guides the wires into the connector easily
  • 1000 VAC maximum in fixtures and signs
  • Conical Spring The fixed zinc-plated square spring has a precise conical shape that grips in fewer turns and can dead end a single wire
  • Ergonomic Grip Entire connector features a ribbed texture for easier twisting and a more secure gripping surface to increase your productivity
  • Compact Design Easy to install in tight areas, the extra-thick cap, deep-skirt entry and threaded funnel make these connectors more reliable and protect against flashover and shorts
  • Labor Saving Save time and effort with professional-quality connectors that install in half the time of a typical wire connector and don't require pre-twisting of wires
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_WC-B-B_Installation_Manual.pdf
  • pdfTechnical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NSI_WC-B-B_Technical_Bulletin.pdf
