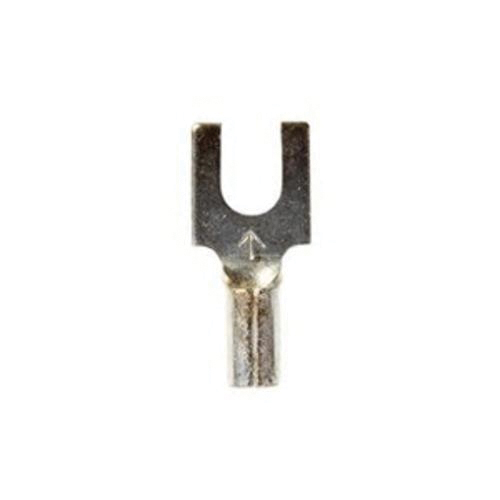

Scotchlok™ 7100184972
Scotchlok™ 7100184972 Non-Insulated Locking Fork, 22 to 18 AWG Conductor, 0.68 in L, Brazed Barrel, ETP Copper, Red
- Manufacturer Name: 3M
- MPN: 7100184972
- Brand Name: Scotchlok™
- UPC: 054007137337
- FEPN: M18-6FLK 3M
- Min Order Qty: 1
- Quantity Interval: 1000
-
Inventory Availability
-
Retail Price:
Scotchlok™, 7100184972, Locking Fork, Non-Insulated, Non-Insulated Conductor, 22 to 18 AWG Conductor, #6 Stud, 0.68 in Length, Brazed Barrel, 0.07 in ID x 0.25 in L Barrel, 600 to 1000 VAC, 347 deg F, ETP Copper, Red, 0.25 in W x 0.03 in THK Dimensions
| Barrel Size | : | 0.07 in ID x 0.25 in L |
| Conductor Type | : | Non-Insulated |
| Dimensions | : | 0.25 in W x 0.03 in THK |
| Stud Size | : | #6 |
| Temperature Rating | : | 347 deg F |
| Type | : | Locking |
| Voltage Rating | : | 600 to 1000 VAC |
| Conductor Size | : | 22 to 18 AWG |
| Length | : | 0.68 in |
| Barrel Type | : | Brazed |
| Material | : | ETP Copper |
| Color | : | Red |
- Beveled mouth offers easy insertion of wires
- 600V-rated for building wire and 1000v for signs, fixtures or luminaires
- Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
- Spring-like tongue firmly fits around the stud
- Electrolytic copper construction offers good conductivity
- Withstands a maximum temperature of 347 deg f (175 deg c) for bare terminals
