3M™ 7000132452

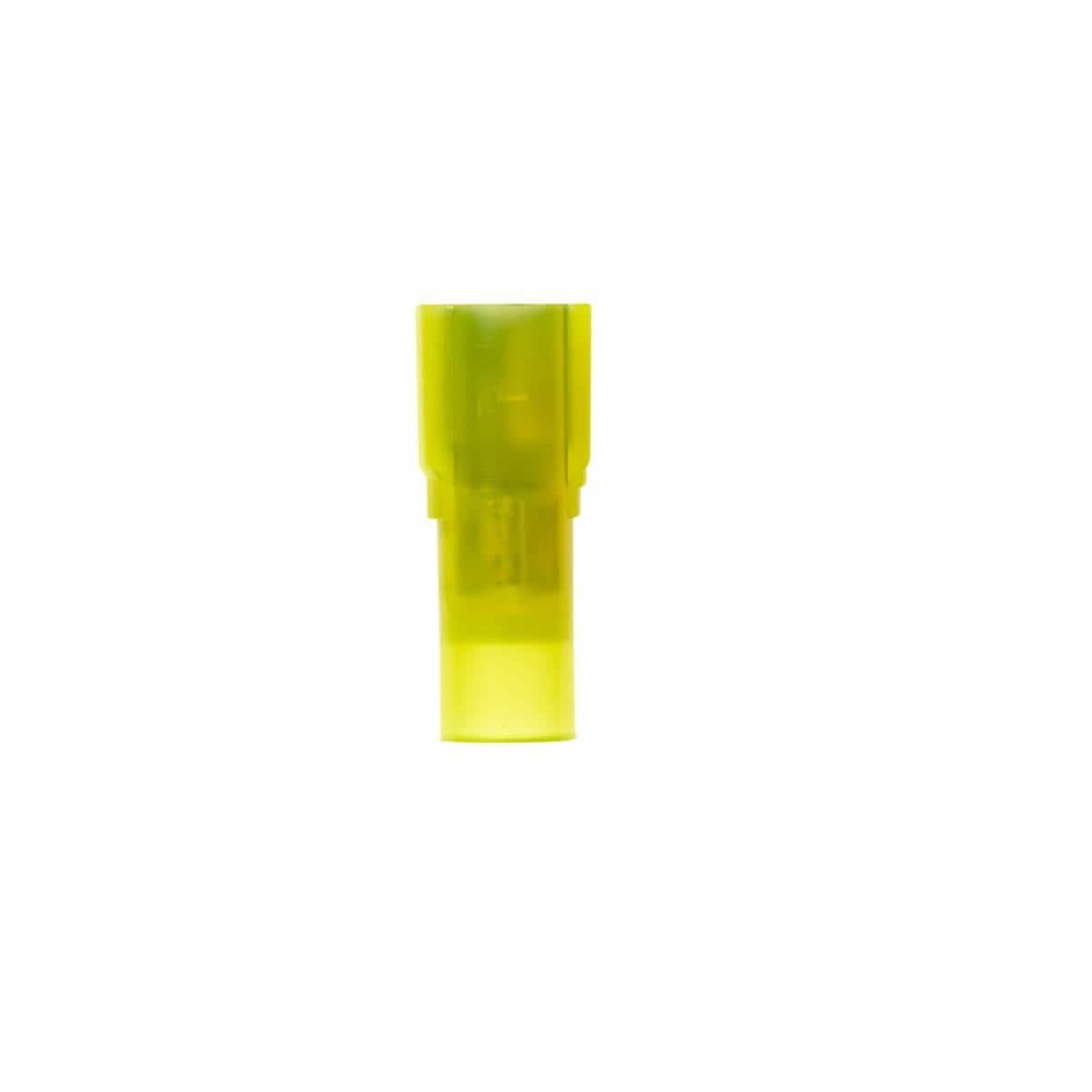

3M™ 7000132452 Insulated Disconnect Terminal, 12 to 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, ETP Copper, Yellow, Insulated
- Manufacturer Name: 3M
- MPN: 7000132452
- Brand Name: 3M™
- UPC: 054007695783
- FEPN: MVI10-250DFK 3M
- Min Order Qty: 1
- Quantity Interval: 500
-
Inventory Availability
-
Retail Price:
3M™, 7000132452, Disconnect Terminal, Insulated, 12 to 10 AWG Conductor, 1/4 in Tab, 0.128 in ID x 0.25 in L Interlocking Barrel, 600 VAC, Specifications: 0.95 in OAL, -40 to 221 deg F, ETP Copper, Yellow, 0.032 in THK Dimensions, Insulated: Insulated
| Dimensions | : | 0.032 in THK |
| Specifications | : | 0.95 in OAL |
| Temperature Rating | : | -40 to 221 deg F |
| Type | : | Insulated Standard |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 12 to 10 AWG |
| Tab Size | : | 1/4 in |
| Barrel Type | : | 0.128 in ID x 0.25 in L Interlocking |
| Material | : | ETP Copper |
| Color | : | Yellow |
| Insulated | : | Insulated |
- Attached to mating part by tongue of female part slipping over male tab
- Its durable brass construction offers good conductivity and a tin plated finish resists corrosion
- Rated 600V for building wire and 1000v for signs, fixtures or luminaires
- Vinyl-insulated, butted seam with an interlocking barrel and funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Dents and rolled edges of this female disconnect terminal offer excellent holding force
- Mates with 0.25-in wide male tab
- Withstands a temperature range of -40 to 221 deg f (-40 to 105 deg c)

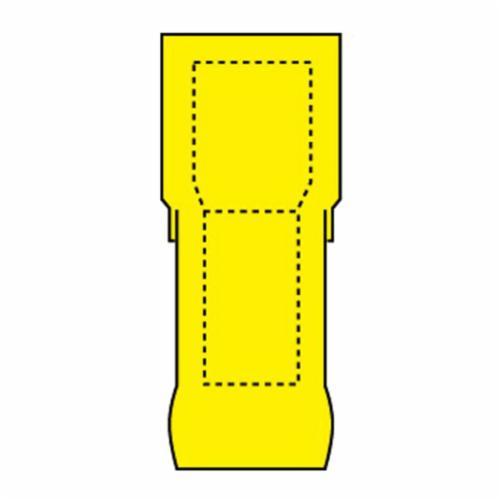

Line Drawing
