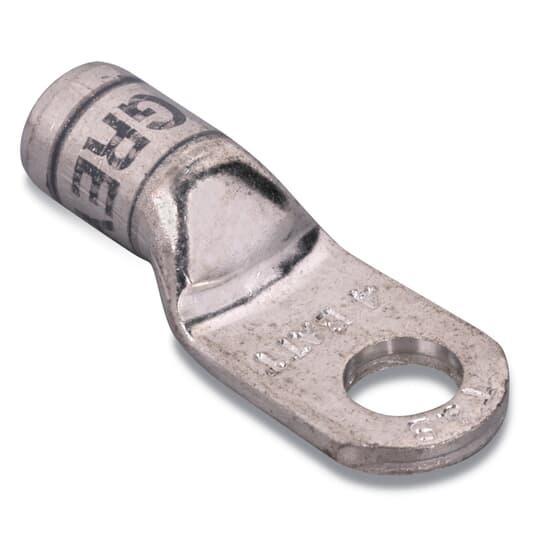

NSI Compression Lug, 1-Hole, Stranded Conductor, 3/0 AWG Conductor, 600 VAC, 1/2 in Stud, 1.06 in L x 0.9 in W x 0.13 in THK Tongue, 2.36 in Overall Length, Short Barrel, 0.49 in ID x 0.62 in OD Barrel, 90 deg C, 1/2 in Mounting Hole, Copper, Orange, 0.9 in W
| Barrel Size | : | 0.49 in ID x 0.62 in OD |
| Barrel Type | : | Short |
| Color | : | Orange |
| Dimensions | : | 0.9 in W |
| Mounting Hole Size | : | 1/2 in |
| Overall Length | : | 2.36 in |
| Temperature Rating | : | 90 deg C |
| Tongue Size | : | 1.06 in L x 0.9 in W x 0.13 in THK |
| Type | : | 1-Hole |
| Voltage Rating | : | 600 VAC |
| Conductor Size | : | 3/0 AWG |
| Conductor Type | : | Stranded |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- Short barrel copper compression lugs with peep hole is a type of copper compression connector that is produced from high conductivity copper tubing
- They are tin plated to provide corrosion resistance and are marked with die index and color coded for easy reference
- Listed for 35 kV maximum when properly installed
- Peep hole allows easy inspection of the termination to assure complete cable insertion
