The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.

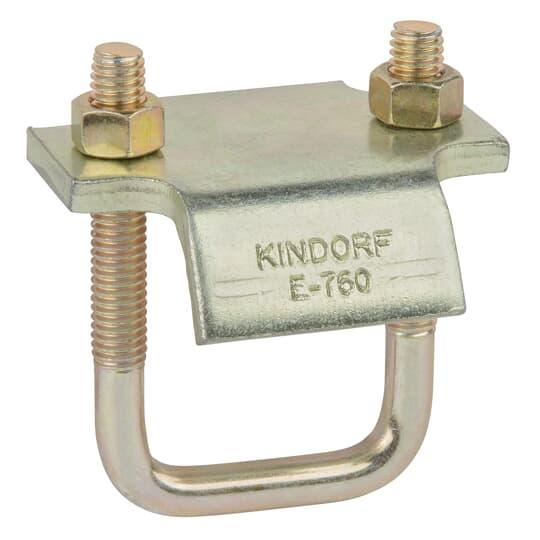

Kindorf® Beam Clamp, 3/4 in Flange Thickness, 2200 lb, Right Angle Under Flange Channel Position, For Use With: B-900, B-905, B-906 and B-907 Series Structural Channel, Steel, Galv-Krom®/Standard, 3-1/4 in L x 3 in W
| Channel Position | : | Right Angle Under Flange |
| Dimensions | : | 3-1/4 in L x 3 in W |
| Finish | : | Galv-Krom® |
| Suitable For Use With | : | B900, B905, B906 and B907 Series Channel |
| Flange Thickness | : | 3/4 in |
| Load Capacity | : | 2200 lb |
| Material | : | Steel |
- Hardened points bite into beam flange, fits all I-beams where edge of beam flange does not exceed 0.8 in THK
