The Kindorf® channel system is designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and materials. The 1 1/2" dimension in the channel, hole spacing and fittings means all parts fit together all the time. This modular system provides maximum flexibility in field applications and results is labor savings and reduced material waste.

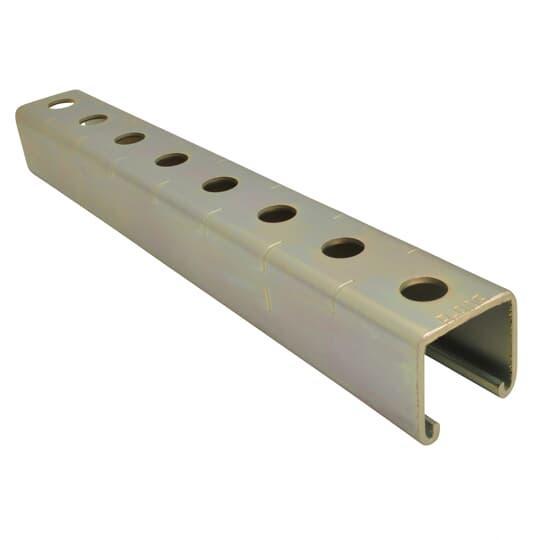

Kindorf®, B-907-10-SS, Metal Channel, Punched, Series: B Series, 1-1/2 in Width, 3/4 in Depth, 10 ft Length, 14 ga Thickness, 9/16 in Slot, 1-1/2 in Slot Spacing, 304 Stainless Steel, Domestic

• Designed so that the maximum number of support and framing applications can be constructed with a minimum amount of labor and pieces
• The 1-1/2 in dimension in the channel, hole spacing and fittings means all parts fit together, no matter where they are used or at what angle
• The modular dimension provides maximum flexibility in field applications and results in saving inventory and labor dollars
• Even though Kindorf® channel is slightly smaller in dimensions it supports the same weight as 1-5/8 in channel
• The Kindorf® system is designed so that most accessories are compatible with 1-5/8 in strut
• 98% of 1-5/8 in accessories are interchangeable in Kindorf® channel
• 3/4 in bolt hole from end

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Kindorf_B-900-10_Specification_Sheet.pdf
