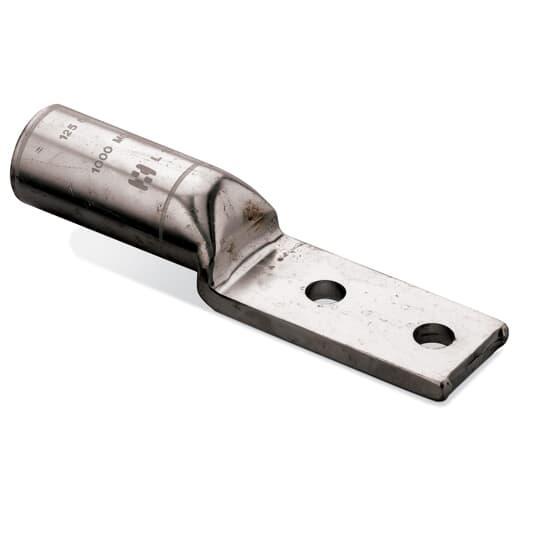

Homac® L-2/0-N
Homac® L-2/0-N 2-Hole Compression Lug Connector, 2/0 AWG, 70 sq-mm Copper/Stranded Conductor, Die Code: 45, 13, 164, 241, 1/2 in Stud, Copper
- Manufacturer Name: ABB
- MPN: L-2/0-N
- Brand Name: Homac®
- UPC: 783786738779
- FEPN: L 2/0 N TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Homac® Compression Lug Connector, 2-Hole, Copper/Stranded Conductor, 2/0 AWG, 70 sq-mm Conductor, Die Code: 45, 13, 164, 241, 1/2 in Stud, Straight Tongue, 3 in L x 55/64 in W x 7/64 in THK Tongue, 5-1/32 in Overall Length, 1-1/2 in L Barrel, 1-3/4 in Hole Spacing, 9/16 in Dia Mounting Hole, Copper
| Barrel Size | : | 1-1/2 in L |
| Mounting Hole Size | : | 9/16 in Dia |
| Overall Length | : | 5-1/32 in |
| Specifications | : | 1-3/4 in Hole Spacing |
| Tongue Size | : | 3 in L x 55/64 in W x 7/64 in THK |
| Tongue Type | : | Straight |
| Type | : | 2-Hole |
| Conductor Size | : | 2/0 AWG, 70 sq-mm |
| Conductor Type | : | Copper/Stranded |
| Die Code | : | 45, 13, 164, 241 |
| Stud Size | : | 1/2 in |
| Material | : | Copper |
- TiN coated to resist corrosion
- Produced from seamless electrolytic copper tubing which provides high conductivity and minimizes voltage drop
- Marked with a catalog number, conductor sizes and dies references
- Two hole NEMA pad
