Blackburn® CSB-250-3

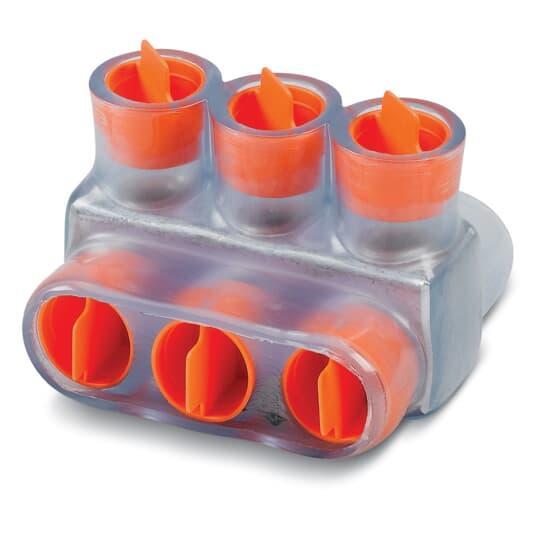

Homac® CSB-250-3 2-Way 3-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
- Manufacturer Name: ABB
- MPN: CSB-250-3
- Brand Name: Blackburn®
- UPC: 783786714711
- FEPN: CSB 250-3 TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Homac® is a complete line of underground and substation connectors and is recognized as an industry leader for its Flood-Seal® technologies and custom solutions.
Homac® Multi-Tap Cable Block, 2-Way 3-Outlet Dual Rated Encapsulated, Series: CSB, Stranded Aluminum/Copper Conductor, 600 V AC, Specifications: 5/16 in Hex Screw, 6 AWG to 250 kcmil Wire, Clear PVC Insulation, 90 deg C, Aluminum, 3.09 in L x 2.64 in W x 2.13 in H
| Dimensions | : | 3.09 in L x 2.64 in W x 2.13 in H |
| Series | : | CSB |
| Specifications | : | 5/16 in Hex Screw, 6 AWG to 250 kcmil Wire, Clear PVC Insulation |
| Temperature Rating | : | 90 deg C |
| Type | : | 2-Way 3-Outlet Dual Rated Encapsulated |
| Voltage Rating | : | 600 V AC |
| Conductor Type | : | Stranded Aluminum/Copper |
| Material | : | Aluminum |
- Versatile design
- Clear PVC insulation and safe and time-saving installation with no taping required
- Quick and easy to install in the field
- Dual rated for use with aluminum and copper conductors
- Above ground pedestal connectors and covers
- Wide range of cable sizes and number of outlets available in 1-way configurations
