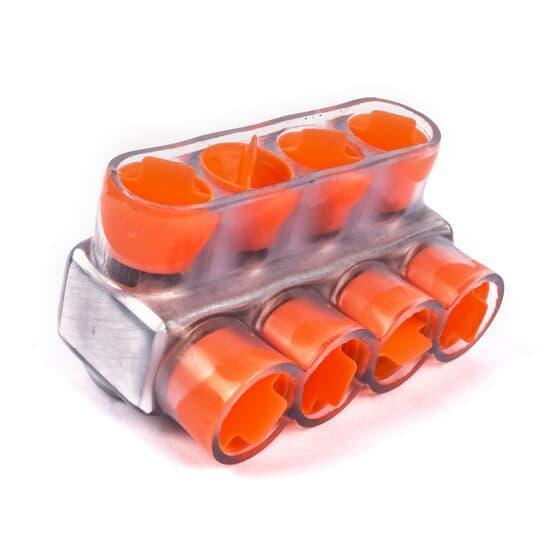

Blackburn® CSB-250-4-S
Homac® CSB-250-4-S 1-Way 4-Outlet Dual Rated Encapsulated Multi-Tap Cable Block, Stranded Aluminum/Copper Conductor, Aluminum
- Manufacturer Name: ABB
- MPN: CSB-250-4-S
- Brand Name: Blackburn®
- UPC: 783786845521
- FEPN: CSB 250-4 S TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Homac® is a complete line-of underground and substation connectors and is recognized as an industry leader for its Flood-Seal® technologies and custom solutions.
Homac® Multi-Tap Cable Block, 1-Way 4-Outlet Dual Rated Encapsulated, Series: CSB, Stranded Aluminum/Copper Conductor, 600 V AC, Specifications: 5/16 in Hex Screw, 6 AWG to 250 kcmil Wire, Clear PVC Insulation, Aluminum, 4.06 in L x 2.13 in W x 2.13 in H
| Dimensions | : | 4.06 in L x 2.13 in W x 2.13 in H |
| Series | : | CSB |
| Specifications | : | 5/16 in Hex Screw, 6 AWG to 250 kcmil Wire, Clear PVC Insulation |
| Type | : | 1-Way 4-Outlet Dual Rated Encapsulated |
| Voltage Rating | : | 600 V AC |
| Conductor Type | : | Stranded Aluminum/Copper |
| Material | : | Aluminum |
- Versatile design
- Clear PVC insulation and safe and time-saving installation with no taping required
- Quick and easy-to install in the field
- Dual-rated for use with aluminum and copper conductors
- Above ground pedestal connectors and covers
- Wide range of cable sizes and number of outlets available in 1-way configurations
Owners/User Manual
