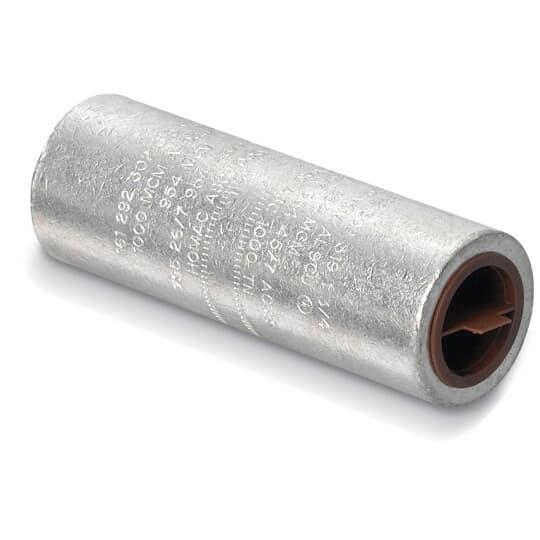

Homac® ASC-350-TN
Blackburn® ASC-350-TN Straight Cable Splice, 350 to 366.3 kcmil ACSR/Copper/Compact Conductor, Die Code: 96, 299, 655, 1-1/8-1, 13A, 3-3/8 in L, Aluminum
- Manufacturer Name: ABB
- MPN: ASC-350-TN
- Brand Name: Homac®
- UPC: 783786695973
- FEPN: ASC 350 TN TB
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Blackburn® Cable Splice, Straight, ACSR/Copper/Compact Conductor, 350 to 366.3 kcmil Conductor, Die Code: 96, 299, 655, 1-1/8-1, 13A, 3-3/8 in Length, Compression Connector, Specifications: 2-Conductors, 1-39/64 in L Barrel, Aluminum, Tin Plated, 1-1/8 in Dia Dimensions
| Connector Type | : | Compression |
| Dimensions | : | 1-1/8 in Dia |
| Finish | : | Tin Plated |
| Specifications | : | 2-Conductors, 1-39/64 in L Barrel |
| Type | : | Straight |
| Conductor Size | : | 350 to 366.3 kcmil |
| Conductor Type | : | ACSR/Copper/Compact |
| Die Code | : | 96, 299, 655, 1-1/8-1, 13A |
| Length | : | 3-3/8 in |
| Material | : | Aluminum |
- Pre-filled with oxide inhibitor
- 336.4 kcmil to 350 kcmil aluminum/copper, 400 kcmil compact, 185 sq-mm, 266.8 to 336.4 kcmil ACSR
- Dual-rated for aluminum and copper conductors
