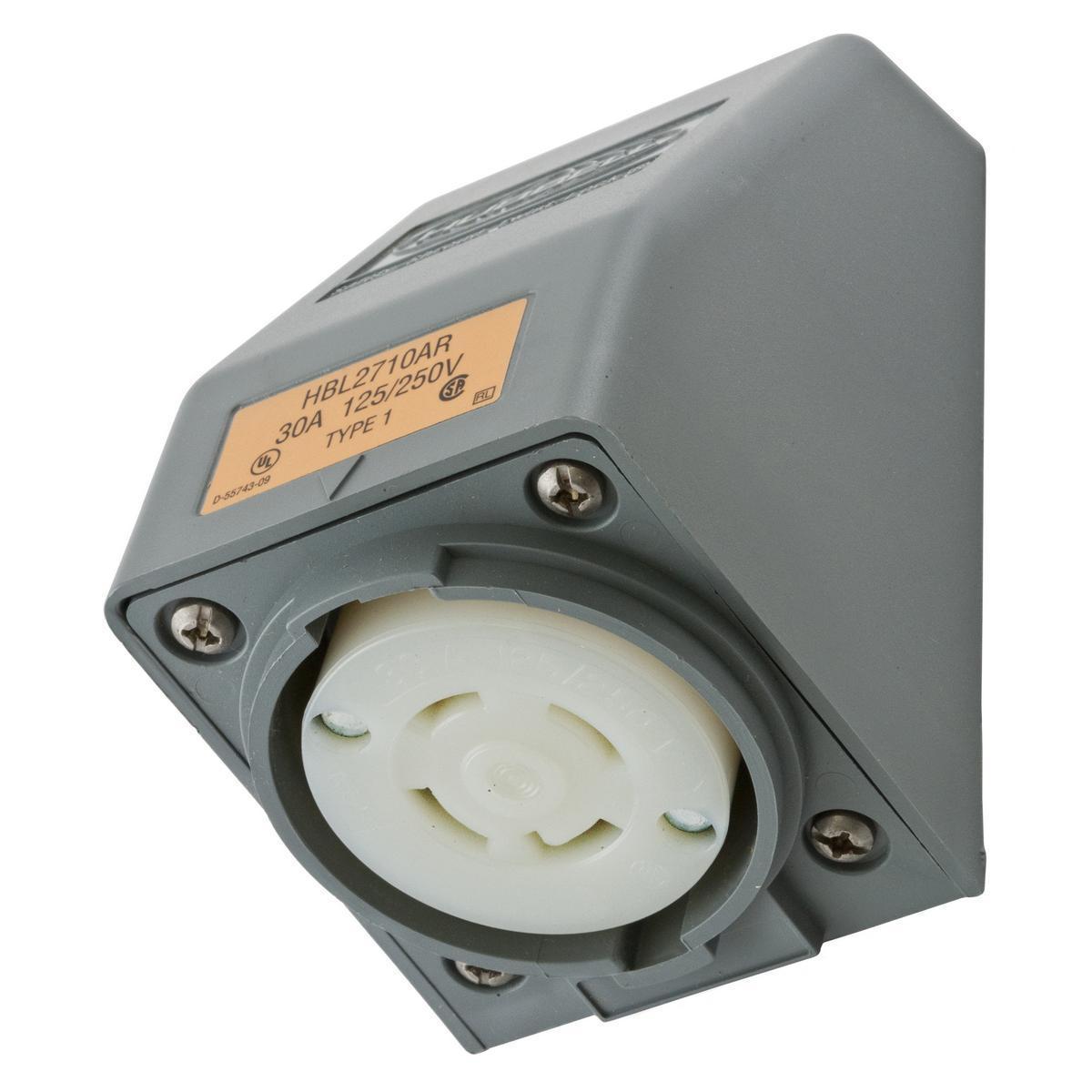

Wiring Device-Kellems HBL2710AR
Wiring Device-Kellems HBL2710AR 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Gray/White
- Manufacturer Name: Hubbell
- MPN: HBL2710AR
- Brand Name: Wiring Device-Kellems
- UPC: 783585234649
- FEPN: HBL2710AR HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems, HBL2710AR, Locking Receptacle, 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, L14-30R NEMA Rating, Industrial Grade, IP20 Enclosure, -40 to 75 deg C, Screw Terminal, Valox™, Gray/White, 4.77 x 2.85 x 3.14 in Dimensions
| Dimensions | : | 4.77 x 2.85 x 3.14 in |
| Enclosure | : | IP20 |
| Grade | : | Industrial |
| Horsepower | : | 2 hp |
| Material | : | Valox™ |
| NEMA Rating | : | L14-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | 1-Phase 1-Gang Angled Grounding Heavy Duty Standard Single Screw Mount |
| Voltage Rating | : | 125/250 VAC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Color | : | Gray/White |
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments
- 12 to 8 AWG wire
