Eaton's CH 3/4-inch loadcenters enclose CH circuit breakers for power distribution and circuit protection in residential and light commercial applications. Also called a breaker box, electrical box or even a fuse box, the main function is to take electricity supplied by the utility and distribute it throughout the home to feed lights and receptacles. Covers are typically packaged separately and available as surface or flush mount.

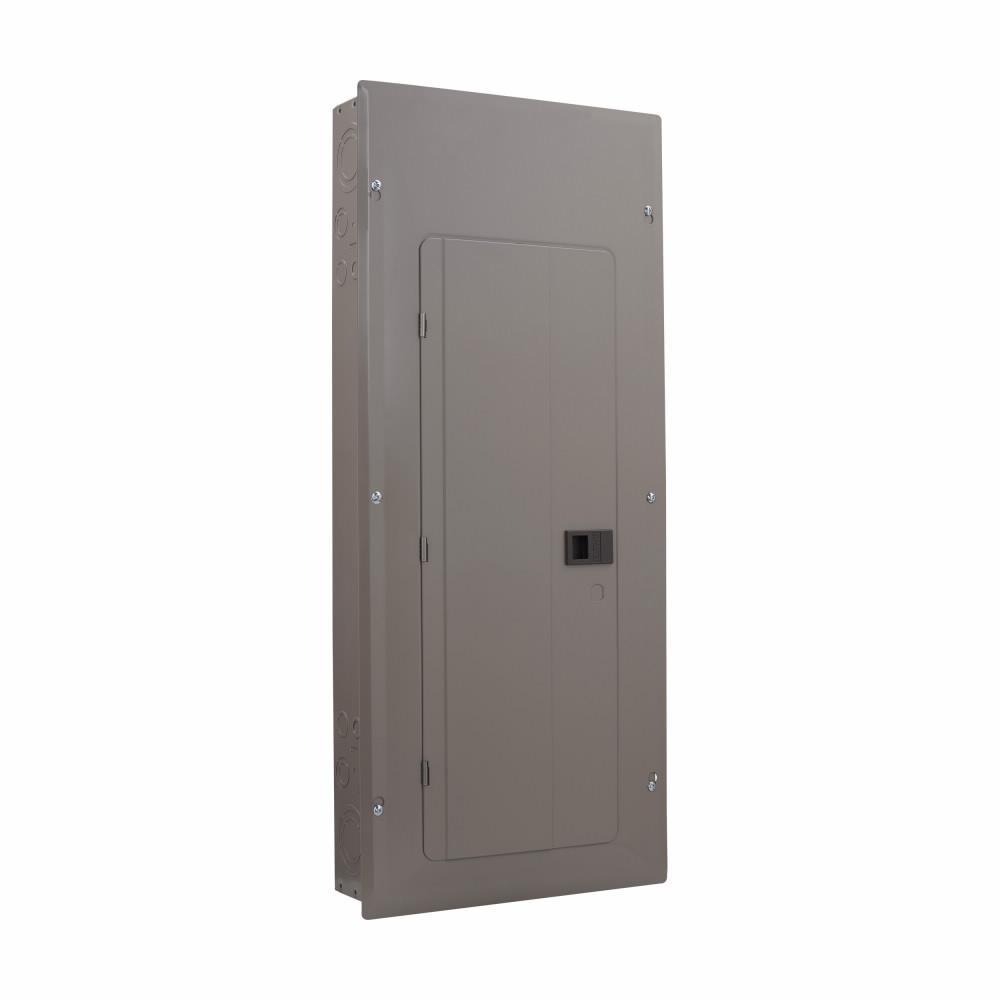

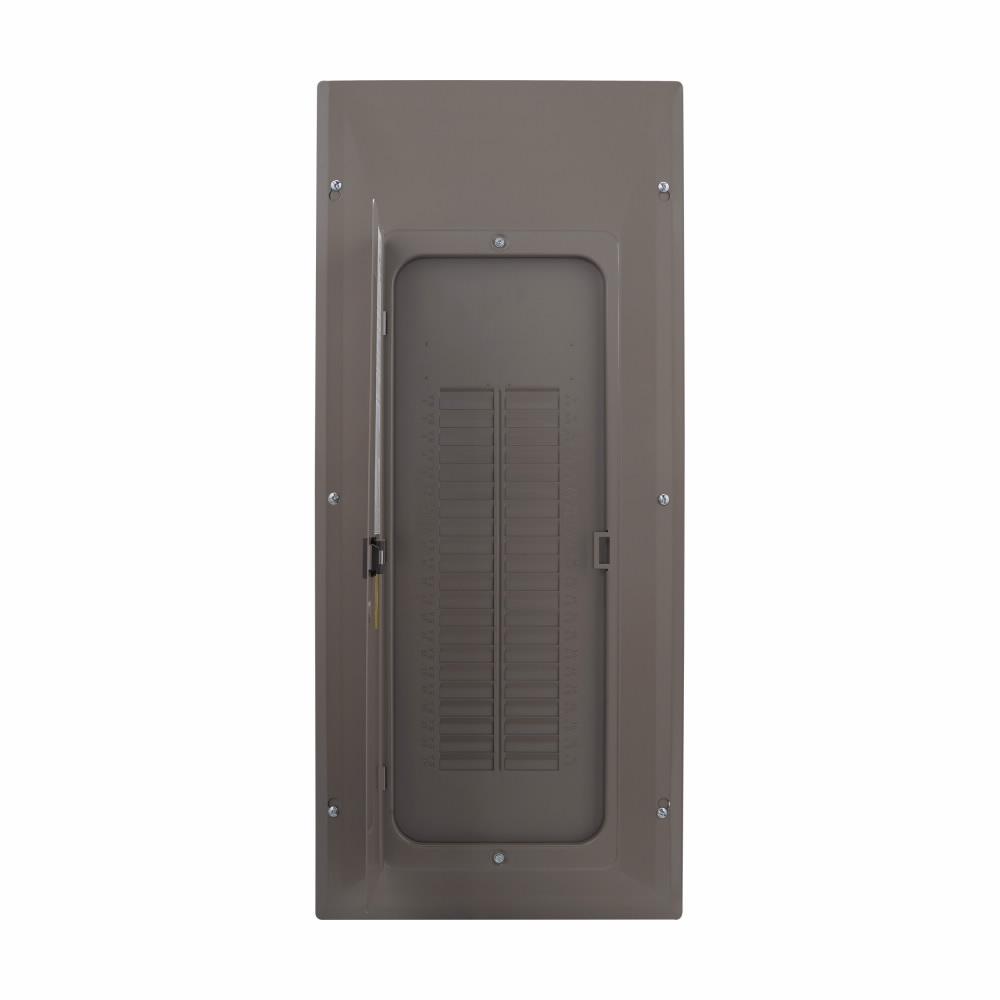

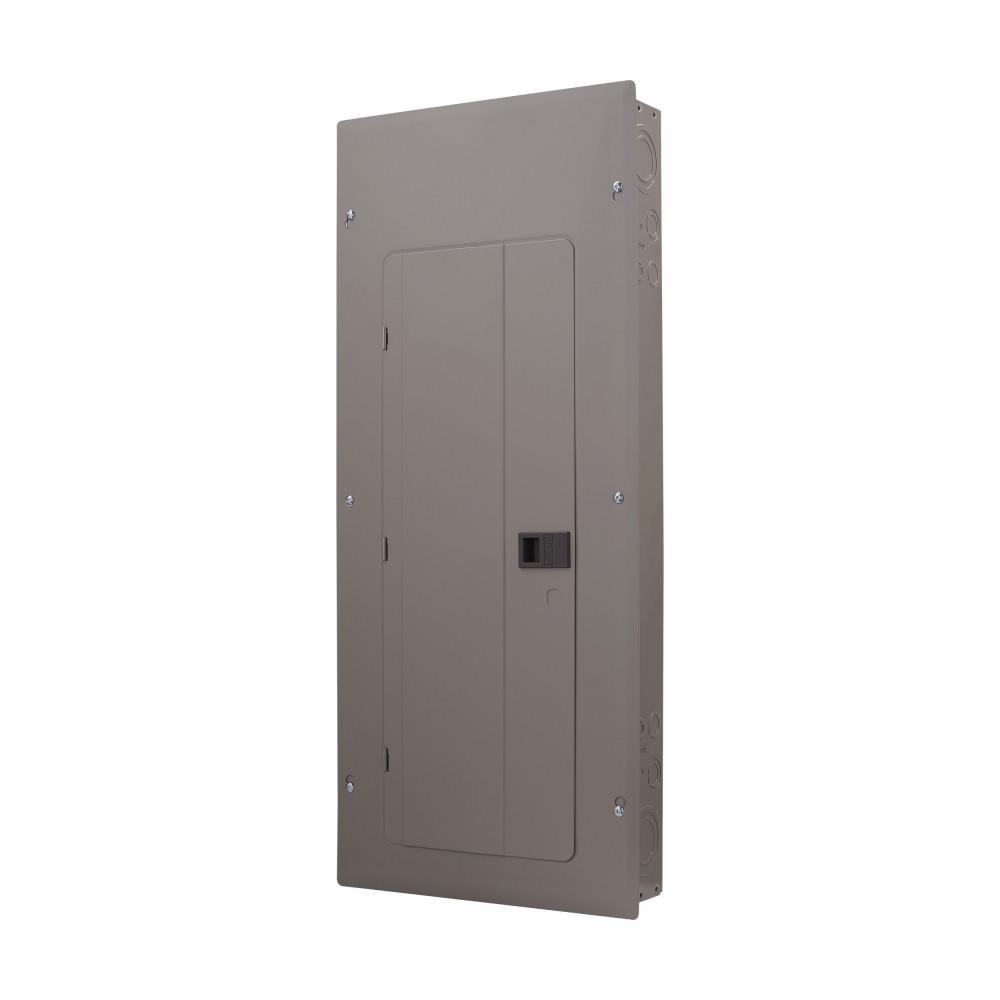

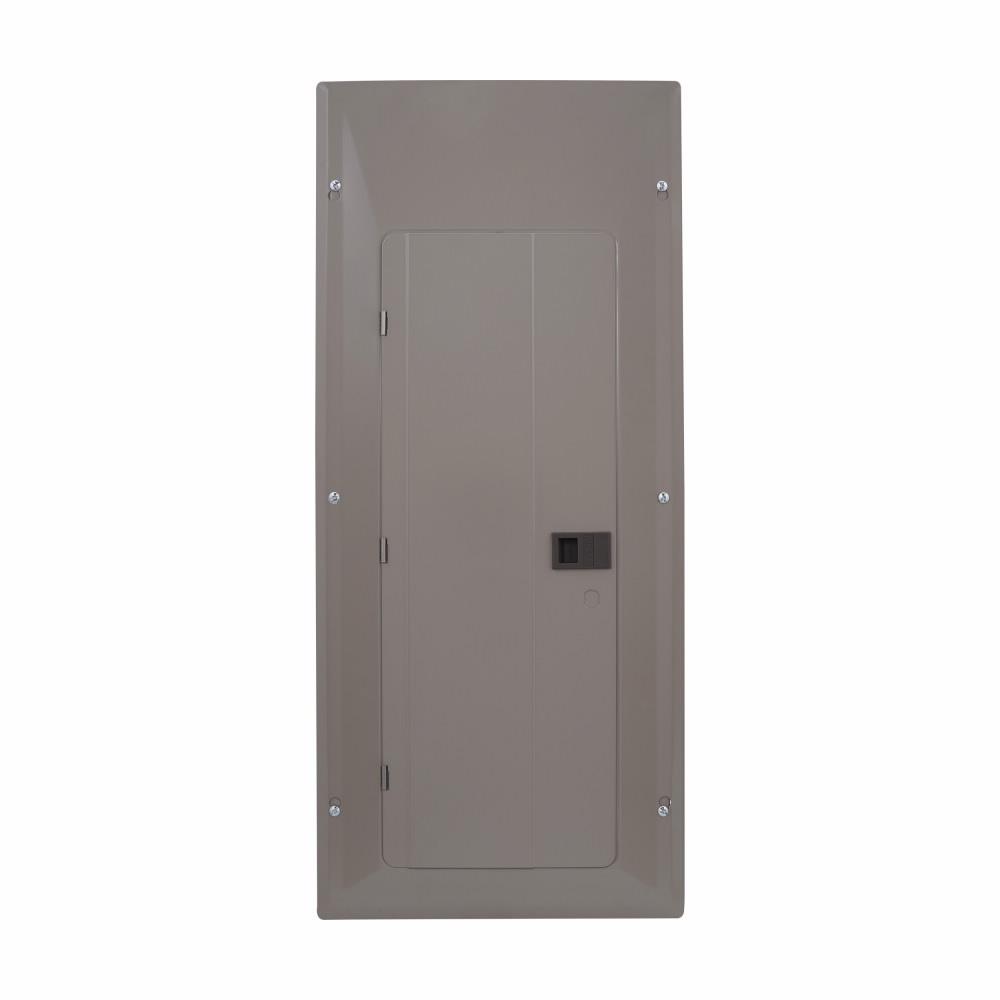

EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt, 84 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X6 Enclosure Box, Sheet Steel Housing, 34.12 in L x 14.31 in W x 3.88 in H

• Quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
• Type CH circuit breakers trip to the Off position eliminating nuisance callbacks
• The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4699c4093f200f15c8feec0c1d17577c692ad449e7fa8bead4e77755afaf41b2.pdf
• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_BR40SPAST_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/EATON_CHP42L225X6_Specification_Sheet.pdf
