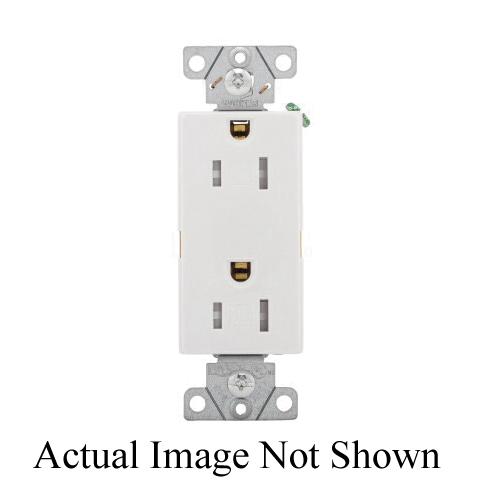

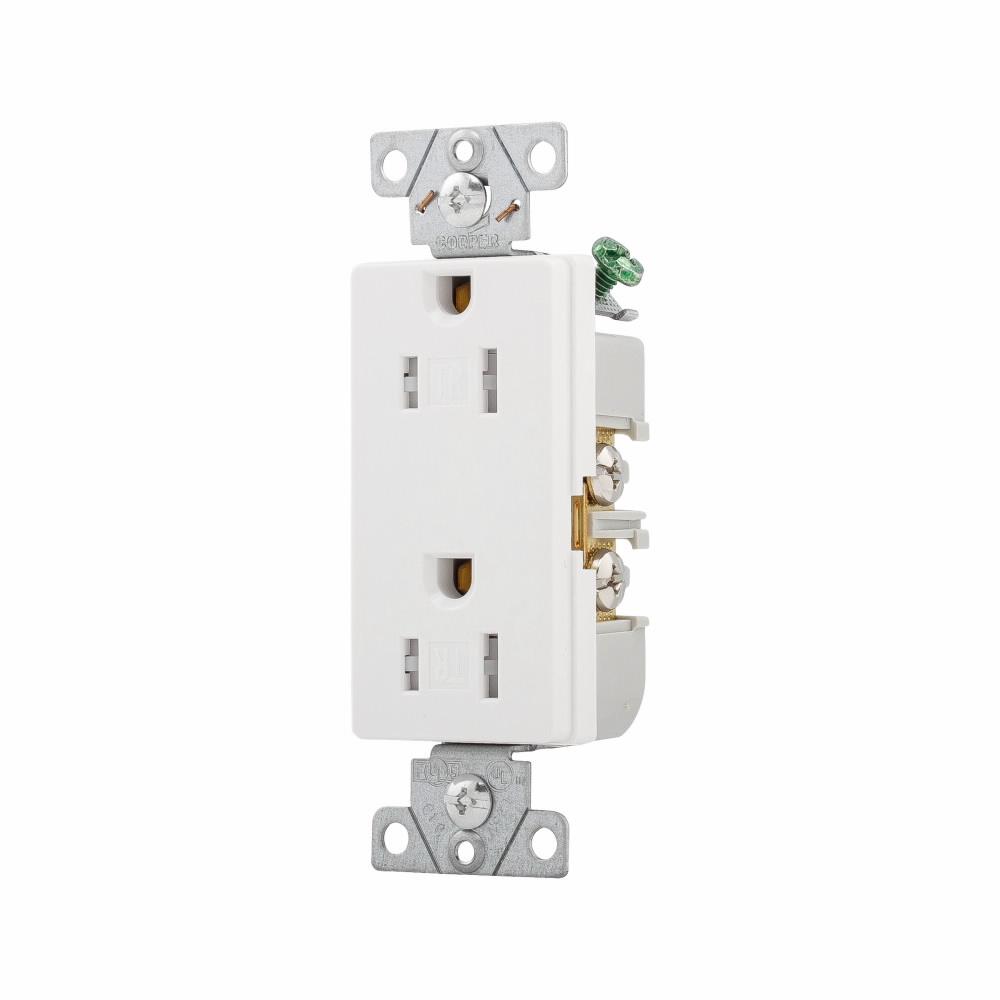

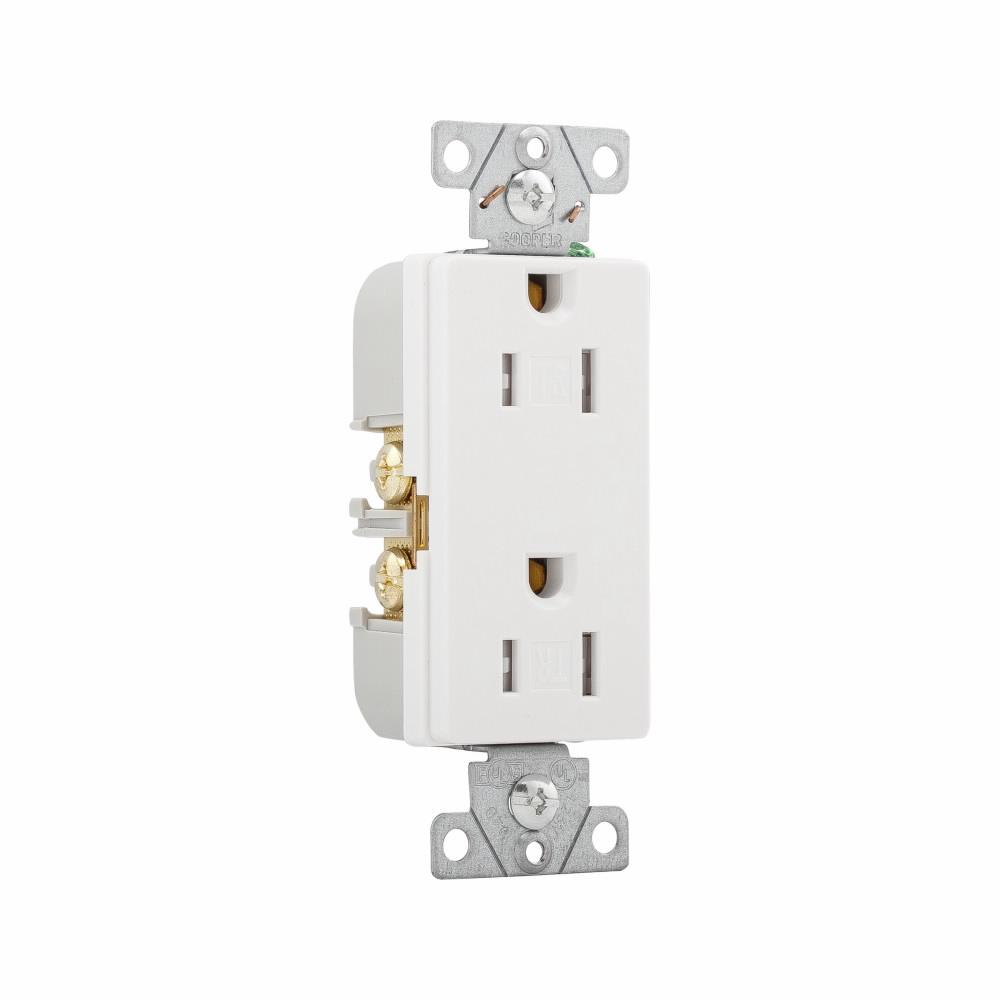

EATON TR6252W-BOX
EATON Arrow Hart™ Eaton Wiring Devices TR6252W-BOX TR6252 Decorator Duplex Tamper-Resistant Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White
- Manufacturer Name: Eaton
- MPN: TR6252W-BOX
- Brand Name: EATON
- UPC: 032664668463
- FEPN: TR6252W-BOX EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Commercial specification grade straight blade receptacles - tamper-resistant 15 A, 125 VAC, NEMA 5-15R. provides compliance with 2011 NEC® Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. "TR" designations provide visual identification.
EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Decorator Duplex Tamper-Resistant, Series: TR6252, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, White, 4.19 in H x 1.1 in D Dimensions
| Dimensions | : | 4.19 in H x 1.1 in D |
| Grade | : | Commercial |
| Material | : | Nylon/PVC |
| NEMA Rating | : | NEMA 5-15R |
| Series | : | TR6252 |
| Temperature Rating | : | -4 to 158 deg F |
| Terminal Type | : | Screw |
| Type | : | Decorator Duplex Tamper-Resistant |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
- Durable impact and chemical-resistant nylon face is virtually unbreakable (excluding 6252 and 6352)
- Terminal screws are backed out and ready-to wire
- Extra long and extra wide mounting straps
- Terminals accept up to 10 AWG solid or stranded wire
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.11 that states that all receptacles installed in dwelling units must be tamper-resistant
- Nylon face, PVC base
- Flush mounting
- 14 to 10 AWG wire terminal
