Lithonia Lighting® CSS L48 ALO3 MVOLT SWW3 80CRI
Send Print
  1. pin-int

Lithonia Lighting® CSS L48 ALO3 MVOLT SWW3 80CRI

Lithonia Lighting® Contractor Select™ CSS L48 ALO3 MVOLT SWW3 80CRI CSS Light Duty Dimmable Strip Light, (2) LED Lamp, 55/72/88 W Fixture, 120 to 277 V, Baked Enamel Housing

  • Manufacturer Name: Acuity Brands
  • MPN: CSS L48 ALO3 MVOLT SWW3 80CRI
  • Brand Name: Lithonia Lighting®
  • UPC: 193048852677
  • FEPN: CSSL48ALO3MVOLTSWW380CRI
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

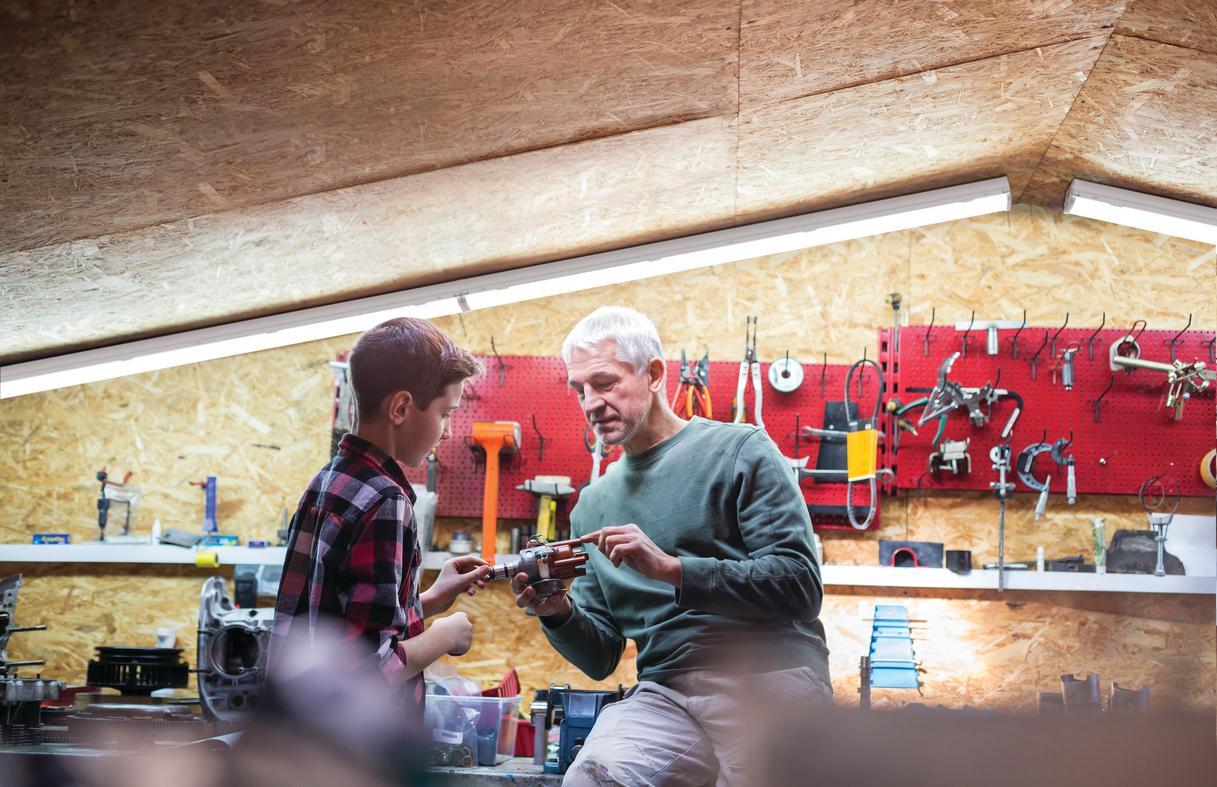

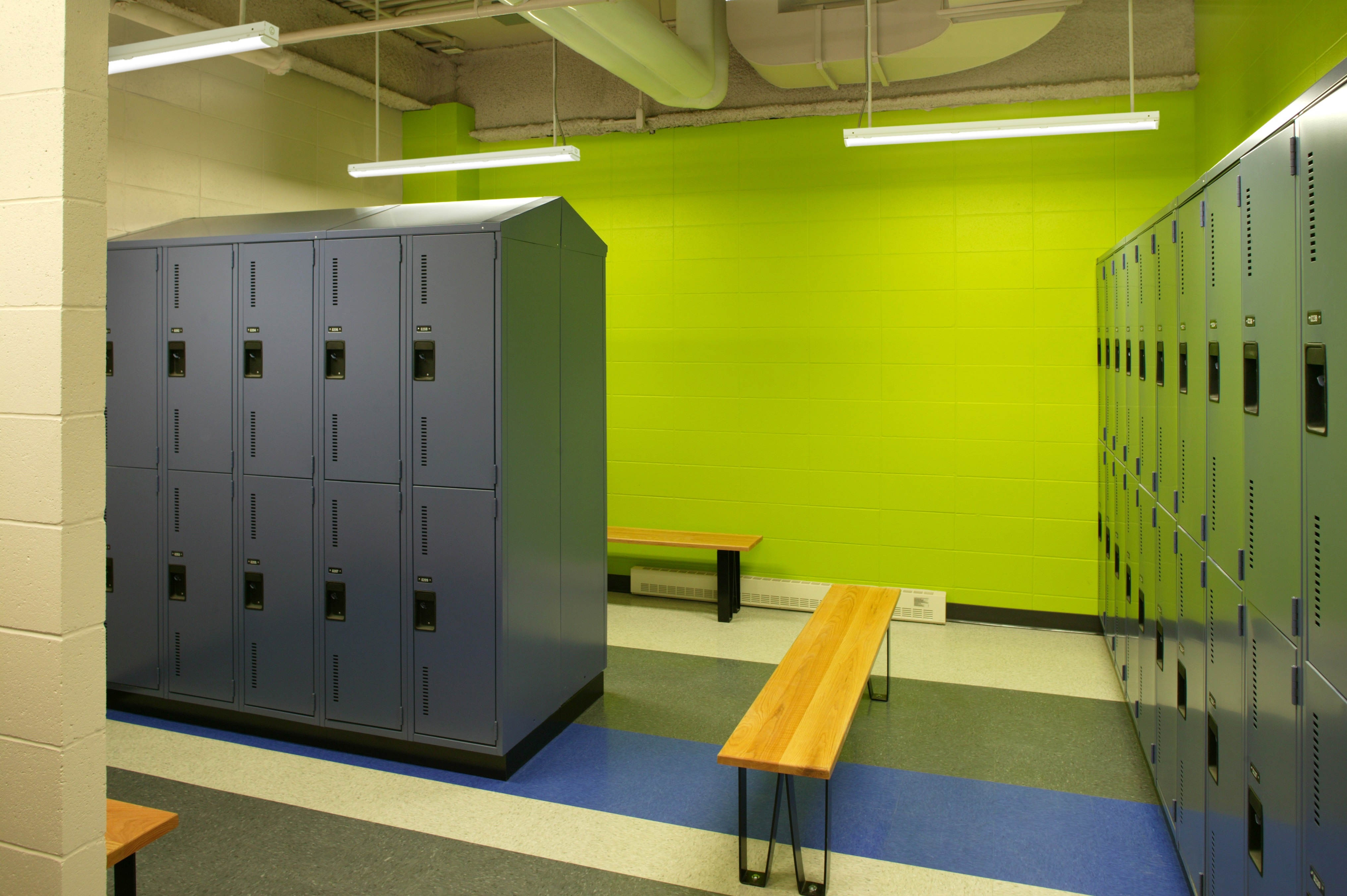

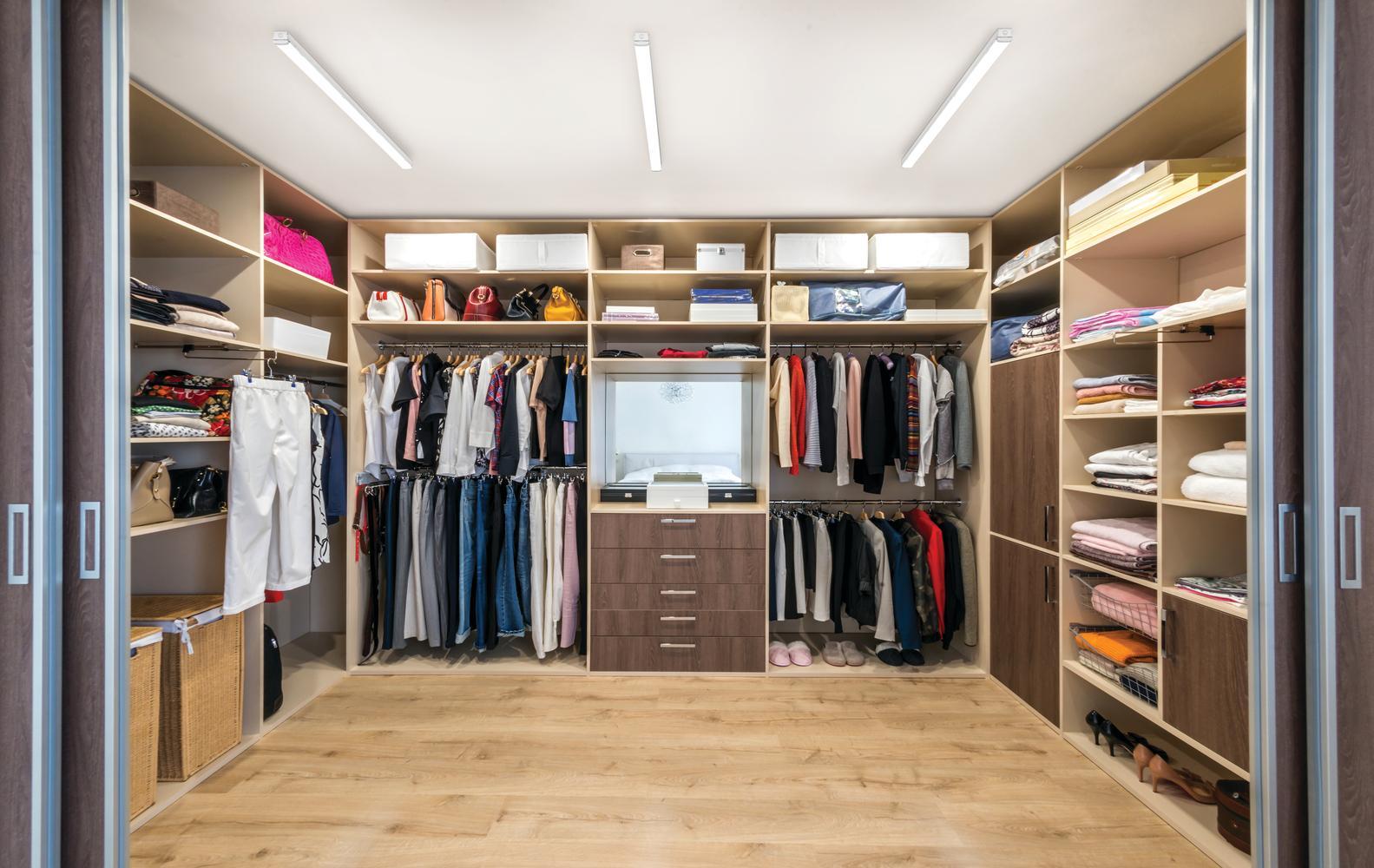

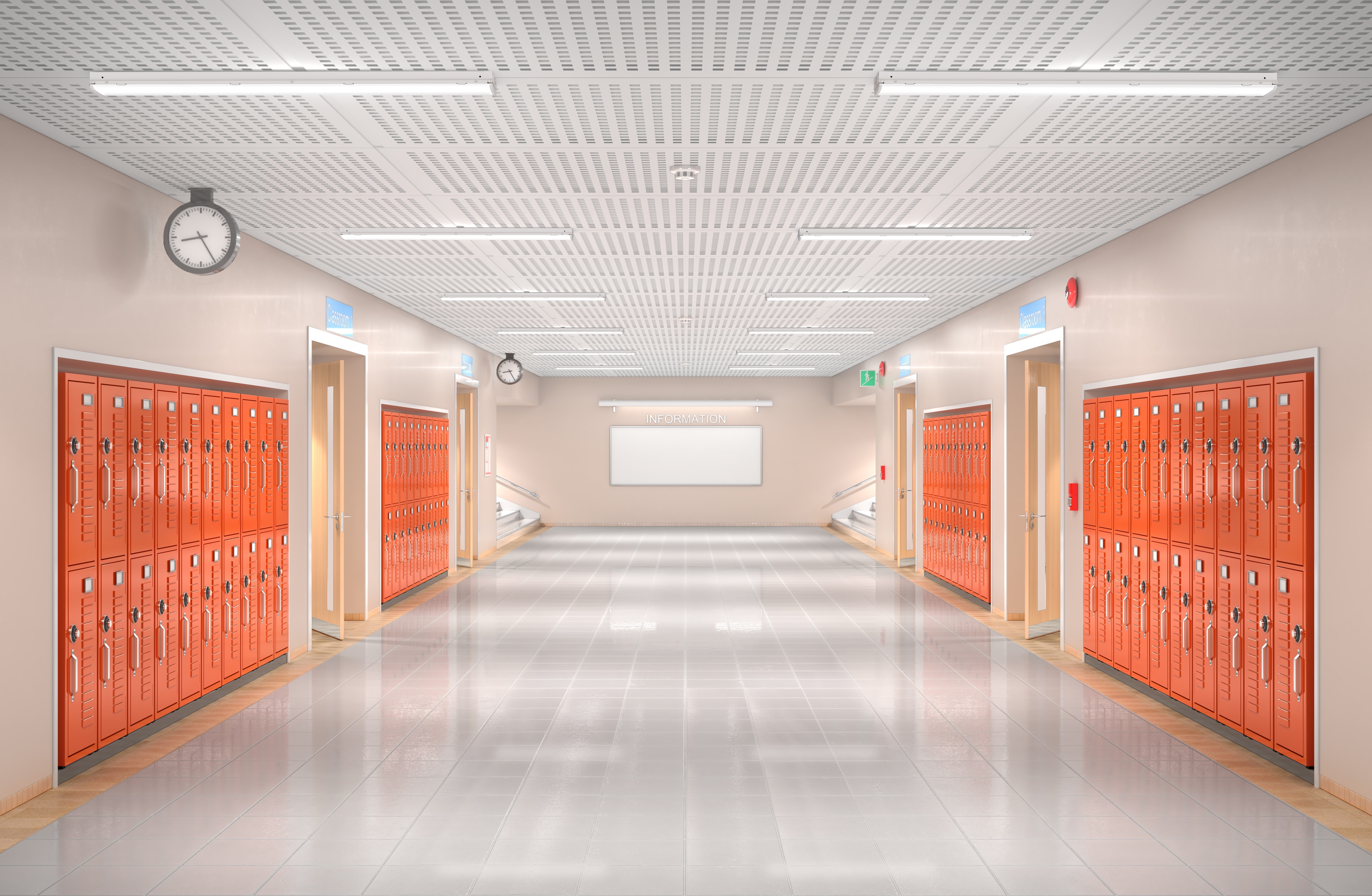

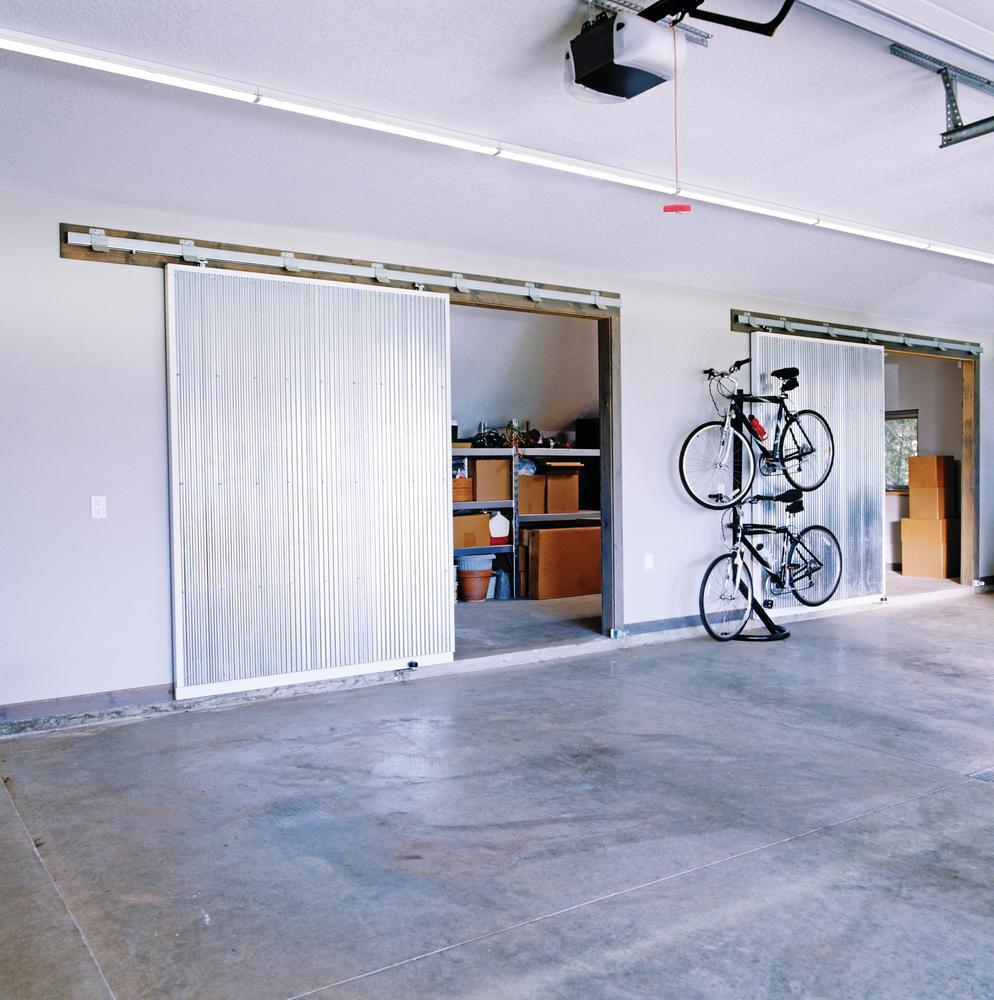

The Lithonia Lighting CSS strip light with Adjustable Light Output and Switchable White Technology is the easiest strip to order, stock, and install, perfect for almost any basic application. The size and versatility make them suitable for tight spaces and for task lighting, restrooms, under/over cabinet and storage closets.

Lithonia Lighting® Contractor Select™ Strip Light, Light Duty Dimmable, Series: CSS, 120 to 277 V, 55/72/88 W Fixture, Adjustable Lumen Lighting Technology, LED Lamp, 2 Lamps, 80000 hr Average Life, White Light, 3500/4000/5000 K Color Temperature, 80 CRI, Acrylic Lens, 3247 to 5150 Lumens, Surface Mounting, Cold Rolled Steel Housing Material, Baked Enamel Housing Finish, 4 ft L x 2.62 in W x 2.22 in H Dimensions

  • The Lithonia Lighting CSS strip light with Adjustable Light Output and Switchable White Technology is the easiest strip to order, stock, and install, perfect for almost any basic application
  • Replaces 4 ft linear strip lights using only 125 lumens per watt and delivering over 4000 lumens
  • MVOLT and dimmable, LED strip lights have 0-10V dimming capability which allows you to control how much light is needed
  • Minimum starting temperature at -40 deg F (-40 deg C), Maximum ambient operating temperature of 95 deg F (35 deg C)
  • Functions between 120 and 277 V and can easily install with row aligner bracket included for continuous row mounting
  • LEDs provide 80 color rendering index (CRI), color temperature range from 3500K a neutral white to 5,000K a daylight color temperature
  • Compact-design channel and cover are formed from code-gauge, cold-rolled steel
  • pdfInstruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CSS_L48_ALO3_MVOLT_SWW3_80CRI_Installation_Manual.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CSS_L48_ALO3_MVOLT_SWW3_80CRI_Specification_Sheet.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CSS_L96_ALO4_MVOLT_SWW3_80CRI_Specification_Sheet.pdf
  • videoVIDEO LINK https://www.youtube.com/watch?v=sK4hbrbhvsw&feature=youtu.be
