Loadcenters are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.

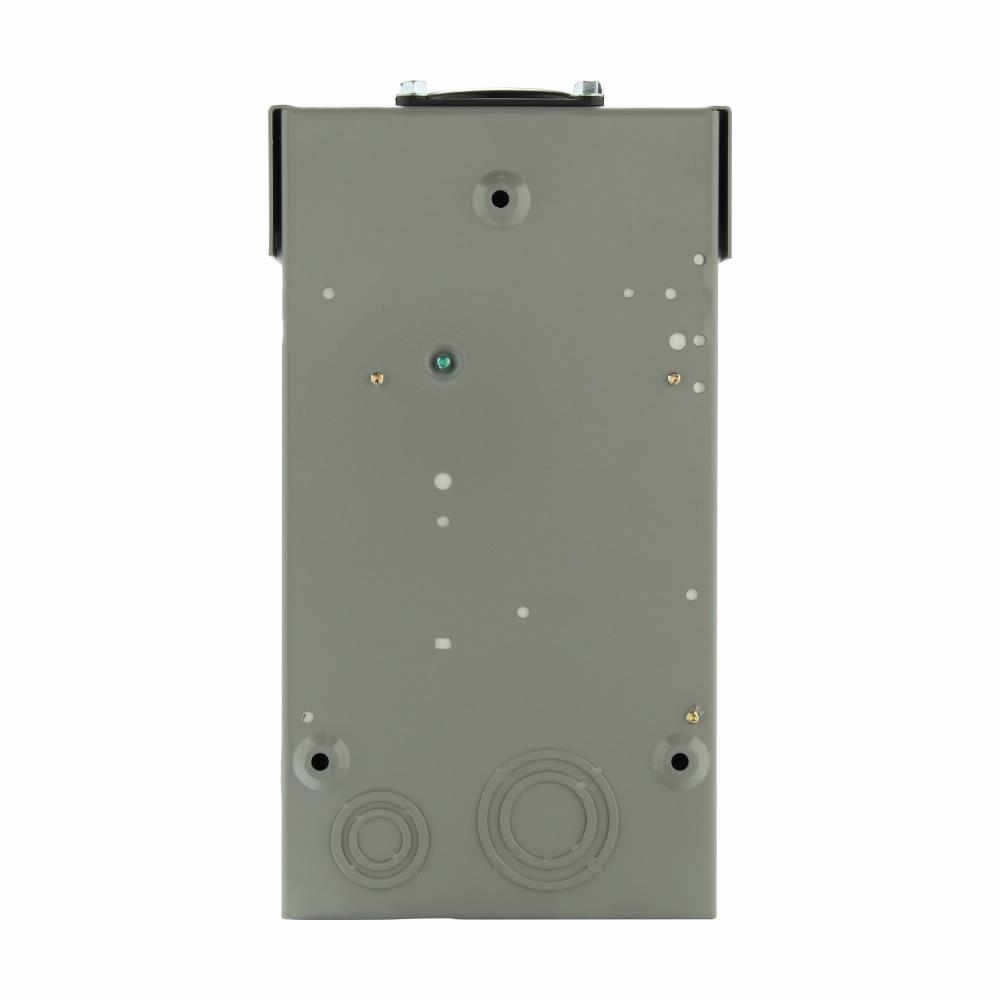

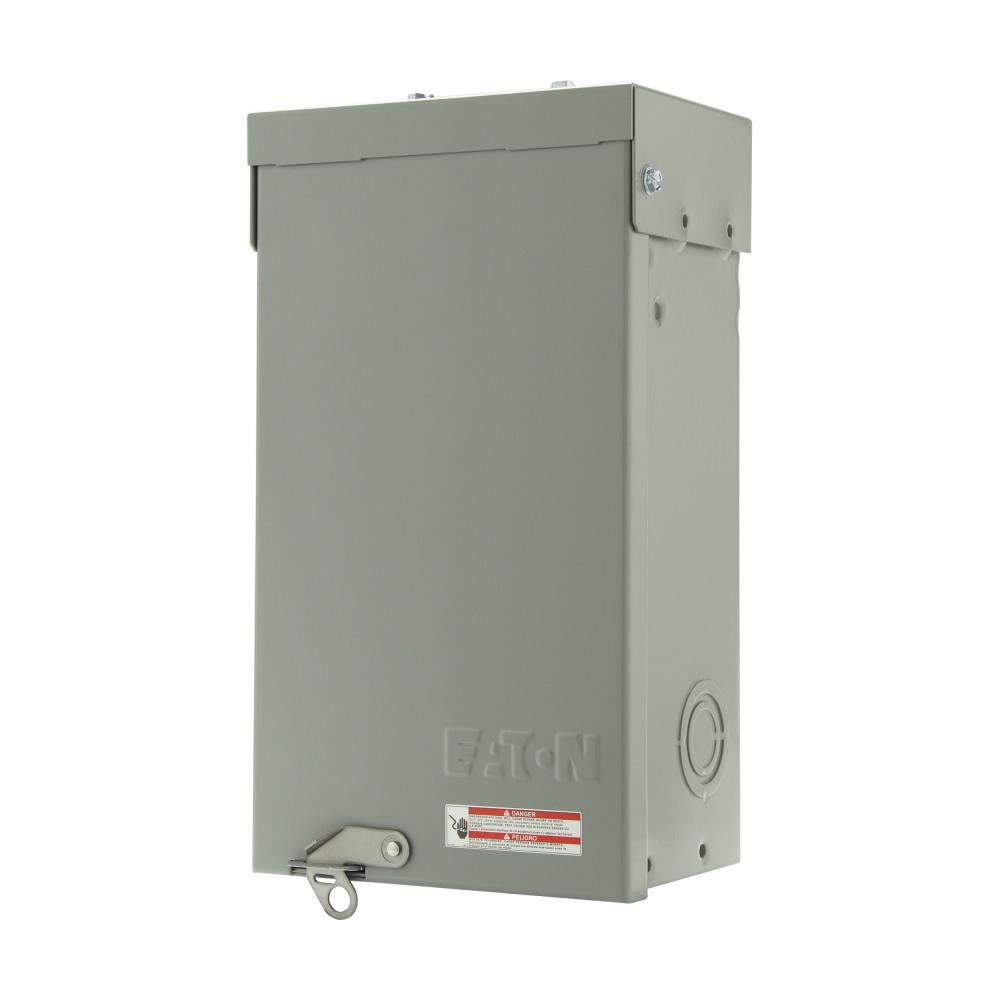

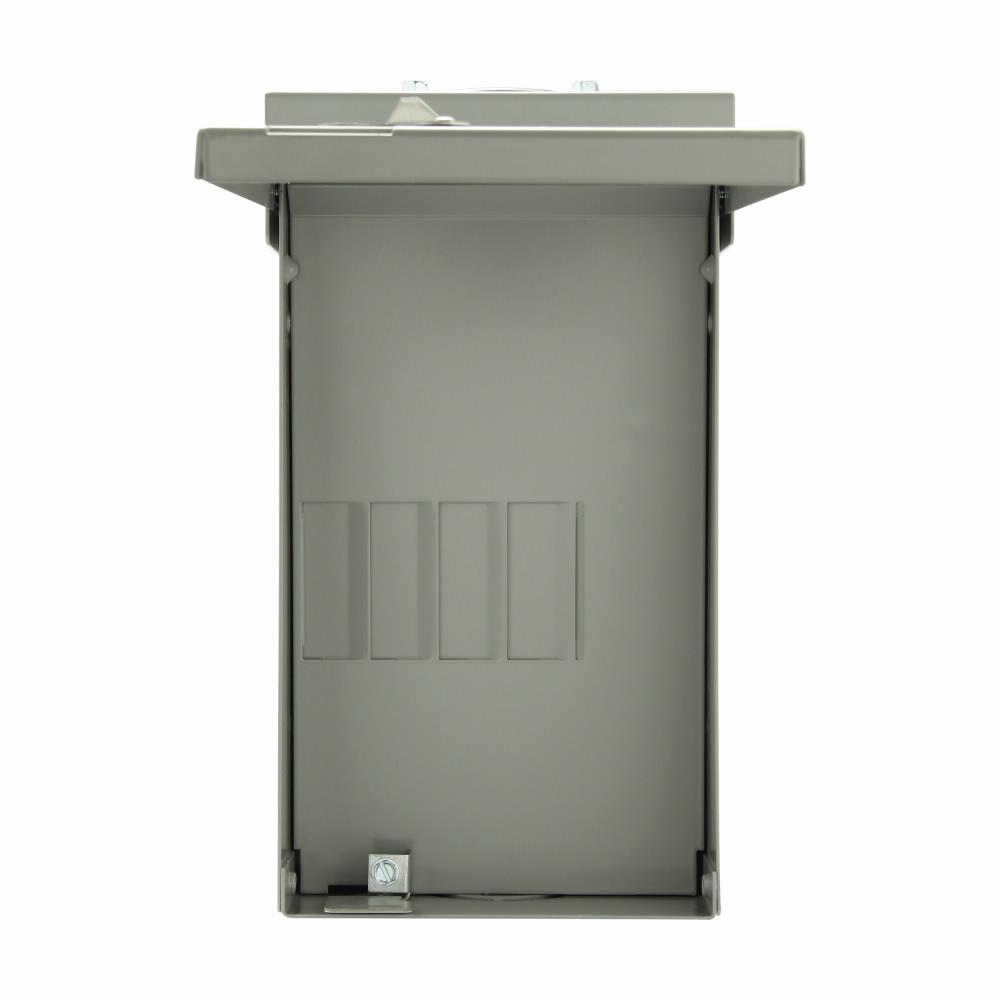

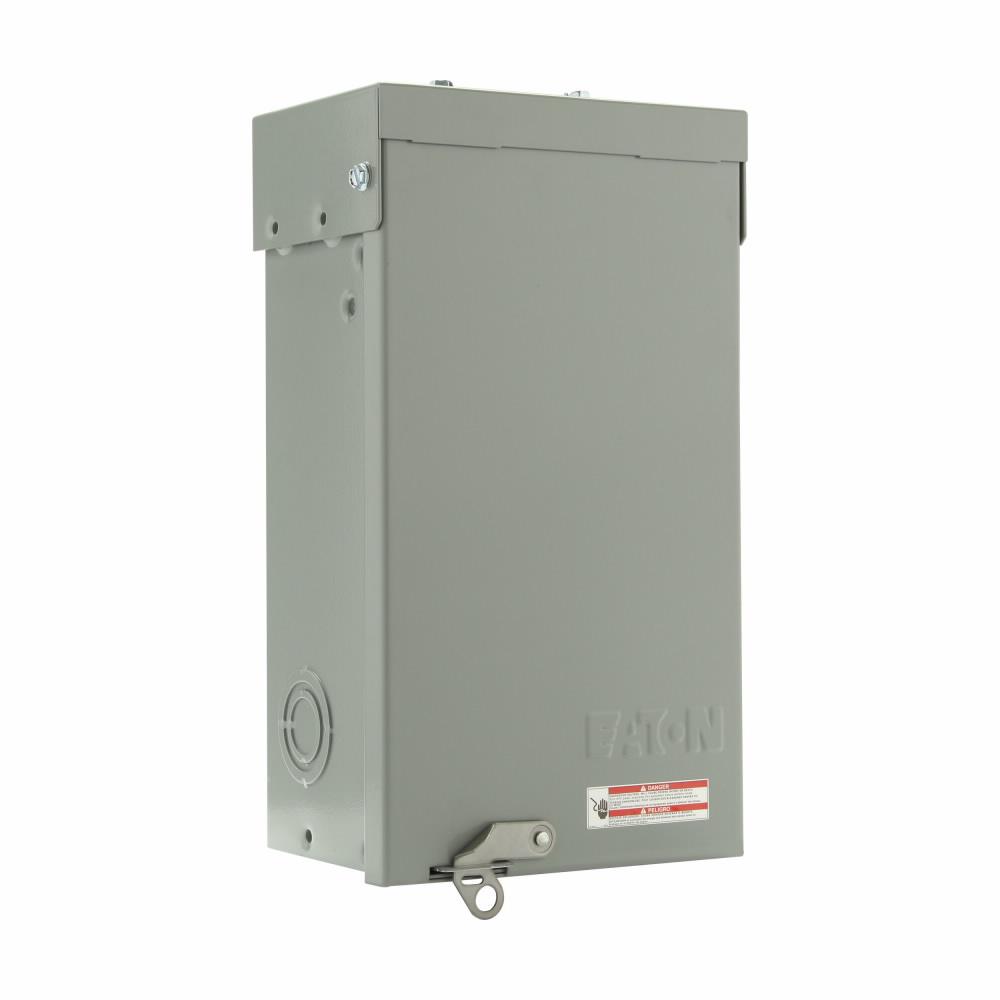

EATON Main Lug Load Center, 1-Phase Rainproof, 120/240 VAC, 8 Pole, 10 kA Interrupt, 8 Circuits, BR Breaker, 3-Wire Wiring Configuration, 125 A Bus, 4 Spaces, 14 to 1/0 AWG Wire, Combination Mounting, NEMA 3R Enclosure, 6R Enclosure Box, Metallic Housing Material, 4.5 in L x 6.5 in W x 11.75 in H Dimensions
| Breaker Type | : | BR |
| Bus Rating | : | 125 A |
| Dimensions | : | 4.5 in L x 6.5 in W x 11.75 in H |
| Enclosure Box Size | : | 6R |
| Enclosure Type | : | NEMA 3R |
| Housing Material | : | Metallic |
| Mounting Type | : | Combination |
| Number of Circuits | : | 8 |
| Number of Spaces | : | 4 |
| Type | : | 1-Phase Rainproof |
| Wire Size | : | 14 to 1/0 AWG |
| Wiring Configuration | : | 3-Wire |
| Voltage Rating | : | 120/240 VAC |
| Number of Poles | : | 8 |
| Interrupt Rating | : | 10 kA |
- Optimized knockouts - knockout locations for additional access, easier to remove smooth case edges, provides a more professional look and feel
- Top or bottom feed - straight-in wiring saves labor and material, one panel for either top or bottom applications
- 2/0 AWG lug - easily removable and can be installed in any location on the neutral bar
- Standard tin plated aluminum bus - excellent conductivity and corrosion resistance, copper bus options available for select catalog numbers
- Drywall offset on both sides of the enclosure - allow for faster installation using predetermined self-leveling tabs
- "Tangential" center knockout - easier installation for conduit applications
- Commercial grade main breaker - 25 kAIC series rated main breaker for superior protection
- Common drive types - minimizes number of tools required for installation as the neutral bar and breaker screws will share a common drive type
- Grounding screw - provides a quick and easy means of bonding the neutral and ground
- Twin neutral bars - minimum 150% neutral capacity
- Backed out neutral screws - allows for quick connection of neutral and ground conductors
