Industrial specification grade straight blade plugs and connectors, ultra Grip™ and safety Grip™ NEMA 5-15, 2-pole 3-wire. Ultra Grip™ and safety Grip™ devices are designed to install quickly and easily and provide reliable performance in tough industrial environments.

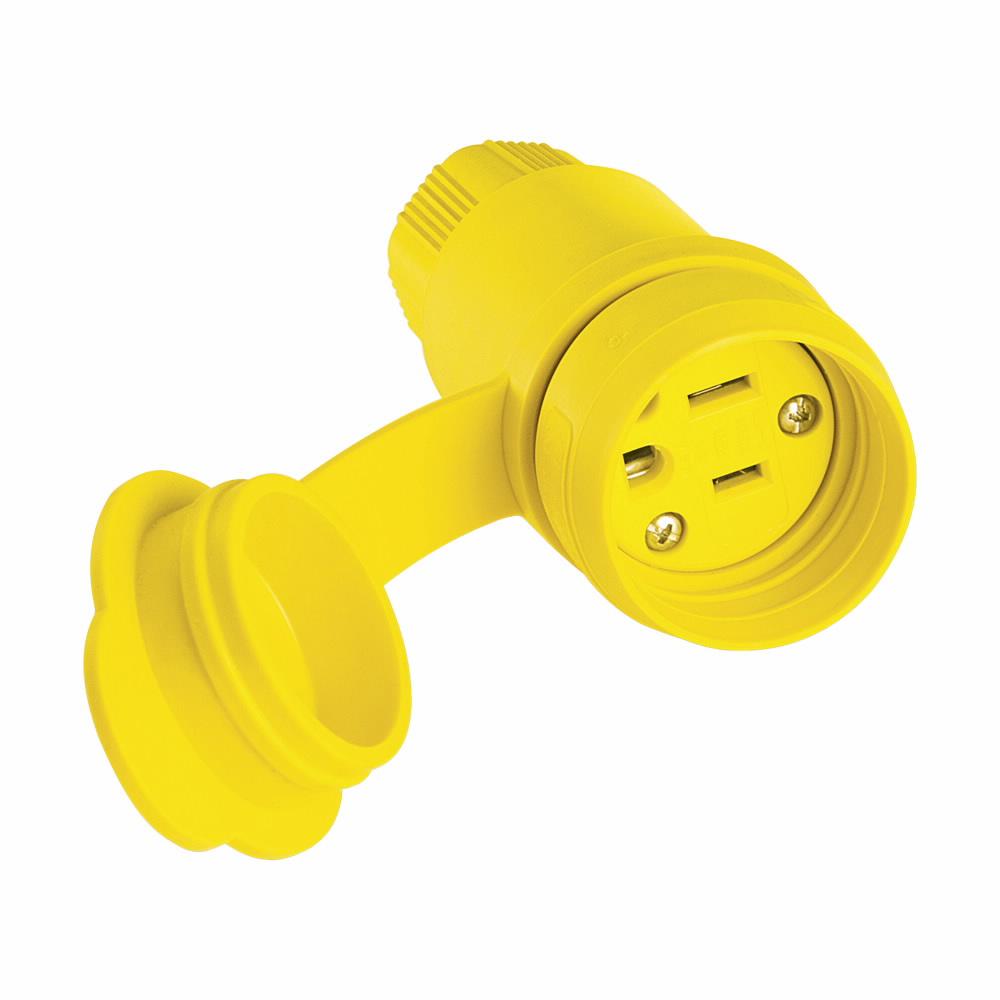

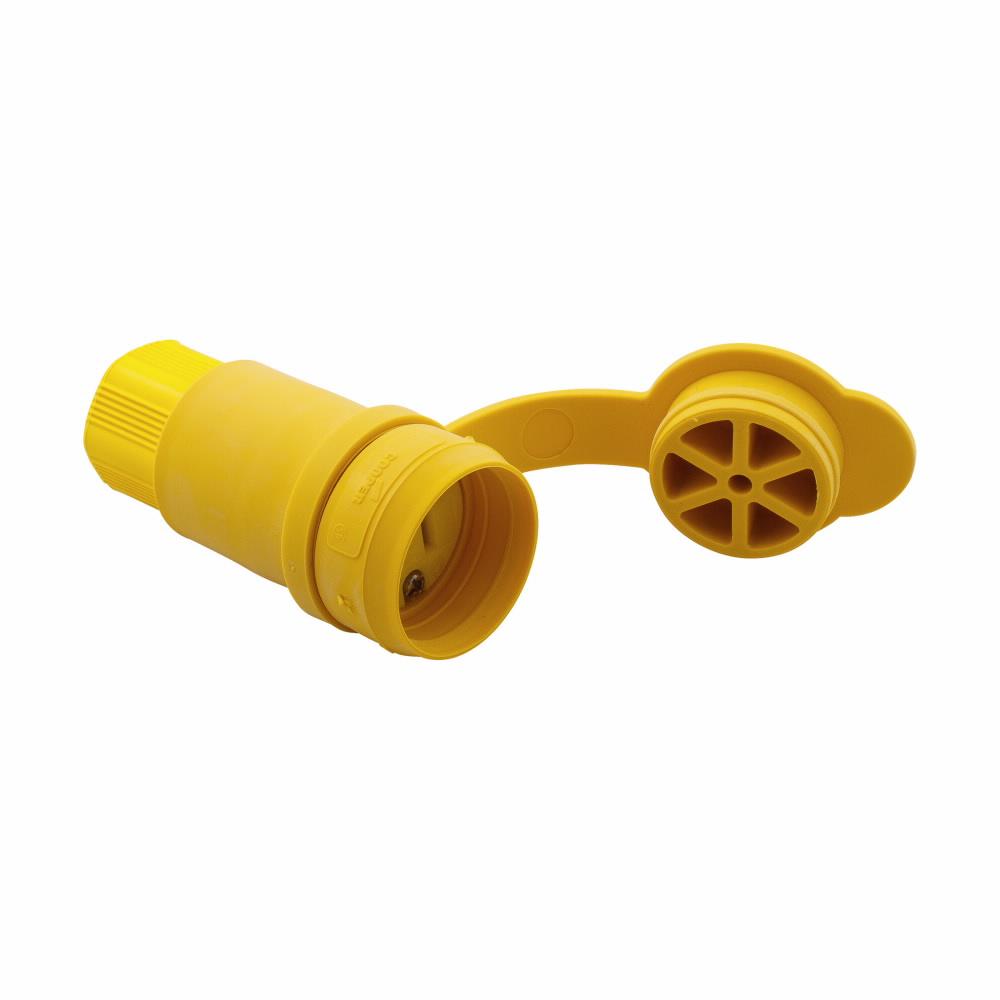

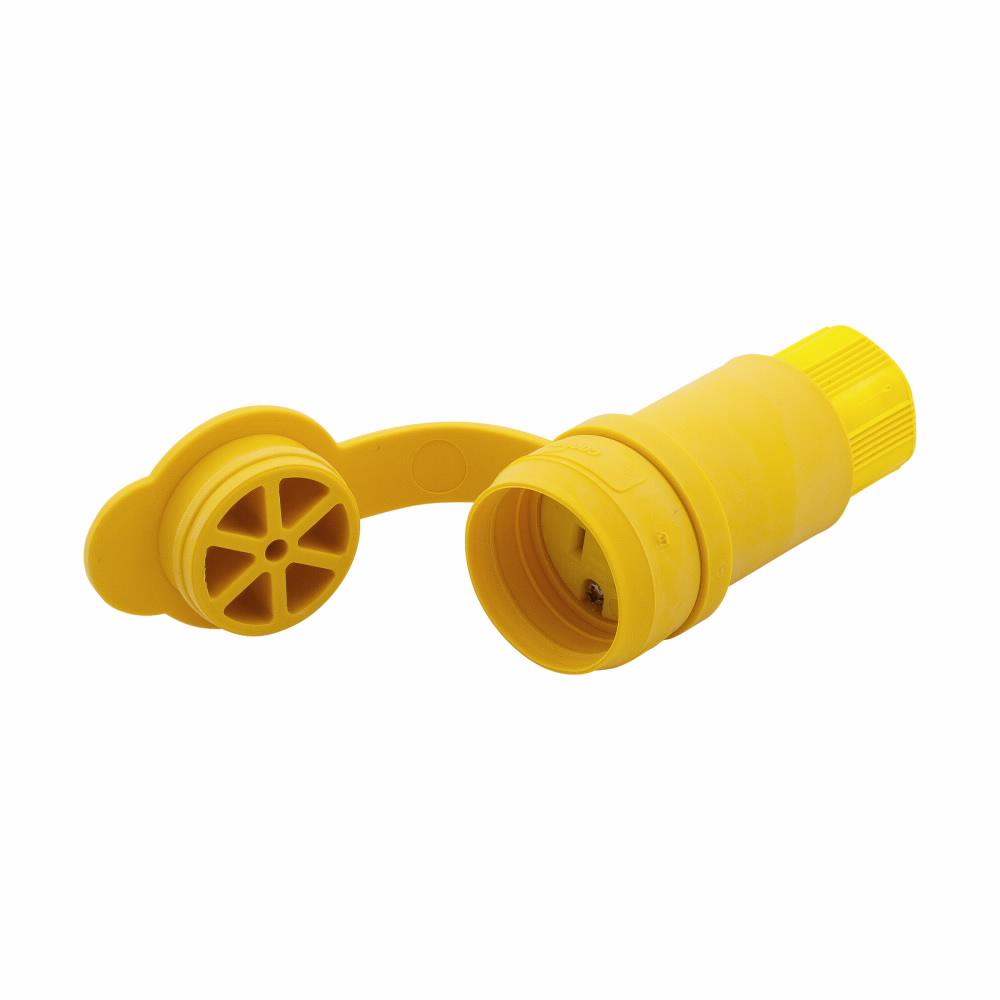

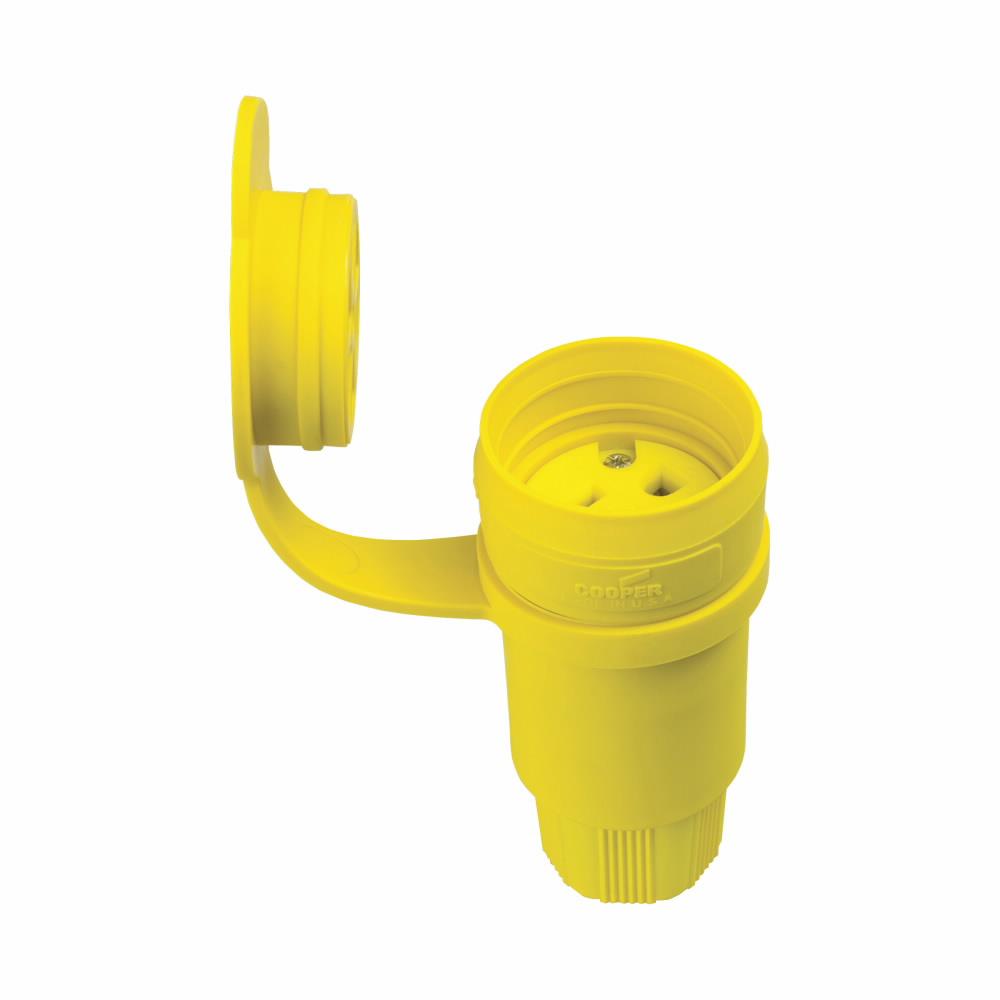

EATON Arrow Hart Straight Blade Connector, Watertight, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Industrial Grade, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Nylon/Polypropylene/Santoprene™ TPE/Thermoplastic, Yellow, 1.59 in Dia x 4 in H Dimensions
| Cord Diameter | : | 0.3 to 0.65 in |
| Dimensions | : | 1.59 in Dia x 4 in H |
| Grade | : | Industrial |
| Material | : | Nylon/Polypropylene/Santoprene™ TPE/Thermoplastic |
| NEMA Rating | : | NEMA 5-20P |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Screw |
| Type | : | Watertight |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
- Santoprene™ elastomeric exterior provides superior performance in complex environments
- Integrated connector closure cap provides watertight protection when not in use
- Nickel plated blades, power contacts and terminal screws provide corrosion-resistance
- Glass reinforced nylon interior provides strength and durability
- Clear terminal cover allows for easy inspection of conductors and terminations
- Neoprene grommet ensures watertight seal at cord entrance
- High visibility safety yellow for identification
- Quick-drive stainless steel assembly screws for corrosion-resistance and fast installation
