Commercial specification grade straight blade receptacles - 20 A, 125 VAC, NEMA 5-20R. engineered for safe, reliable performance, these UL 498 and Federal Specification W-C-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

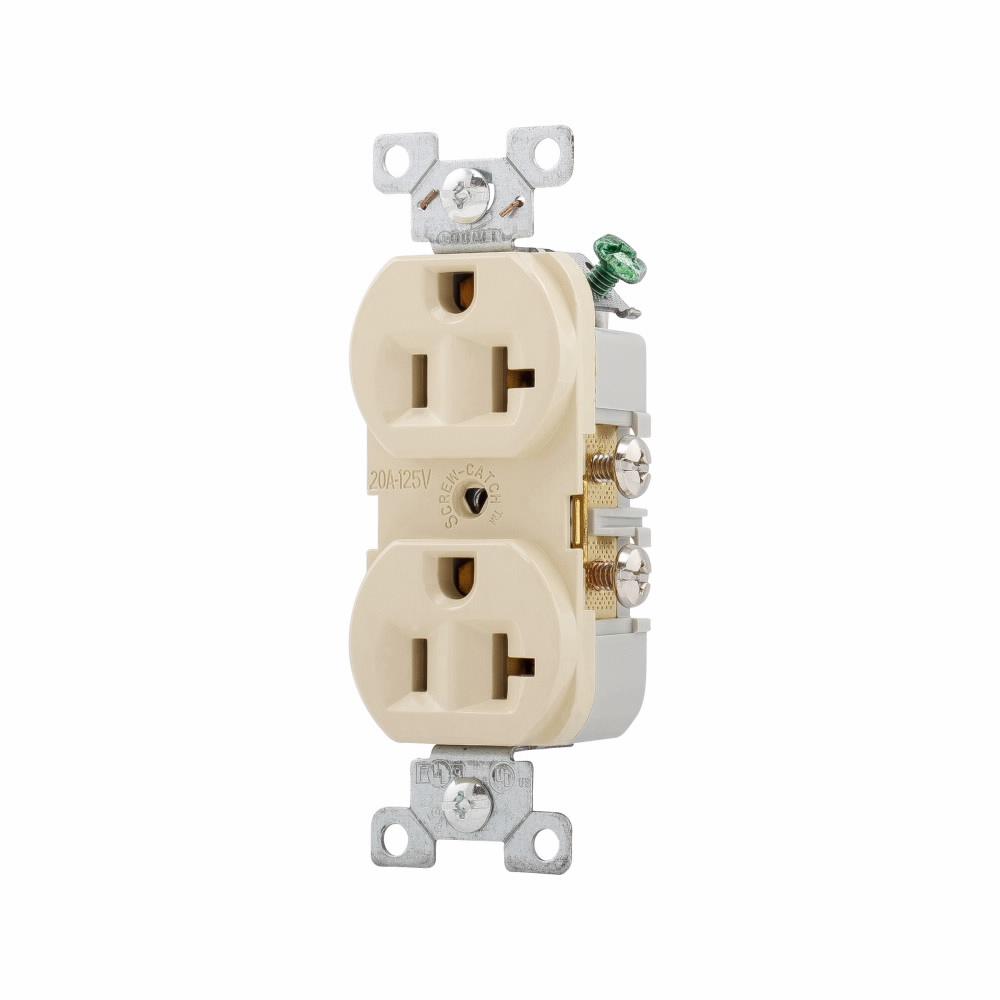

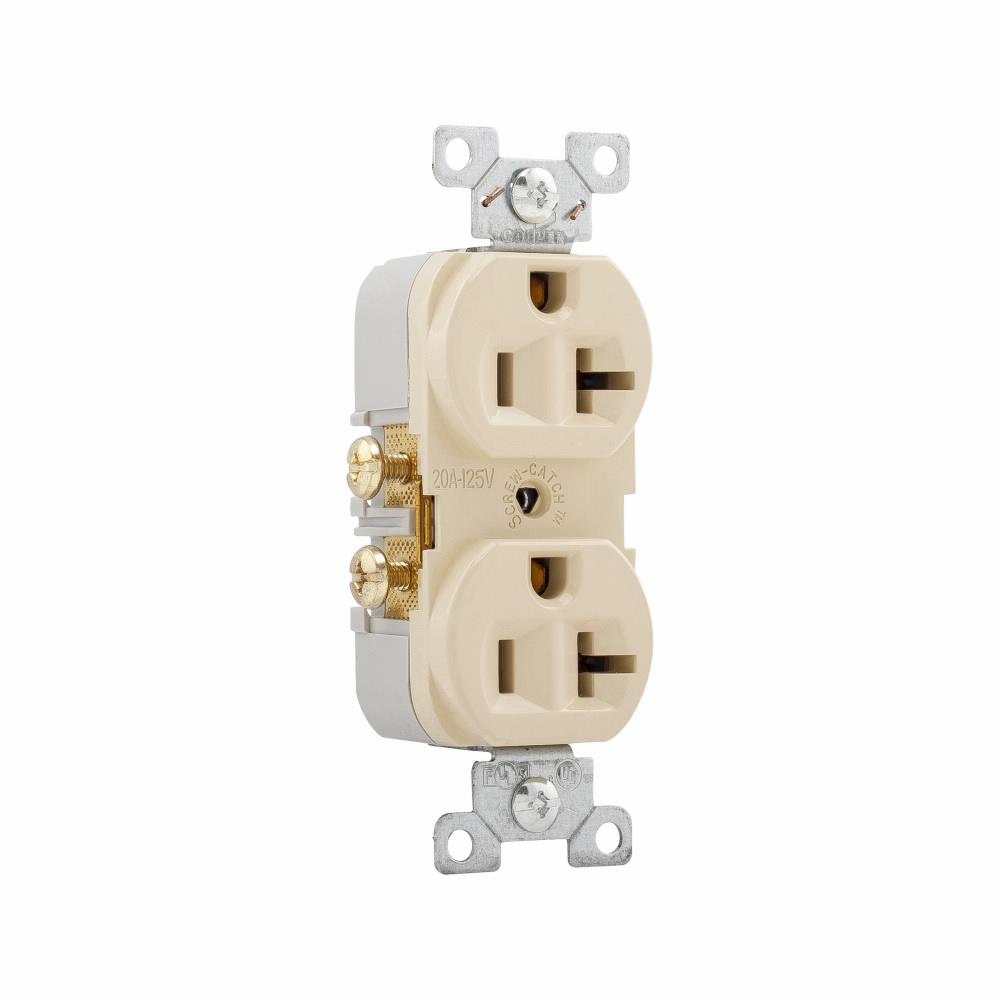

EATON Arrow Hart™ Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: CR20, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, PVC, Ivory, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
| Dimensions | : | 4.19 in H x 1.3 in W x 0.82 in D |
| Grade | : | Commercial |
| Material | : | PVC |
| NEMA Rating | : | NEMA 5-20R |
| Series | : | CR20 |
| Temperature Rating | : | -4 to 158 deg F |
| Terminal Type | : | Side Wire/Screw |
| Type | : | Duplex |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Ivory |
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Flush mounting
- 14 to 10 AWG wire terminal
