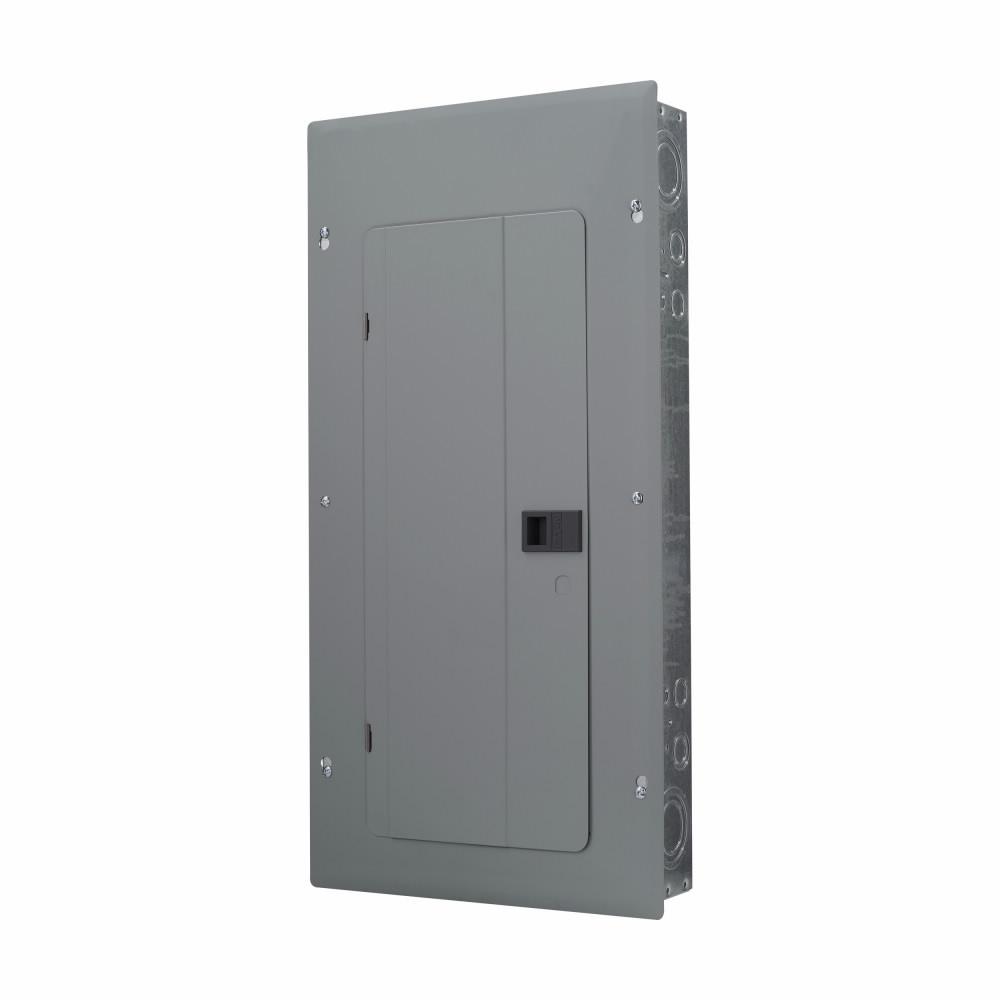

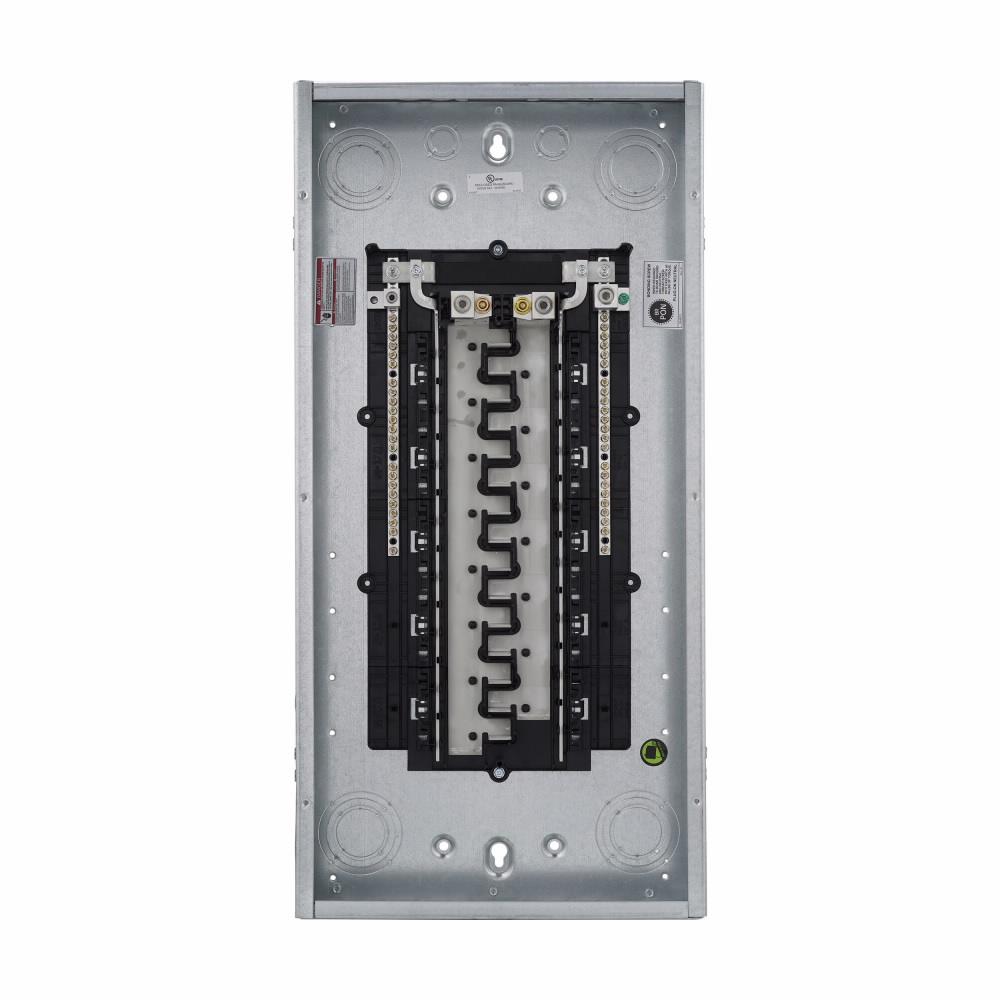

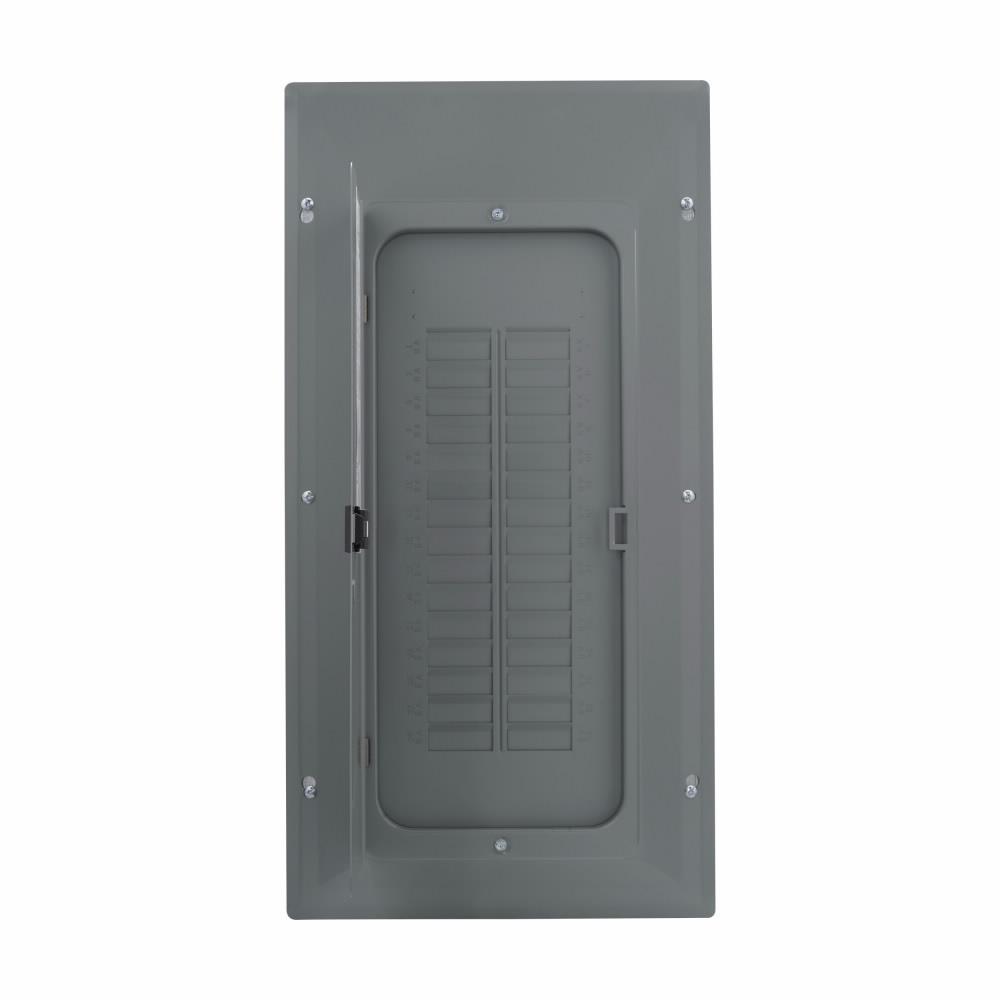

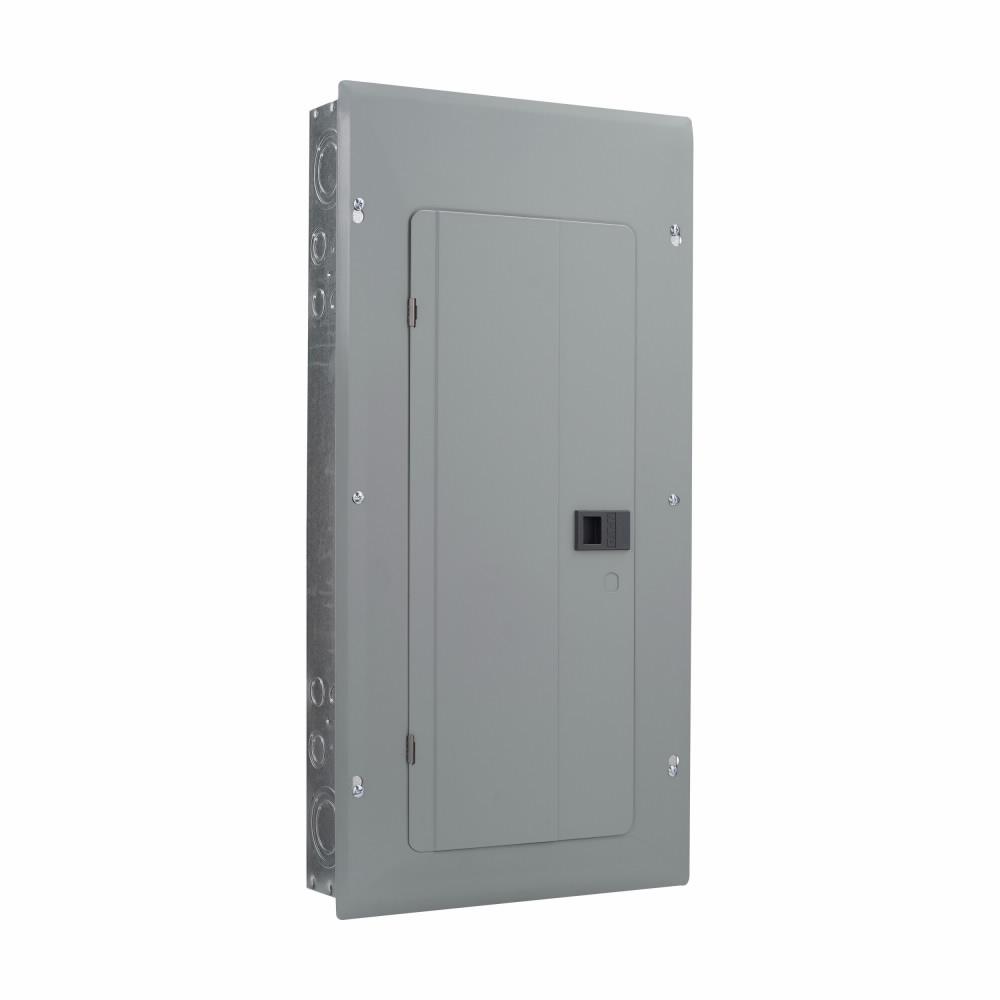

EATON BRP30L200
EATON BRP30L200 1-Phase Bondable Split Insulated Main Lug Load Center, 120/240 VAC, 200 A, 1 Pole, 10 kA Interrupt
- Manufacturer Name: Eaton
- MPN: BRP30L200
- Brand Name: EATON
- UPC: 786689052881
- FEPN: BRP30L200 EC
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Specially designed for easy installation, Eaton BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
EATON Main Lug Load Center, 1-Phase Bondable Split Insulated, Series: BR, 120/240 VAC, 200 A, 1 Pole, 10 kA Interrupt, 60 Circuits, BR/CSR Breaker, 3-Wire Wiring Configuration, 30 Spaces, 1 AWG to 300 kcmil Wire, Flush/Surface Mounting, NEMA 1 Enclosure, X5 Enclosure Box, Aluminum Housing Material, 29.12 in L x 14.31 in W x 3.88 in H Dimensions
| Breaker Type | : | BR/CSR |
| Dimensions | : | 29.12 in L x 14.31 in W x 3.88 in H |
| Enclosure Box Size | : | X5 |
| Enclosure Type | : | NEMA 1 |
| Housing Material | : | Aluminum |
| Mounting Type | : | Flush/Surface |
| Number of Circuits | : | 60 |
| Number of Spaces | : | 30 |
| Series | : | BR |
| Type | : | 1-Phase Bondable Split Insulated |
| Wire Size | : | 1 AWG to 300 kcmil |
| Wiring Configuration | : | 3-Wire |
| Voltage Rating | : | 120/240 VAC |
| Amperage Rating | : | 200 A |
| Number of Poles | : | 1 |
| Interrupt Rating | : | 10 kA |
- Extra 1-1/2 in knockout, larger knockout provides easier installation and time savings
- Straight-in wiring saves labor and material
- One-panel for either top or bottom application
- 2/0 AWG lug, easily removable and can be installed in any locations on the neutral bar
- Type BR AFCI breakers, compact design for easier wiring and improved wireway access, provides a clean gutter space
- Standard tin-plated aluminum bus for excellent conductivity and corrosion-resistance
- Tangential center knockout, easier installation for conduit application
- Commercial grade main breaker, 25 kAIC series rated main breaker for superior protection
- Neutral bus, easily removable for sub-panel application
- Bonding Z-strap, provides easy field conversion for service entrance application
- Steel backpan provides solid and reliable breaker mounting, single piece design for stability and durability
- 1 AWG to 300 kcmil copper/aluminum wire size
- Without feed-through lug
