Decorator receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility. Terminal screws backed out ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire.

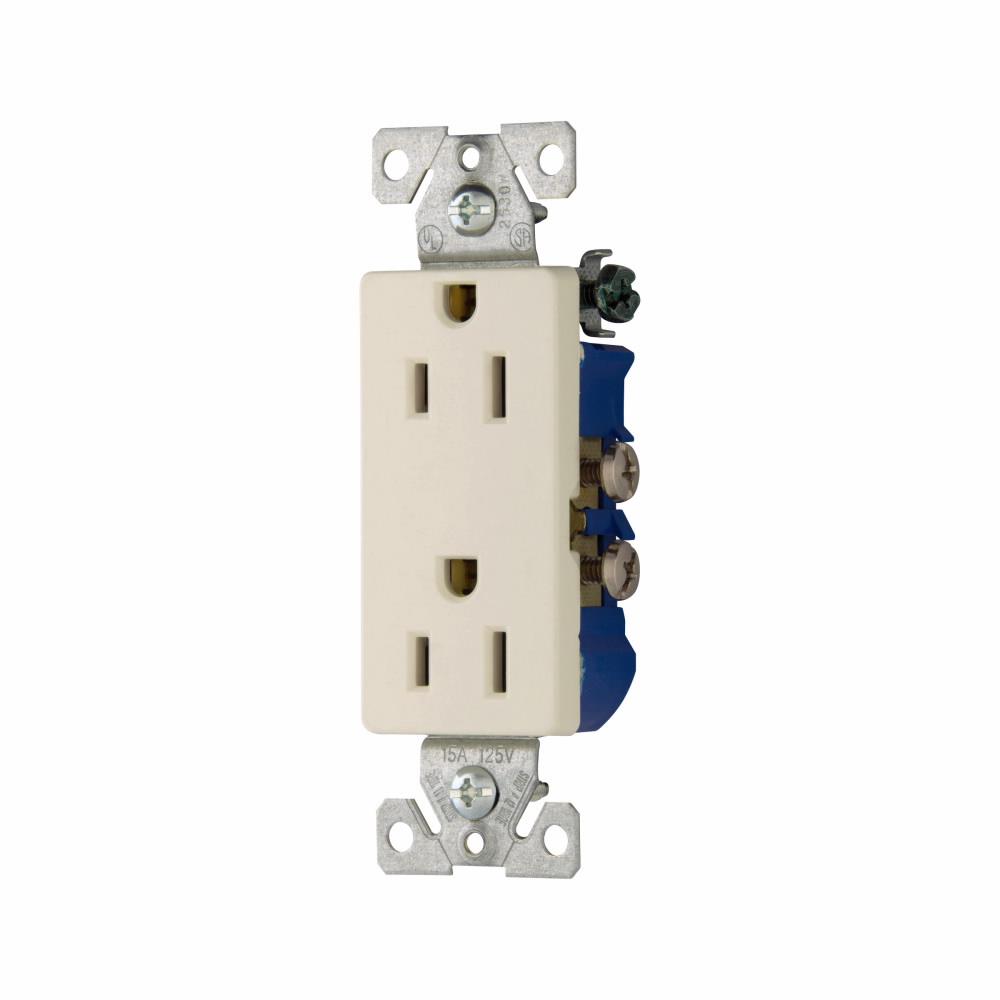

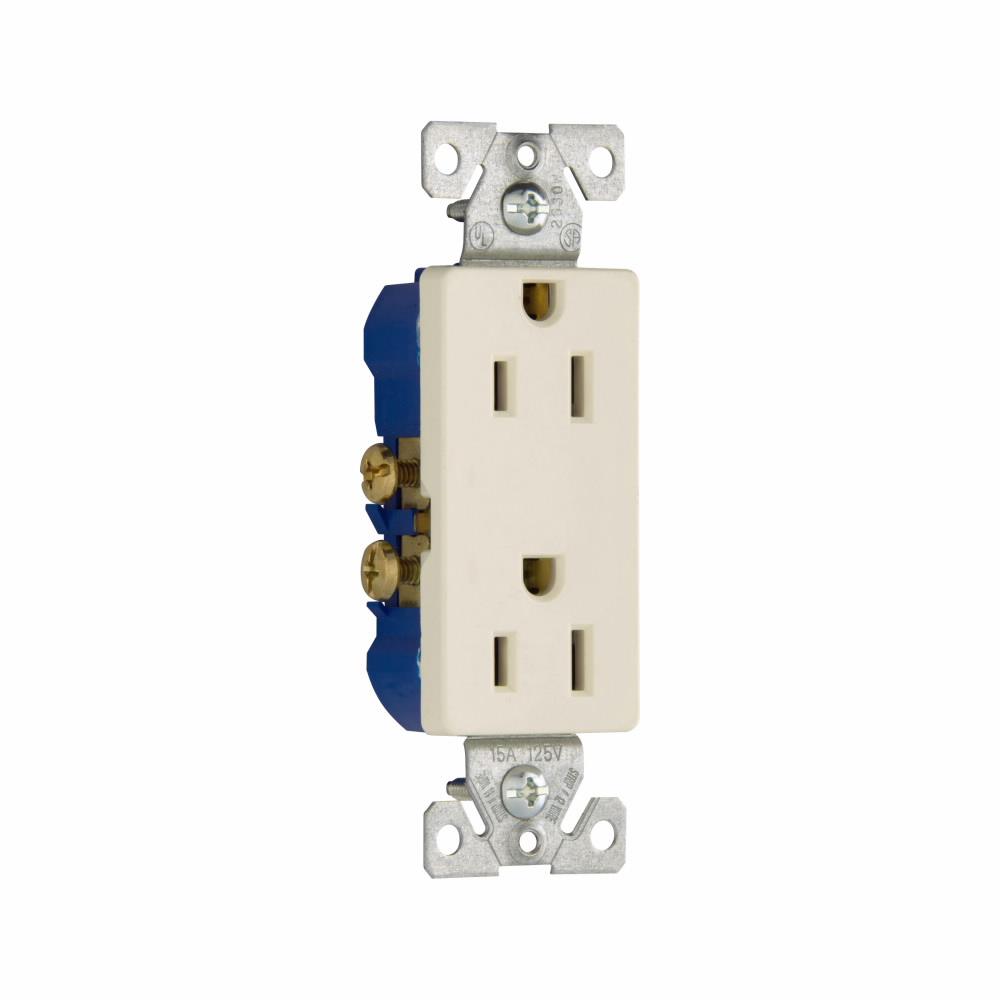

EATON Straight Blade Receptacle, Decorator Duplex, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Standard Grade, Push-In/Side Wire Terminal, Thermoplastic, Light Almond, 6 in H x 4.5 in W x 3.62 in D Dimensions
| Dimensions | : | 6 in H x 4.5 in W x 3.62 in D |
| Grade | : | Standard |
| Material | : | Thermoplastic |
| NEMA Rating | : | NEMA 5-15R |
| Terminal Type | : | Push-In/Side Wire |
| Type | : | Decorator Duplex |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Light Almond |
- Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
- Push-in terminals accept 14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact resistant thermoplastic face and back body eliminates breakage
- Double wipe ground contacts ensure long term ground retention
- Easy access split circuit break off tab
- Tri combo screws accept slotted, Phillips® and Robertson head tools for installation flexibility
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept up to 10 AWG solid wire
- Flush mounting
- Indoor environmental conditions
