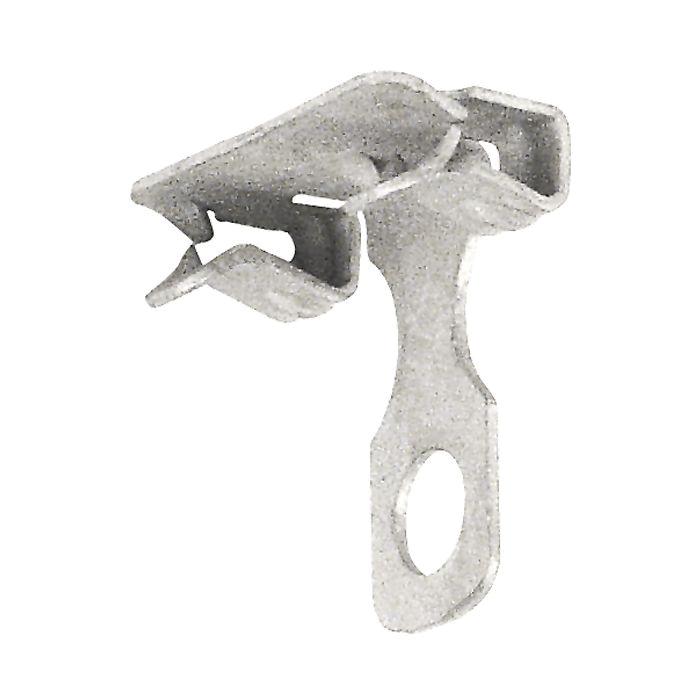

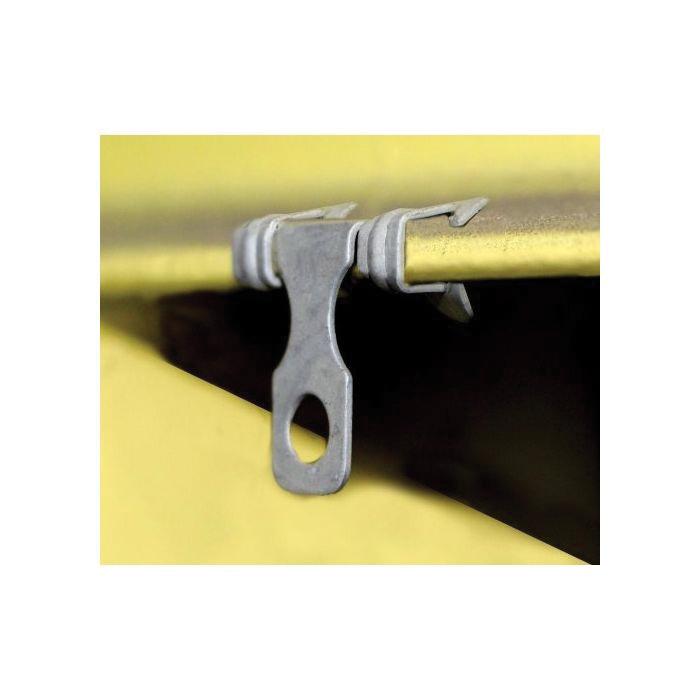

This hammer-on flange clip provides an attachment for ceiling grid wire, s-hooks, chain, aircraft cable and a variety of other assemblies that need to be hung from structural beams. Sharp teeth bite on beam edge to ensure secure installation and prevent vibratory loosening. 1/4 in mounting hole and 160 lb static load capacity supports numerous applications.
GARVIN® Beam Flange Clip, Hammer-On, Side Mounting, 160 lb Load, For Use With: 3/32 to 9/64 in THK Flange, Specifications: 1/4 in Hole, Spring Steel, Zinc Plated
| Mounting Type | : | Side |
| Specifications | : | 1/4 in Hole |
| Suitable For Use With | : | 3/32 to 9/64 in THK Flange |
| Type | : | Hammer-On |
| Load Capacity | : | 160 lb |
| Material | : | Spring Steel |
| Finish | : | Zinc Plated |
- Provides an attachment for ceiling grid wire and a variety of other assemblies that need to be hung from structural beam
- Sharp teeth bite on beam edge to ensure secure installation and prevent vibratory loosening
- 1/4 in mounting hole and 160 lb static load capacity supports numerous applications
