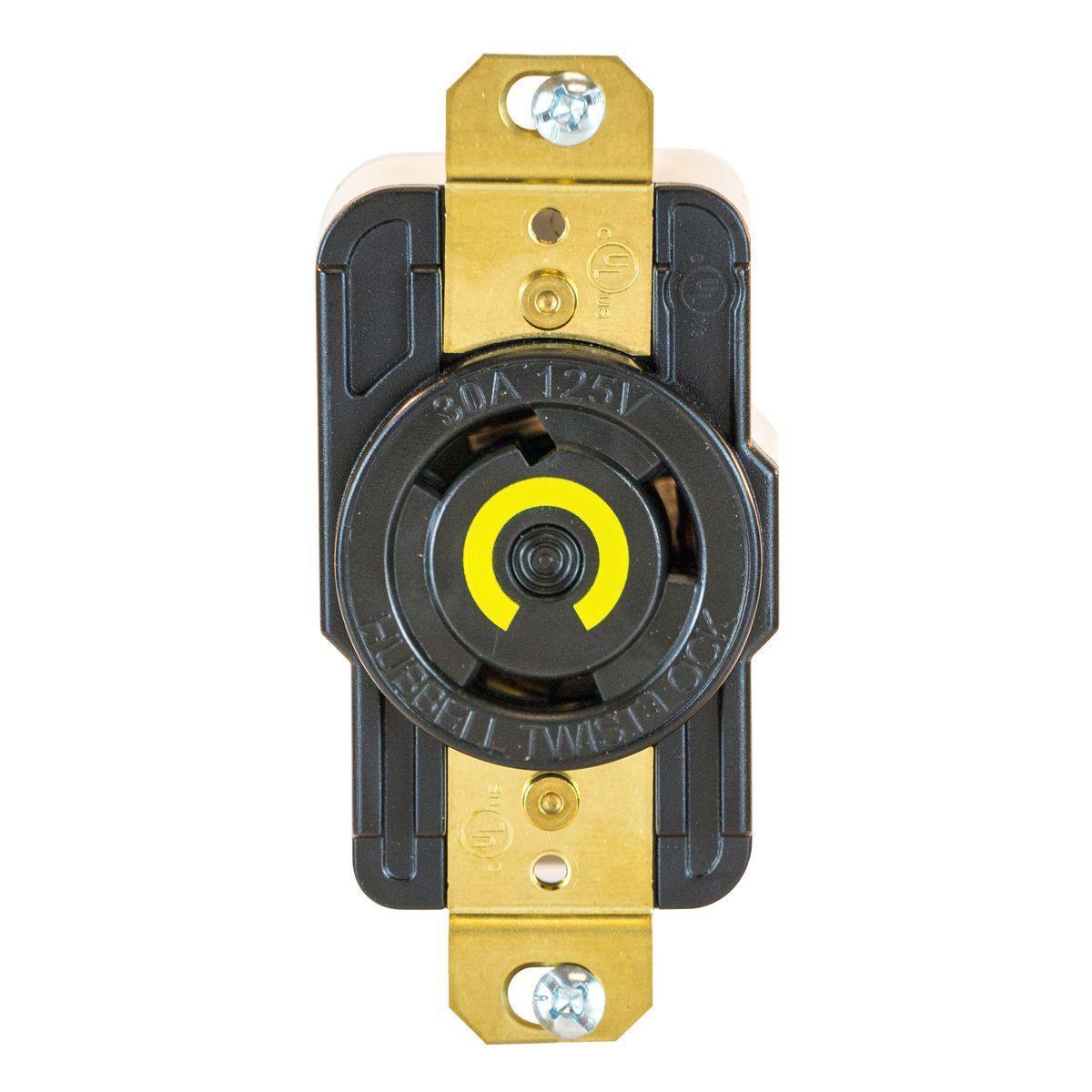

Wiring Device-Kellems HBL2610ST
Wiring Device-Kellems Twist-Lock® HBL2610ST Grounding Single Flush Locking Receptacle, 125 V, 30 A, 2 Poles, 3 Wires, Black
- Manufacturer Name: Hubbell
- MPN: HBL2610ST
- Brand Name: Wiring Device-Kellems
- UPC: 783585569567
- FEPN: HBL2610ST HW
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Wiring Device-Kellems Twist-Lock® Locking Receptacle, Grounding Single Flush, 125 V, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L5-30R, IP20 Enclosure, -40 to 75 deg C, Spring Terminal, Nylon, Black, 1.701 in W x 1.551 in D x 2.77 in H
| Dimensions | : | 1.701 in W x 1.551 in D x 2.77 in H |
| Enclosure | : | IP20 |
| Horsepower | : | 2 hp |
| Material | : | Nylon |
| NEMA Rating | : | NEMA L5-30R |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Spring |
| Type | : | Grounding Single Flush |
| Voltage Rating | : | 125 V |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Black |
- No need for screwdriver and torque wrench
- Spring termination eliminates strand relaxation
- High impact, abuse resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Instruction/Installation Manual
VIDEO LINK
