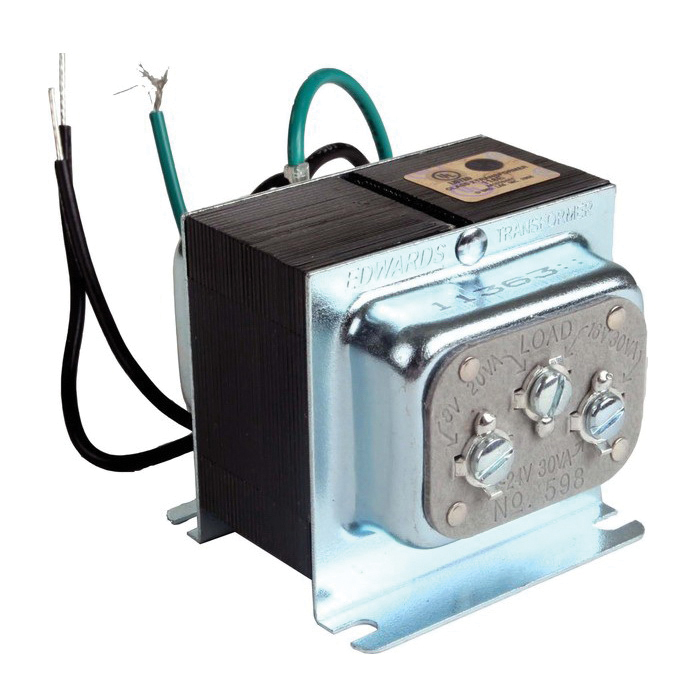

Edwards 590 series Class 2 Signaling Transformers are easy to install, low voltage power sources for residential, commercial and industrial uses. Mounts in a standard 1/2 in knockout or surface mounts using the provided foot mounts. These transformers are suitable for mounting in both plastic and metal back boxes. May also be used with the catalog no. 593 transformer plate for enclosed mounting in a standard two gang outlet box. The Edwards 590, 590Y and 591 transformers are used in light duty applications. They are ideal for standard doorbells and chimes in residential and commercial applications. The 592 and 592Y transformers are for commercial and residential use. The 24 V, 20 VA secondary is ideal for applications requiring longer wire runs such as that needed in multiple family dwellings. The 596 transformer is used in light duty applications. It is ideal for standard doorbells and chimes in residential and commercial applications. Multiple secondary voltages expand possible usage. The Edwards 598, 598Y, 599 and 599Y transformers offer high power for long wire runs or for applications requiring greater power such as door openers. Ideal for large apartments and building elevators. When selecting transformers, attention should be given to the power requirements of the signal or load and the wire run between the transformer and load.

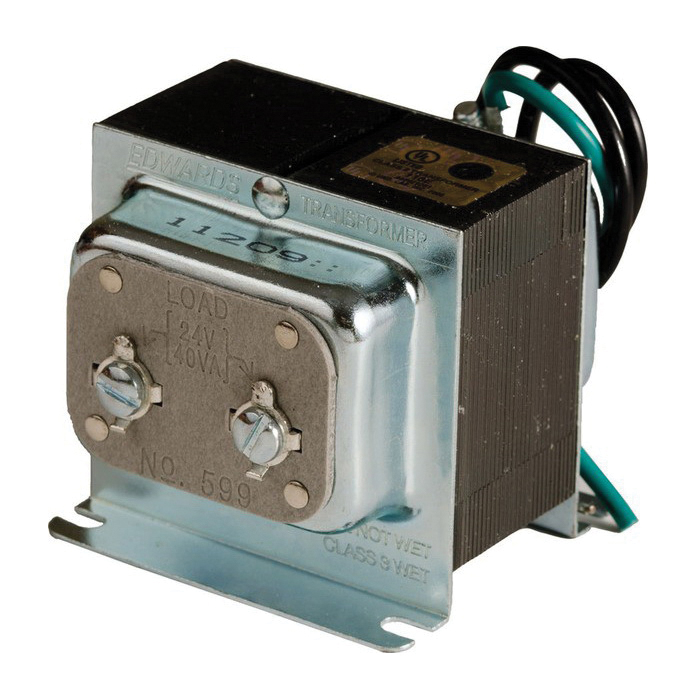

Edwards Signaling™ Signaling Transformer, AC Class 2 Low Voltage, Series: 590, 240 VAC Primary, 24 VAC Secondary, 40 VA Power, 50/60 Hz Frequency, Surface/Knockout Mounting, 2-1/8 in H x 2-1/4 in W x 2-5/16 in D Dimensions

• Non-regenerative thermal overload protection
• Grounding wire
• Pre-stripped pigtails
• Screw terminal connections on secondary
