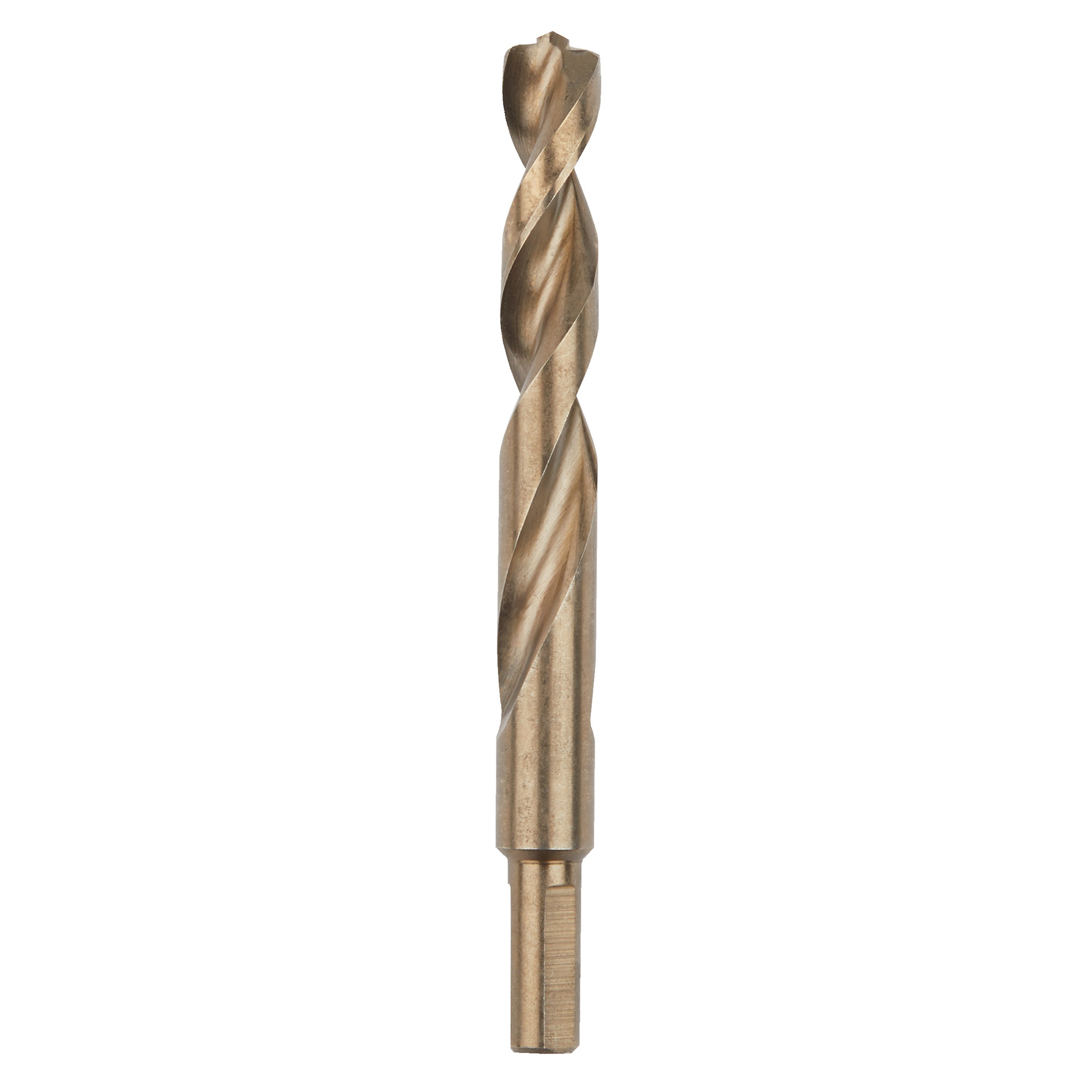

Milwaukee® 48-89-2329

Milwaukee® RED HELIX™ 48-89-2329 Jobber Length Twist Drill Bit, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 135 deg Point, Steel, Cobalt

  • Manufacturer Name: Milwaukee Tool
  • MPN: 48-89-2329
  • Brand Name: Milwaukee®
  • UPC: 045242188444
  • FEPN: 48-89-2329 MT
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

The MILWAUKEE® RED HELIX™ Cobalt 1/2" Drill Bit are engineered for extreme durability and longer life in hard metal applications. The Milwaukee Cobalt drill bits are designed with a VARIABLE HELIX ™ that includes an aggressive 35° Helix Angle which ends at 15°. The drill bits have QUADEDGE TIP™ to decrease heat buildup and drill faster. The 135° split point tip delivers a precision start and prevents walking for fast, accurate holes in Hard Metal, PVC and wood.The tapered drill bits feature a new ENHANCED TAPERED WEB™ that strengthens the bit's core to increase flute durability. The cobalt twist drill bits are ideal for tough applications, providing up to 15X life vs. Black Oxide Drill Bits™.

Milwaukee® RED HELIX™ Jobber Length Twist Drill Bit, Imperial, 1/2 in Drill - Fraction, 0.5 in Drill - Decimal Inch, 5.12 in Overall Length, 4-1/2 in Cutting Depth, Parabolic Flute, 4-1/2 in Flute Length, 3/8 in Shank, 3-Flat/Reduced Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, Steel Cutting Edge, Steel, Cobalt, Applicable Materials: Hard Metal, Plastic, PVC, Stainless Steel and Wood

Applicable Materials       :      Hard Metal, Plastic, PVC, Stainless Steel and Wood
Cutting Depth       :      4-1/2 in
Cutting Direction       :      Right Hand
Cutting Edge Material       :      Steel
Drill Diameter Measurement System       :      Imperial
Flute Length       :      4-1/2 in
Flute Type       :      Parabolic
Overall Length       :      5.12 in
Point Type       :      Split
Shank Size       :      3/8 in
Shank Type       :      3-Flat/Reduced
Drill Size - Fraction       :      1/2 in
Drill Size - Decimal Inch       :      0.5 in
Point Angle       :      135 deg
Material       :      Steel
Finish       :      Cobalt

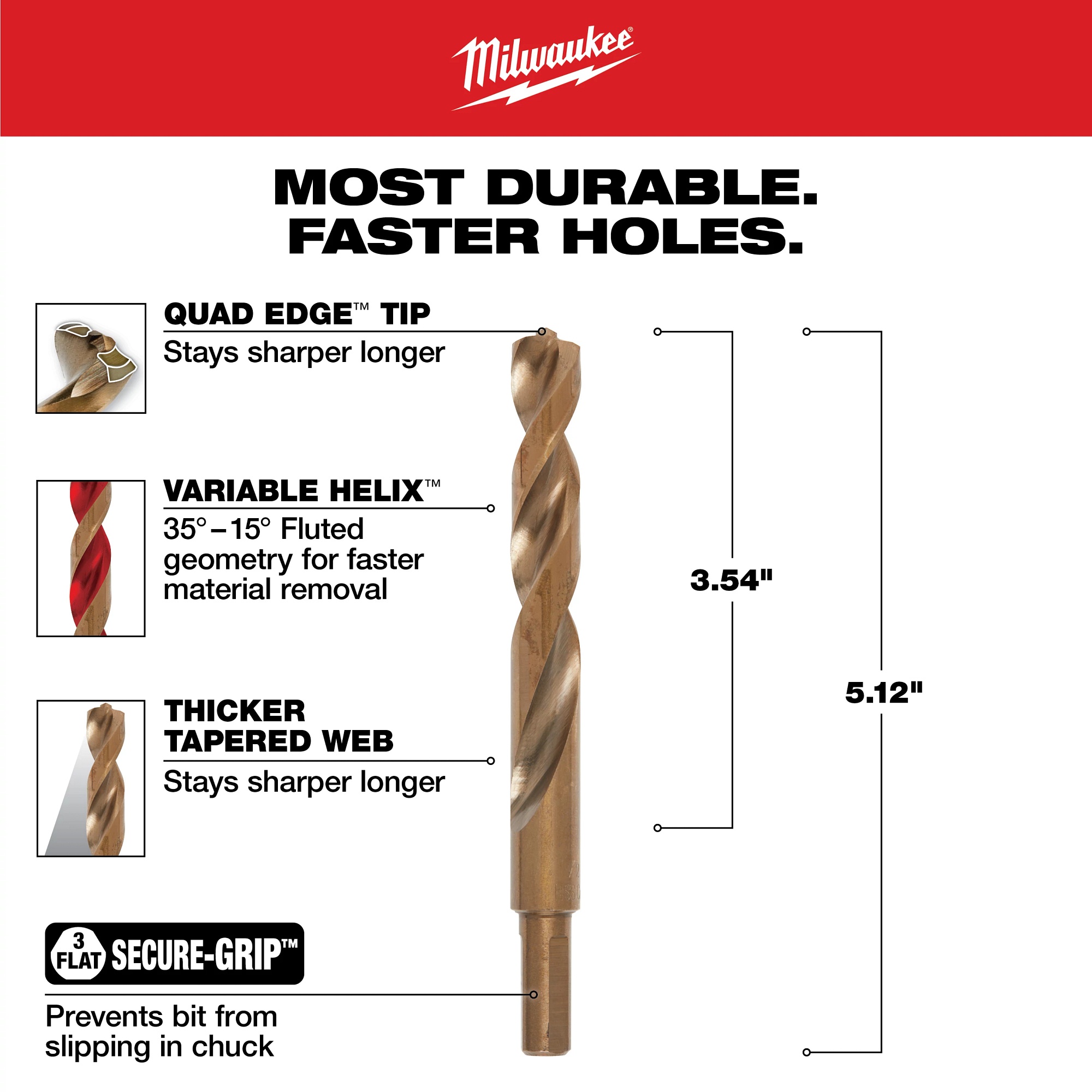

  • QUADEDGE TIP™ designed to decrease heat build up and drill faster
  • ENHANCED TAPERED WEB™ strengthens the bits core
  • VARIABLE HELIX™ design for rapid material extraction
  • 135 Deg split point for precision start no walking
  • Chip BREAKER™ decreased heat buildup
  • Cobalt alloy for up to 15X Life vs Black Oxide Drill Bits
  • 3-Flat Secure-Grip helps keep the bit fixed within thechuck
