Keystone Technologies KT-FLED35PS-R4A-UNV-8CSB-VDIM
Send Print
  1. pin-int

Keystone Technologies KT-FLED35PS-R4A-UNV-8CSB-VDIM

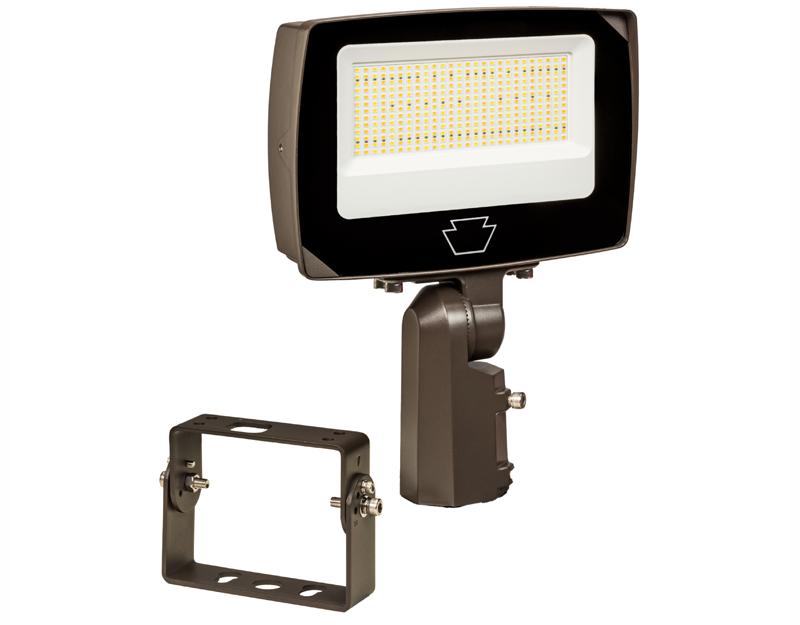

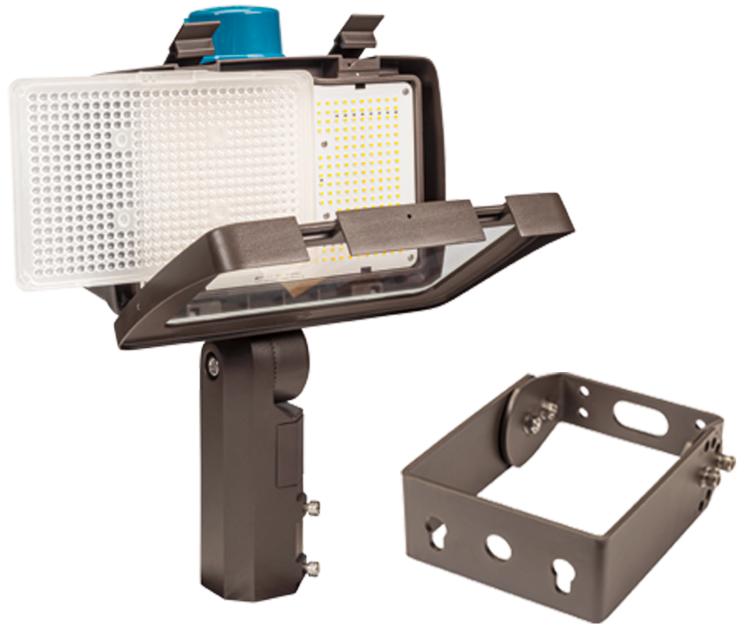

Keystone Technologies KT-FLED35PS-R4A-UNV-8CSB-VDIM Flood Light Fixture, LED Lamp, 32, 25, 15 W Fixture, 120 to 277 V AC, Bronze Housing

  • Manufacturer Name: Keystone Technologies
  • MPN: KT-FLED35PS-R4A-UNV-8CSB-VDIM
  • Brand Name: Keystone Technologies
  • UPC: 843654160009
  • FEPN: KT-FLED35PSR4AUNV8CSBVDIM KT
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Keystone Technologies, KT-FLED35PS-R4A-UNV-8CSB-VDIM, Flood Light Fixture, 120 to 277 V AC, 32, 25, 15 W Fixture, LED Lamp, 130/150/140, 133/155/145, 140, 160, 150 Lumens/W Light Output, 50000 hr Average Life, 3000/4000/5000 K Color Temperature, >80 CRI, 0 to 10 V AC Dimming Ballast, 4550/5250/4900, 3375/3875/3625, 2100/2400/2250 Lumens, Knuckle/Yoke Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 7.402 in H x 2.51 in W x 8.33 in L Dimensions

Average Life       :      50000 hr
Ballast Type       :      0 to 10 VAC Dimming
Color Rendering Index (CRI)       :      >80
Color Temperature       :      3000/4000/5000 K
Dimensions       :      7.402 in H x 2.51 in W x 8.33 in L
Housing Material       :      Die-Cast Aluminum
Light Output       :      130/150/140, 133/155/145, 140, 160, 150 Lumens/W
Lumens       :      4550/5250/4900, 3375/3875/3625, 2100/2400/2250 Lumens
Mounting Type       :      Knuckle/Yoke
Lamp Type       :      LED
Fixture Wattage       :      32, 25, 15 W
Voltage Rating       :      120 to 277 V AC
Housing Finish       :      Bronze

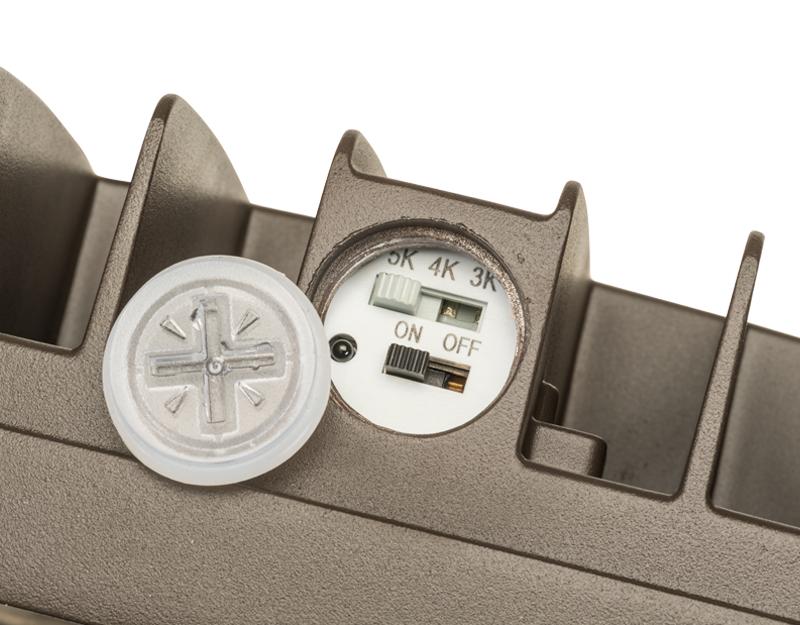

  • Keystone Power Select technology (see Performance Specifications for details)
  • LED floodlight with innovative design based on established floodlight principles
  • Built-in dusk-to-dawn photocell under 3/4 in knockout with anti-yellowing agent
  • NEMA 7H x 7V wide floodlight distribution
  • Ambient operating temperature - 40 deg C/ - 40 deg F to 50 deg C/122 deg F
  • Power factor greater than 0.95
  • LED chip lifetime L70 greater than 100,000 hr at 25 deg C/77 deg F ambient fixture temperature
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_FLED15PS_R4A_UNV_8CSB_VDIM_Specification_Sheet.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_HBLED105PS_2FB_8CSD_VDIM_P_TAA_User_Manual.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_LED13T5HE_48GC_835_S_G2_Catalog.pdf
