Keystone Technologies KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM
Send Print
  1. pin-int

Keystone Technologies KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM

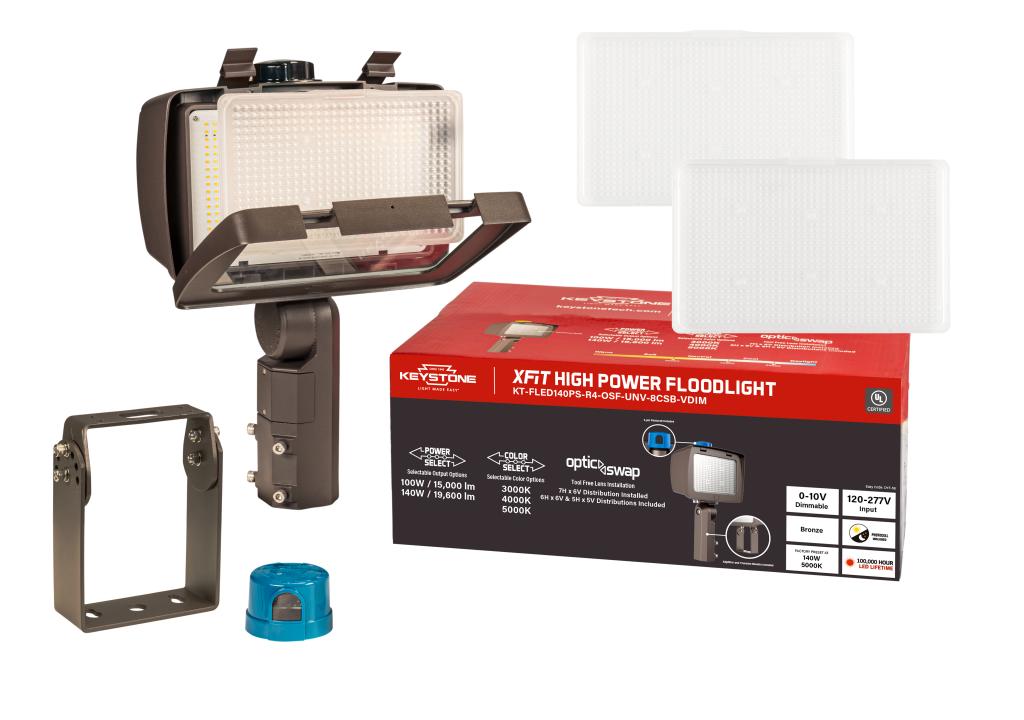

Keystone Technologies KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM Flood Light Fixture, LED Lamp, 140, 100 W Fixture, 120 to 277 V AC, Bronze Housing

  • Manufacturer Name: Keystone Technologies
  • MPN: KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM
  • Brand Name: Keystone Technologies
  • UPC: 843654160085
  • FEPN: KTFLED140PSR4OSFUNV8CSBVDIM KT
  • Min Order Qty: 1
  • Quantity Interval: 1
  • Inventory Availability loading loading

Keystone Technologies, KT-FLED140PS-R4-OSF-UNV-8CSB-VDIM, Flood Light Fixture, 120 to 277 V AC, 140, 100 W Fixture, LED Lamp, 130/150/140, 140/160/150 Lumens/W Light Output, 50000 hr Average Life, 3000/4000/5000 K Color Temperature, >80 CRI, 0 to 10 V AC Dimming Ballast, 18200/21000/19600, 14000/16000/15000 Lumens, Slip Fitter/Trunnion Mounting, Die-Cast Aluminum Housing Material, Bronze Housing Finish, 16.93 in H x 5.58 in W x 12.35 in L Dimensions

Average Life       :      50000 hr
Ballast Type       :      0 to 10 VAC Dimming
Color Rendering Index (CRI)       :      >80
Color Temperature       :      3000/4000/5000 K
Dimensions       :      16.93 in H x 5.58 in W x 12.35 in L
Housing Material       :      Die-Cast Aluminum
Light Output       :      130/150/140, 140/160/150 Lumens/W
Lumens       :      18200/21000/19600, 14000/16000/15000 Lumens
Mounting Type       :      Slip Fitter/Trunnion
Lamp Type       :      LED
Fixture Wattage       :      140, 100 W
Voltage Rating       :      120 to 277 V AC
Housing Finish       :      Bronze

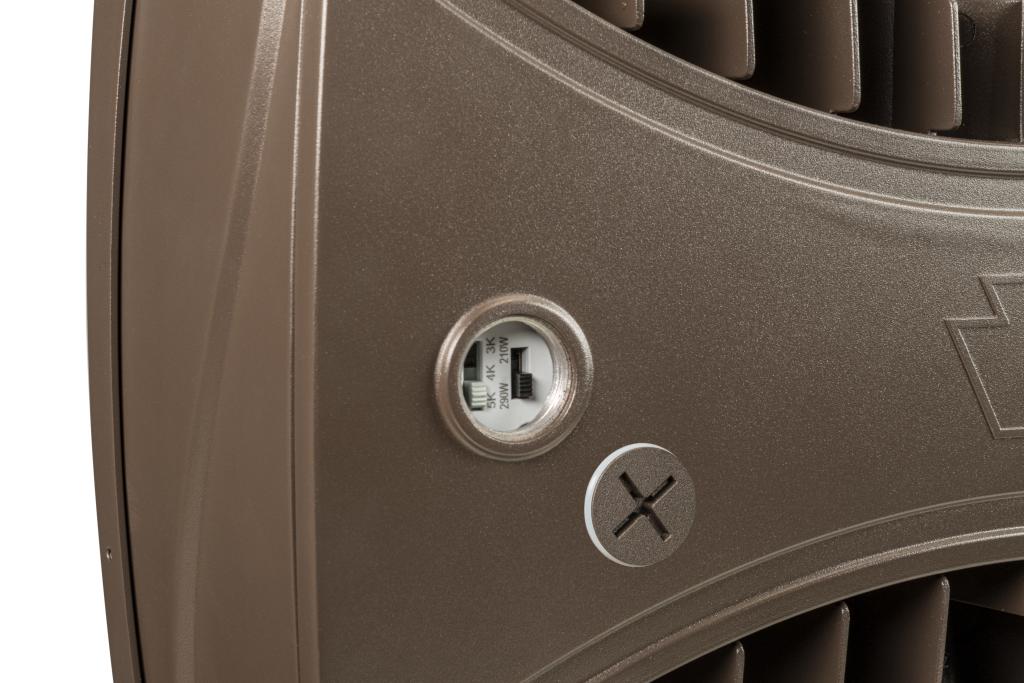

  • Keystone Power Select technology (see Performance Specifications for details)
  • High power floodlight design based on established floodlight principles
  • Innovative optic swap capability for quick, tool-free lens change
  • Ambient operating temperature - 40 deg C/ - 40 deg F to 50 deg C/122 deg F
  • Power factor greater than 0.95
  • LED chip lifetime L70 greater than 100,000 hr at 25 deg C/77 deg F ambient fixture temperature
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_FLED140PS_R4_OSF_UNV_8CSB_VDIM_Specification_Sheet.pdf
  • pdfOwners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_HBLED105PS_2FB_8CSD_VDIM_P_TAA_User_Manual.pdf
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Keystone_Technologies_KT_LED13T5HE_48GC_835_S_G2_Catalog.pdf
