Keystone Technologies KT-HBLED105PS-1C-OSC-8CSD-VDIM
Keystone Technologies KT-HBLED105PS-1C-OSC-8CSD-VDIM High Bay Fixture, 120 to 277 V, White Housing
- Manufacturer Name: Keystone Technologies
- MPN: KT-HBLED105PS-1C-OSC-8CSD-VDIM
- Brand Name: Keystone Technologies
- UPC: 843654105703
- FEPN: KT-HBLED105PS-1C-OSC-8CSD-VDIM KT
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
Keystone Technologies, KT-HBLED105PS-1C-OSC-8CSD-VDIM, High Bay Fixture, 120 to 277 V, 105/90/65 W Lamp, 50000 hr Average Life, 4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimming Ballast, 16100/13800/10200 Lumens, Ceiling Mounting, White Housing Finish, 2 in H x 12 in W x 15 in L Dimensions
| Average Life | : | 50000 hr |
| Ballast Type | : | 0 to 10 V Dimming |
| Color Rendering Index (CRI) | : | 80 |
| Color Temperature | : | 4000/5000 K |
| Dimensions | : | 2 in H x 12 in W x 15 in L |

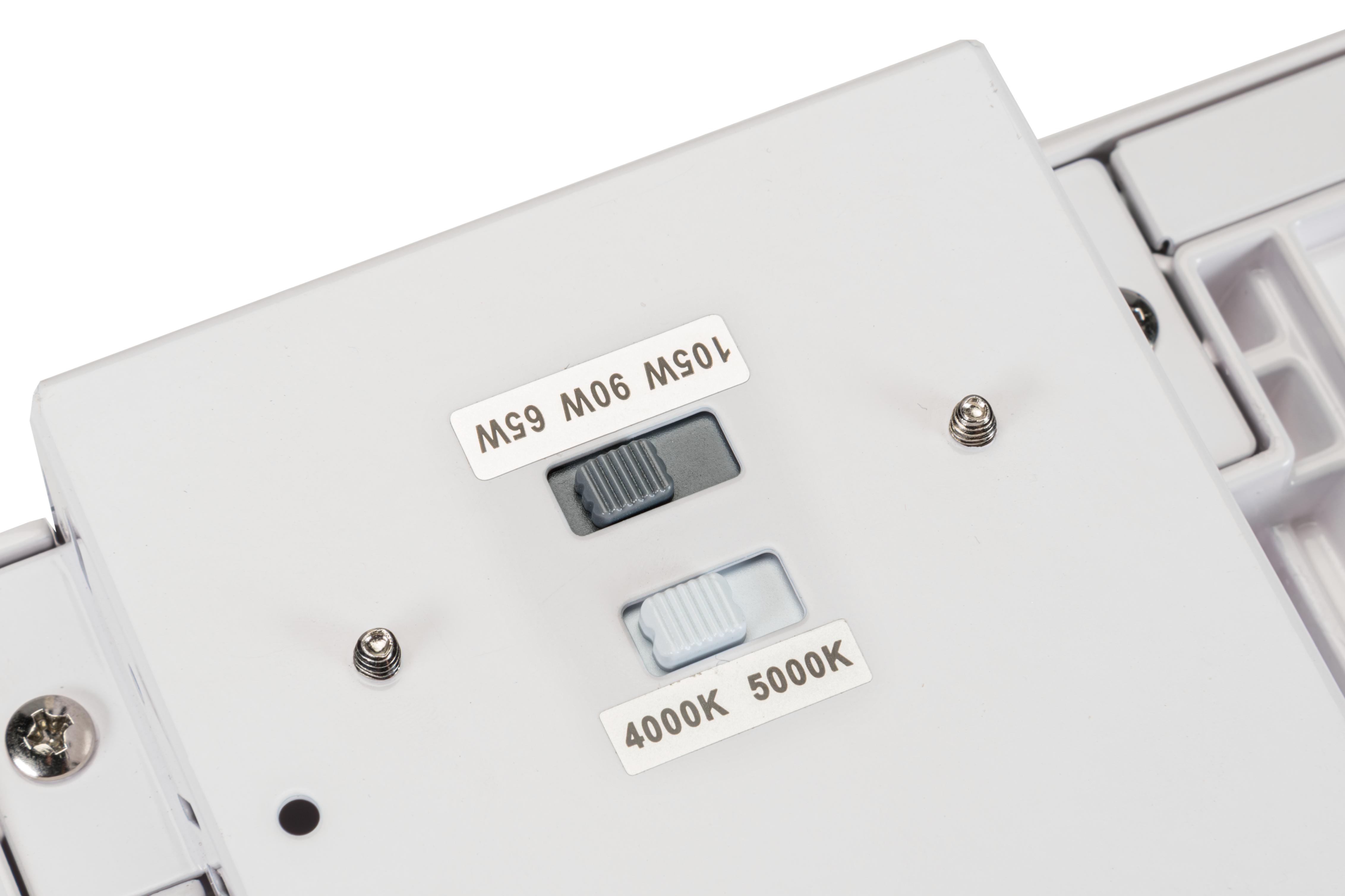

| Lamp Wattage | : | 105/90/65 W |
| Lumens | : | 16100/13800/10200 Lumens |
| Mounting Type | : | Ceiling |
| Lamp Type | : | LED |
| Voltage Rating | : | 120 to 277 V |
| Housing Finish | : | White |
- Innovative tool-free optic swap capability
- Smooth diffused lens for an even appearance

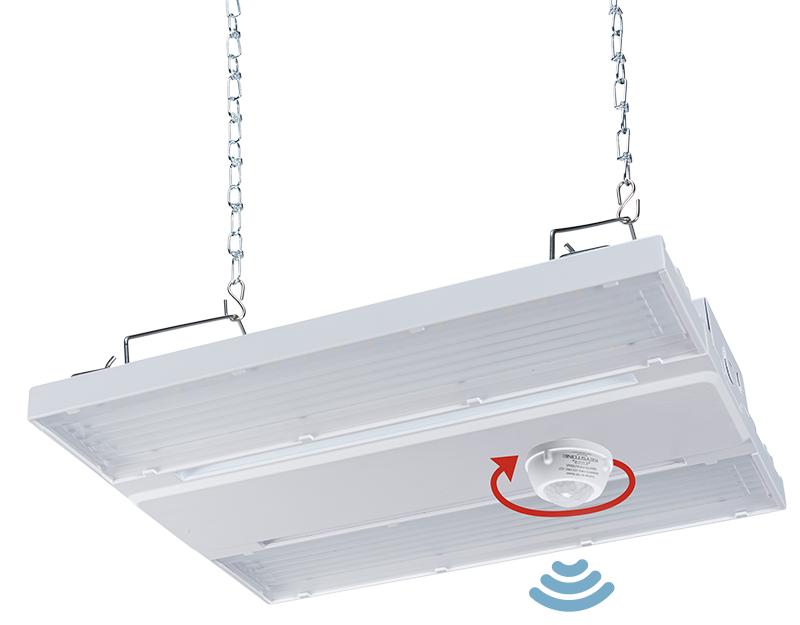

- Built in port to accept Quick install Keystone sensor (KTS-MW3-12V-PKO and KTS-PIR3-12V-PKO.) NO wiring required
- Ambient operating temperature - 20 deg C/-4 deg F to 55 deg C/131 deg F
- Power factor greater than 0.95
- 6kV built-in surge protection
- Architectural grade compact design
- Frosted lens eliminates glare
- Compatible with Keystone SmartSafe emergency LED drivers, KT-EMRG-LED-12C-1200-EN /DF and KT-EMRG-LED-20SD2000-EN /DF are optimal for fixture level installation, mounting kit KT-HBLED-EM-BR-1C-KIT required (sold separately)
Specification Sheet
