The TWR2 LED wall pack offers a classic appearance with a traditional shape and is loaded with modern features including three adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell. TWR2 provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy. TWR2 is powerful yet efficient, delivering 8,200 - 16,100 lumens and capable of replacing up to a 400w HID while saving up to 86% in energy costs. Offering an expected service life of more than 20 years, the TWR2 LED eliminates frequent lamp and ballast replacements associated with traditional technologies. Designed to provide a cost-effective, energy-efficient solution when replacing the entire site or only a portion of the buildings wall packs. TWR2 is the ideal choice for outdoor wall-mounted applications including loading areas, building facades, driveways, and parking areas.

Lithonia Lighting®, TWR2 LED ALO SWW2 UVOLT PE DDBTXD, Wallpack, Series: TWR, 120 to 277 V, 112 W Fixture, LED Lamp, 50000 hr Average Life, 3000. 4000/5000 K Color Temperature, 80 CRI, 0 to 10 V Dimmable Ballast, Glass Lens, 16100 Lumens, Wall Mounting, Aluminum Housing Material, Dark Bronze Housing Finish, 12 in H x 7.5 in W x 5 in L Dimensions

• The TWR2 LED wall pack offers a classic appearance with a traditional shape and is loaded with modern features including three adjustable light outputs (ALO), three switchable color temperatures (SWW) 30/40/50K CCT and a switchable dusk-to-dawn photocell
• TWR2 provides ultimate versatility with 18 configurations in one SKU, making on-the-spot reconfiguring quick and easy
• Designed to provide a cost-effective, energy-efficient solution when replacing the entire site or only a portion of the buildings wall packs

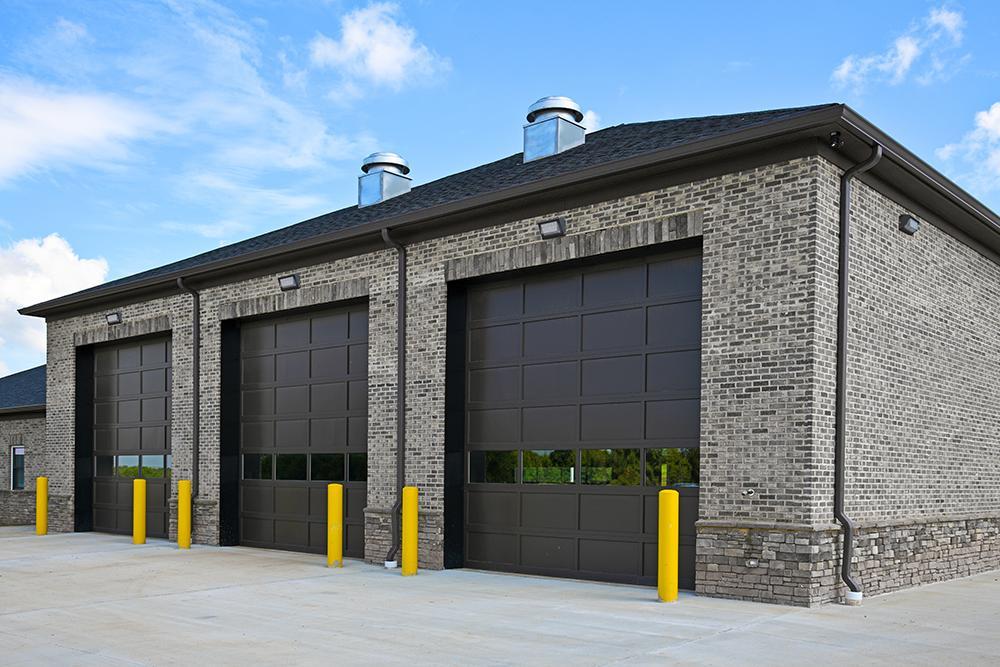

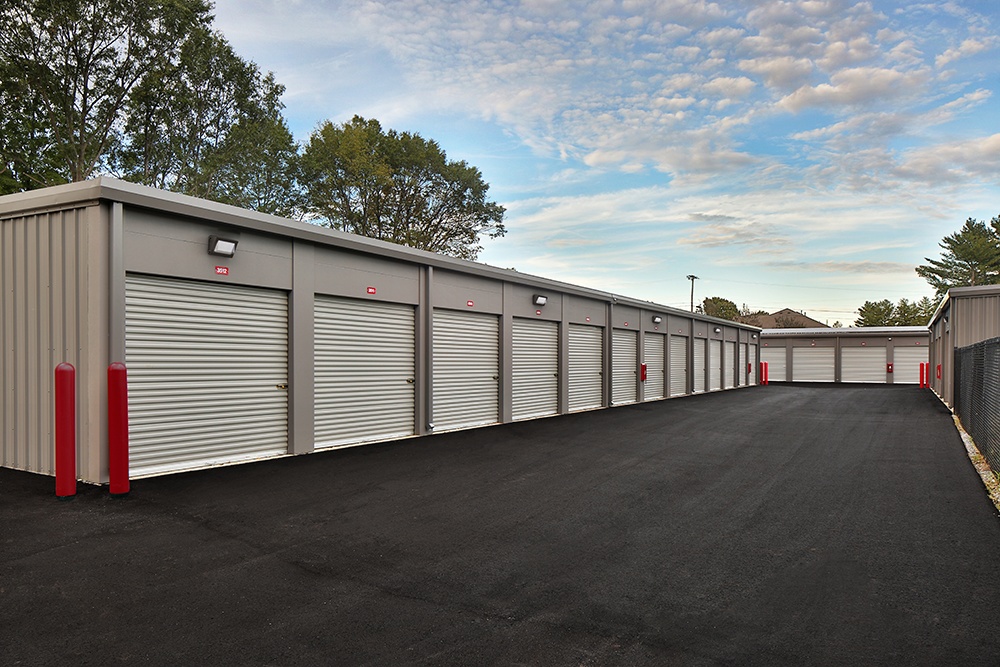

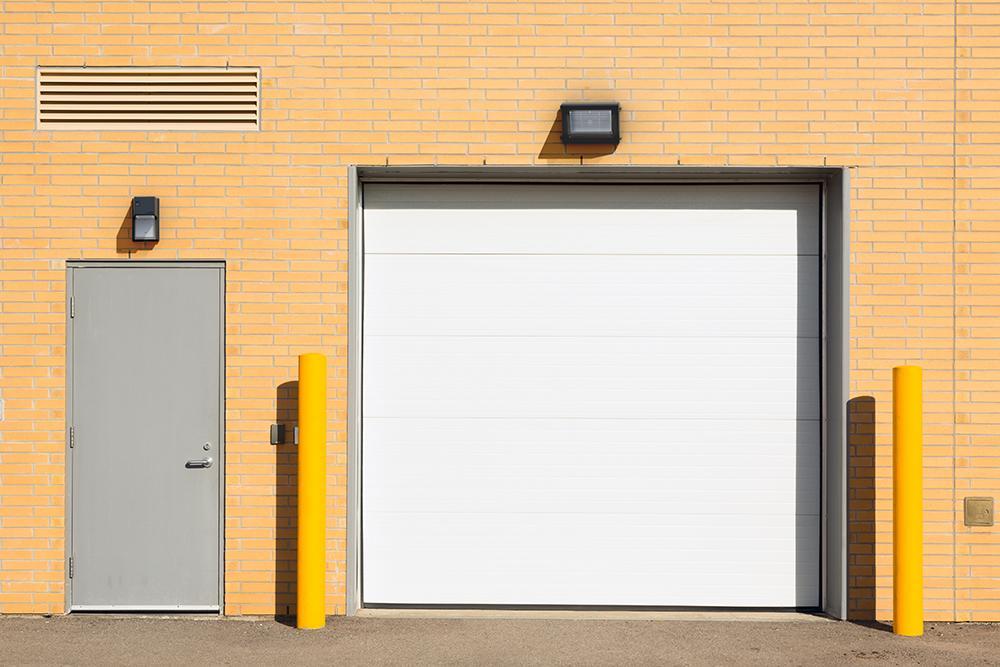

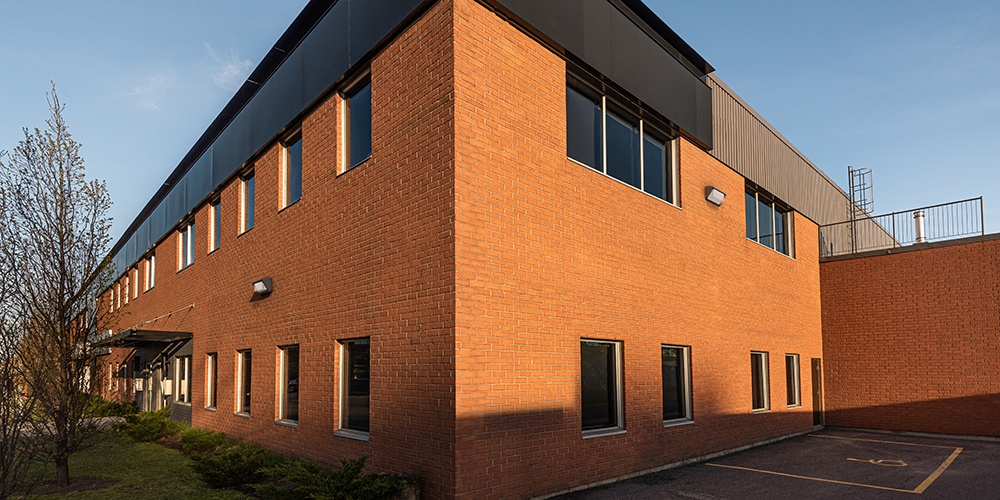

• TWR2 is the ideal choice for outdoor wall-mounted applications including loading areas, building facades, driveways, and parking areas
• ENERGY SAVINGS - Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination and extended service life with energy savings of up to 86% when replacing HID wall packs
• VOLTAGE - UVOLT for 120-347V (50/60Hz)
• HOURS OF LIFE - LEDs maintain 90% of light output at 100,000 hr of service or L90/100,000 hr
• Housing is configured for mounting directly over a standard 4 outlet box (by others) or for surface wiring via any of four convenient 1/2 threaded conduit entry hubs
• BATTERY BACKUP - Not available

• Instruction/Installation Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TWR2_LED_ALO_SWW2_UVOLT_PE_DDBTXD_Installation_Manual.pdf
• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_TWR2_LED_ALO_SWW2_UVOLT_PE_DDBTXD_Specification_Sheet.pdf
• VIDEO LINK https://youtu.be/hkADJP3JppI
