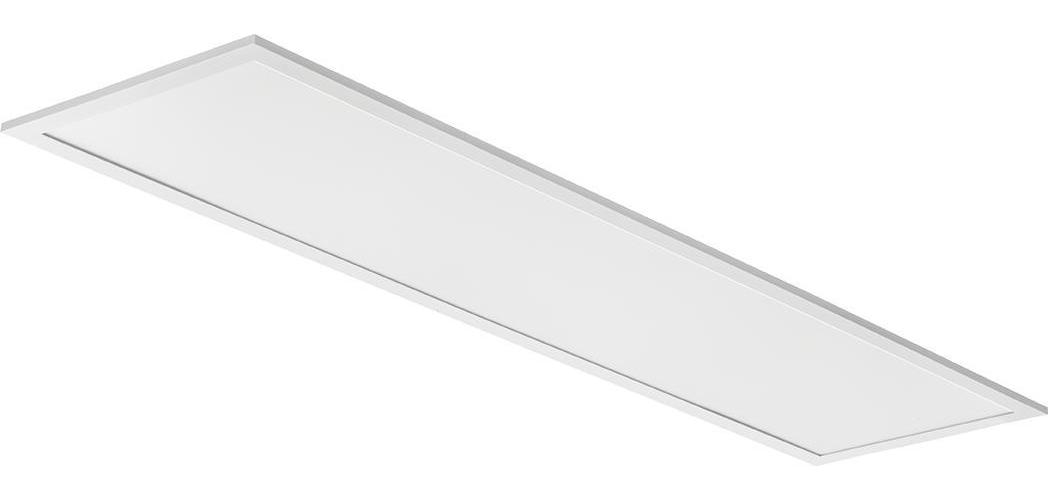

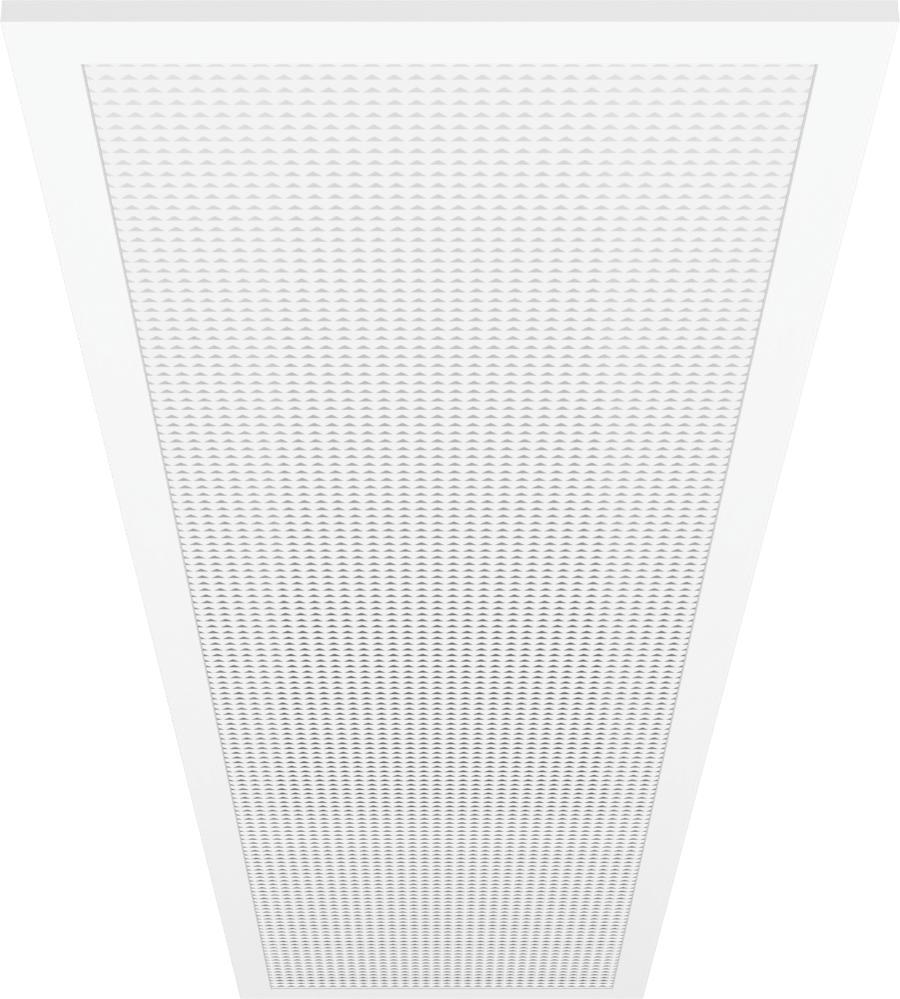

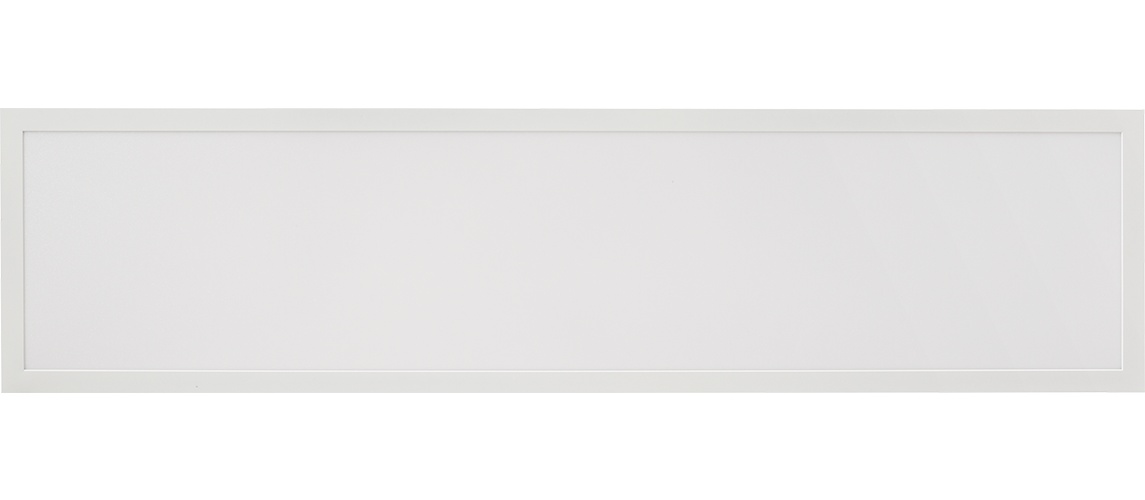

Lithonia Lighting® CPX 1X4 ALO7 SWW7 M4
Lithonia Lighting® CPX 1X4 ALO7 SWW7 M4 CPX Flat Panel, 35.7 W Fixture, 120 to 277 V, Aluminum Housing
- Manufacturer Name: Acuity Brands
- MPN: CPX 1X4 ALO7 SWW7 M4
- Brand Name: Lithonia Lighting®
- UPC: 194994568063
- FEPN: CPX 1X4 ALO7 SWW7 M4 LI
- Min Order Qty: 1
- Quantity Interval: 1
-
Inventory Availability
-
Retail Price:
The 1 ft. x 4 ft. CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price. The smooth, even lens projects a crisp and clean aesthetic. This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4000 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT, neutral to daylight color temperature. CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects.
Lithonia Lighting®, CPX 1X4 ALO7 SWW7 M4, Panel, Flat, Series: CPX, 120 to 277 V, 35.7 W Fixture, 50000 hrs Average Life, 3500/4000/5000 K Color Temperature, 80 CRI, Acrylic Lens, 2500, 3200, 4000 Lumens, Ceiling/Recessed/Surface/Suspended Mounting, Aluminum Housing Material, 47.8 in L x 11.8 in W x 2.1 in D Dimensions
| Average Life | : | 50000 hrs |
| Color Rendering Index (CRI) | : | 80 |
| Color Temperature | : | 3500/4000/5000 K |
| Dimensions | : | 47.8 in L x 11.8 in W x 2.1 in D |
| Lens Type | : | Acrylic |
| Lumens | : | 2500, 3200, 4000 Lumens |
| Mounting Type | : | Ceiling/Recessed/Surface/Suspended |
| Series | : | CPX |
| Type | : | Flat |
| Fixture Wattage | : | 35.7 W |
| Voltage Rating | : | 120 to 277 V |
| Housing Material | : | Aluminum |
- The 1 ft x 4 ft CPX panel from Lithonia Lighting is the perfect choice for a quality LED panel at an affordable price
- The smooth, even lens projects a crisp and clean aesthetic
- This CPX configuration offers Adjustable Light Output (ALO) for the option of 2400-4000 lumens and Switchable White (SWW) for three color temperature in one - 35/40/50K CCT, neutral to daylight color temperature
- CPX is the perfect choice for budget-conscious school, commercial office, or small retail footprint projects
- TECHNOLOGY - CPX features fully switchable color and adjustable lumen technology for maximum customization
- INSTALLATION - Low-profile design provides increased installation flexibility especially in restricted plenum spaces, Can be installed in T-grid drop ceilings or suspended
- COMPATIBLE CONTROLS - SensorSwitch wireless dimming (JOT) or luminaire-embedded occupancy sensor control (JOTVTX15) with JOT pairing
- HOURS OF LIFE - Greater than 70% LED lumen maintenance at 50,000 hr (L70 greater than 50,000)
Instruction/Installation Manual
VIDEO LINK
