HyShed
Sanitary Washdown Enclosure Solutions
|
PROTECT EQUIPMENT
|
IMPROVE SANITATION
|
REDUCE DOWNTIME
Get a free Thermal Audit. Find out how.
WHY HYSHED?
Food & Beverage processors face strict sanitary requirements and washdown cleaning routines. Traditional enclosures require time-consuming prepwork like bagging and caulking, which slow operations and risk contamination. HyShed enclosures eliminate these extra steps with a streamlined hygienic design that ensures compliance, safety, and efficiency.Watch Hyshed in Action:

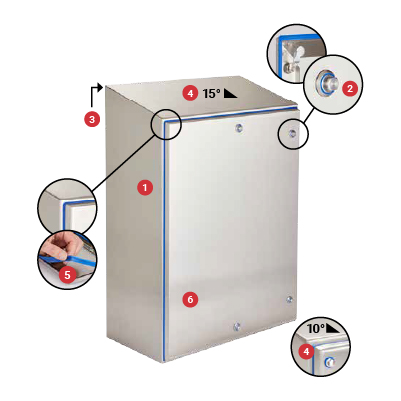

STREAMLINED HYGIENIC DESIGN
1
Internally mounted hinges reduce catch points and corrosion
2
Crevice-free latch and screw surfaces use standard tool
3
Solid back with no pre-tapped holes for easy weld mounting
4
Sloped top prevents fluids or particulates from pooling while degree of slope maximizes back panel space and minimizes footprint
5
Replaceable blue FDA-grade silicone gasket is easy to install, clean, and maintain, resists bacteria growth and chemical absorption, while preventing water entry
6
Complete 304 stainless steel construction and hardware feature a No. 4 Dairy finish that enhances protection against corrosion, moisture intrusion, and particulate buildup
FULL ENCLOSURE & ACCESSORY SOLUTION
18 hinge cover models
|
5 screw cover models
|
IP69K-rated accessories
IDENTIFY HIDDEN HEAT RISKS
IN YOUR ELECTRICAL ENCLOSURES
Get a FREE Thermal AuditIN YOUR ELECTRICAL ENCLOSURES
nVent Hoffman Enclosure Solutions for Sanitary Washdown Applications

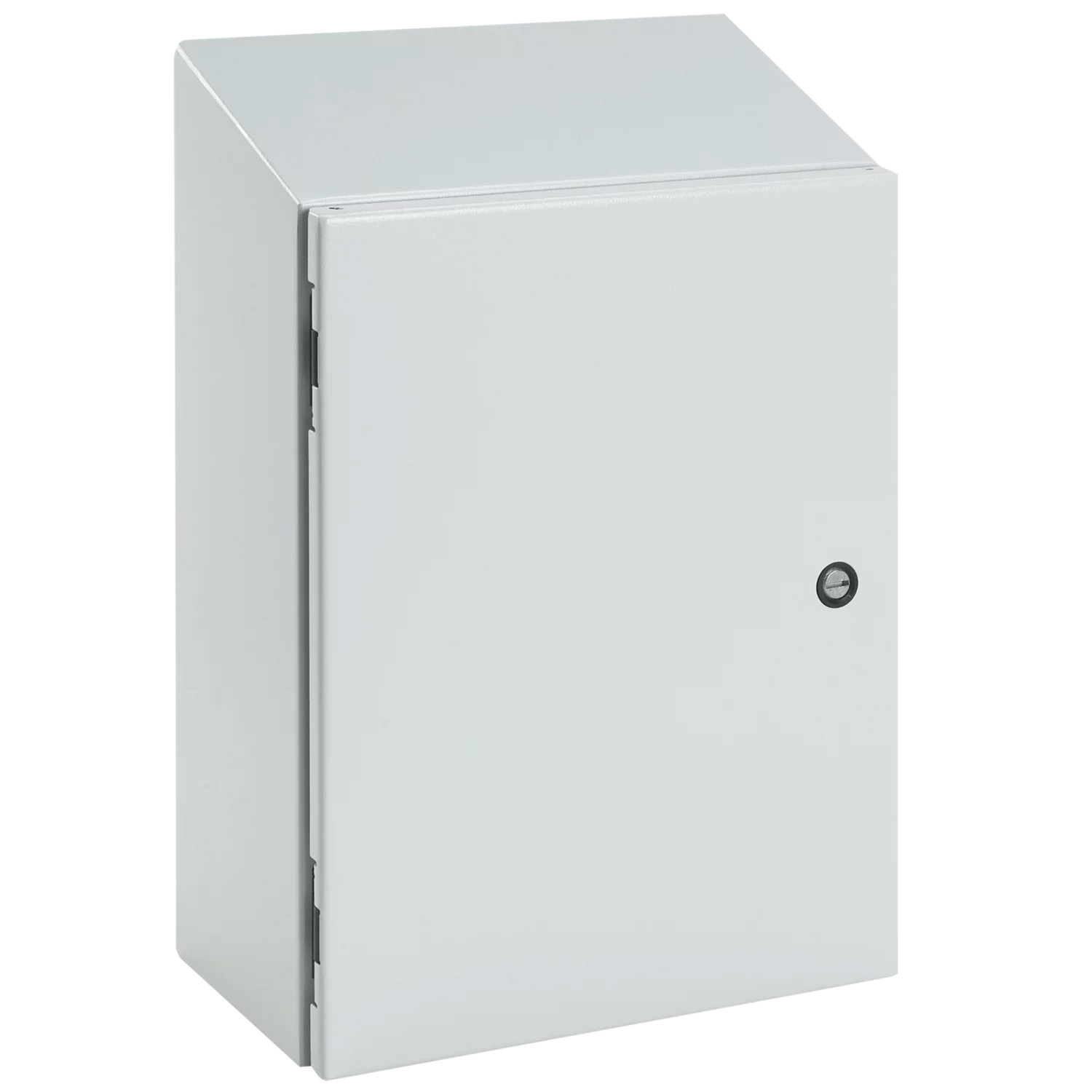

Concept Sloped Top
Basic-Level Protection
Ideally suited to protect equipment in minimal washdown applications.
- Industry Standards:
- IP66, Type 4X
- Features:
- Foam-in-place gasket
- Pre-tapped mounting holes
- 90-degree body flange
- Recommended accessories:
- Sanitary leg stands
- Corrosion inhibitors
- Recommended applications:
- Areas with no food contact
- Minimal washdown/chemical contact

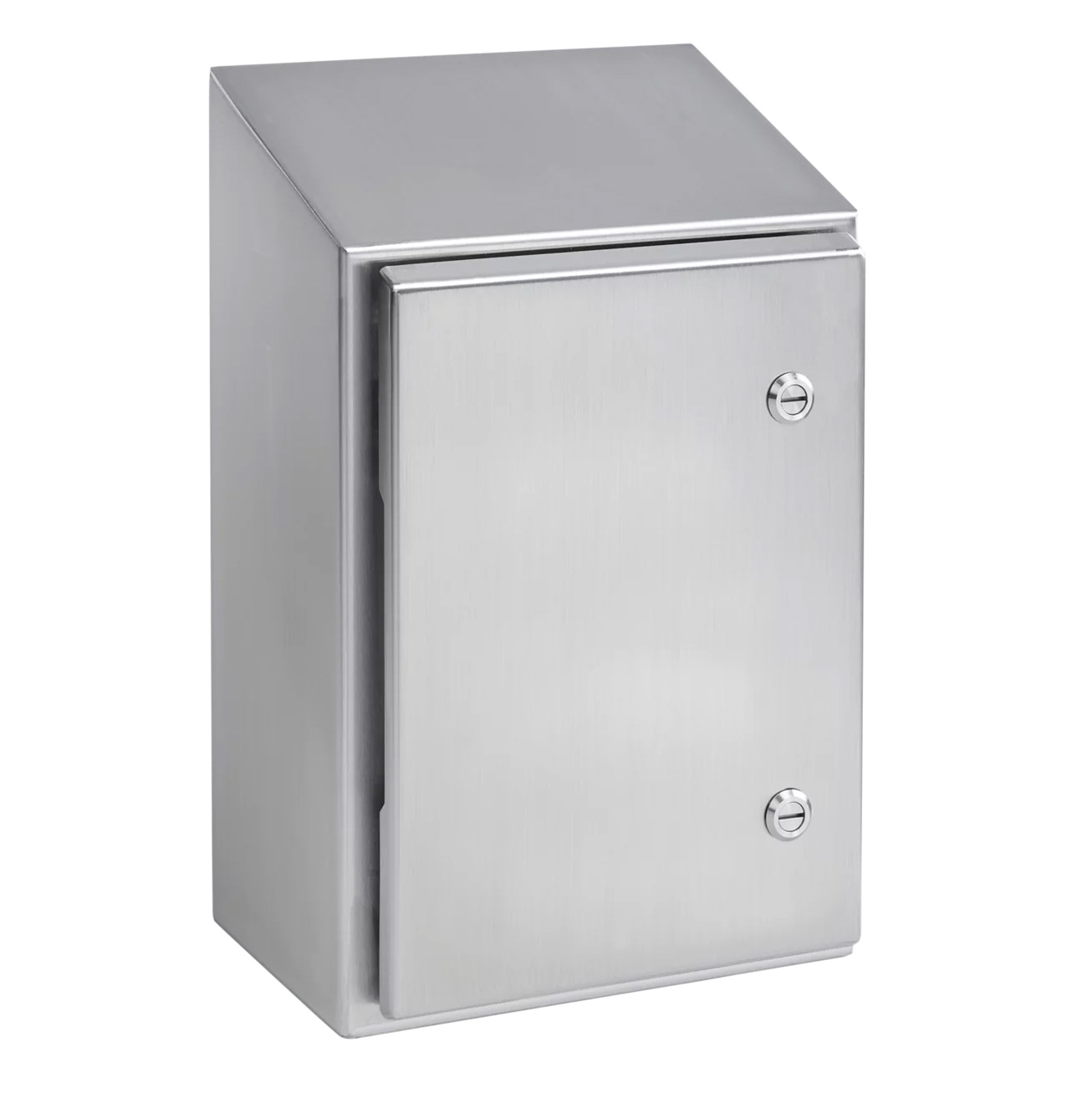

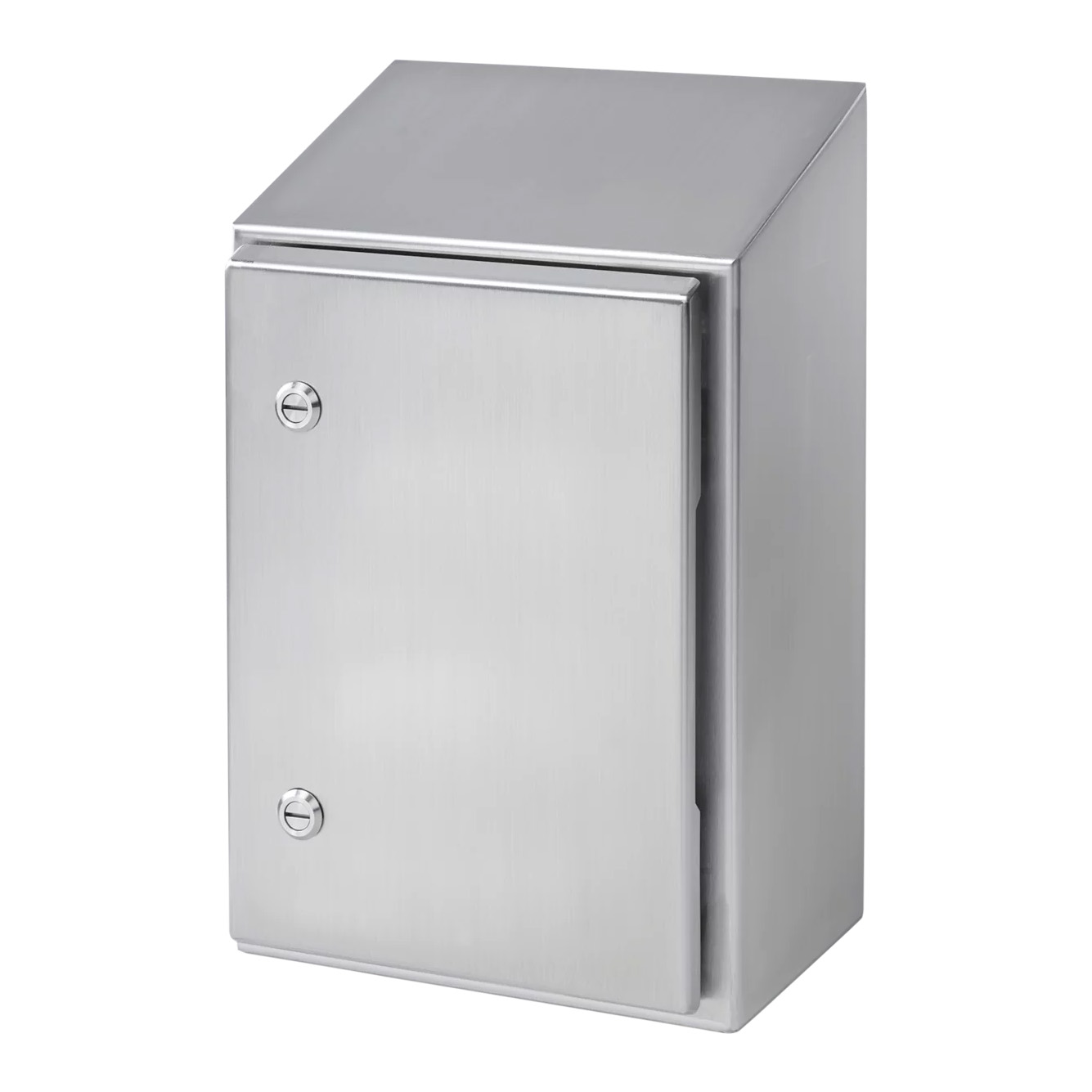

WaterShed
Medium-Level Protection
Ideally suited to protect equipment in sanitary washdown applications.
- Industry Standards:
- IP66, NSF, Type 4X
- Features:
- Foam-in-place gasket
- Easy lift-off hinges shielded by door
- Stainless steel quarter-turn latch and insert
- Slanted body flange
- Recommended accessories:
- H2Omit vent drain and dehumidifier
- Sanitary leg stands
- Sanitary stand offs
- Recommended applications:
- Food processing areas
- Mild washdown/chemical contact

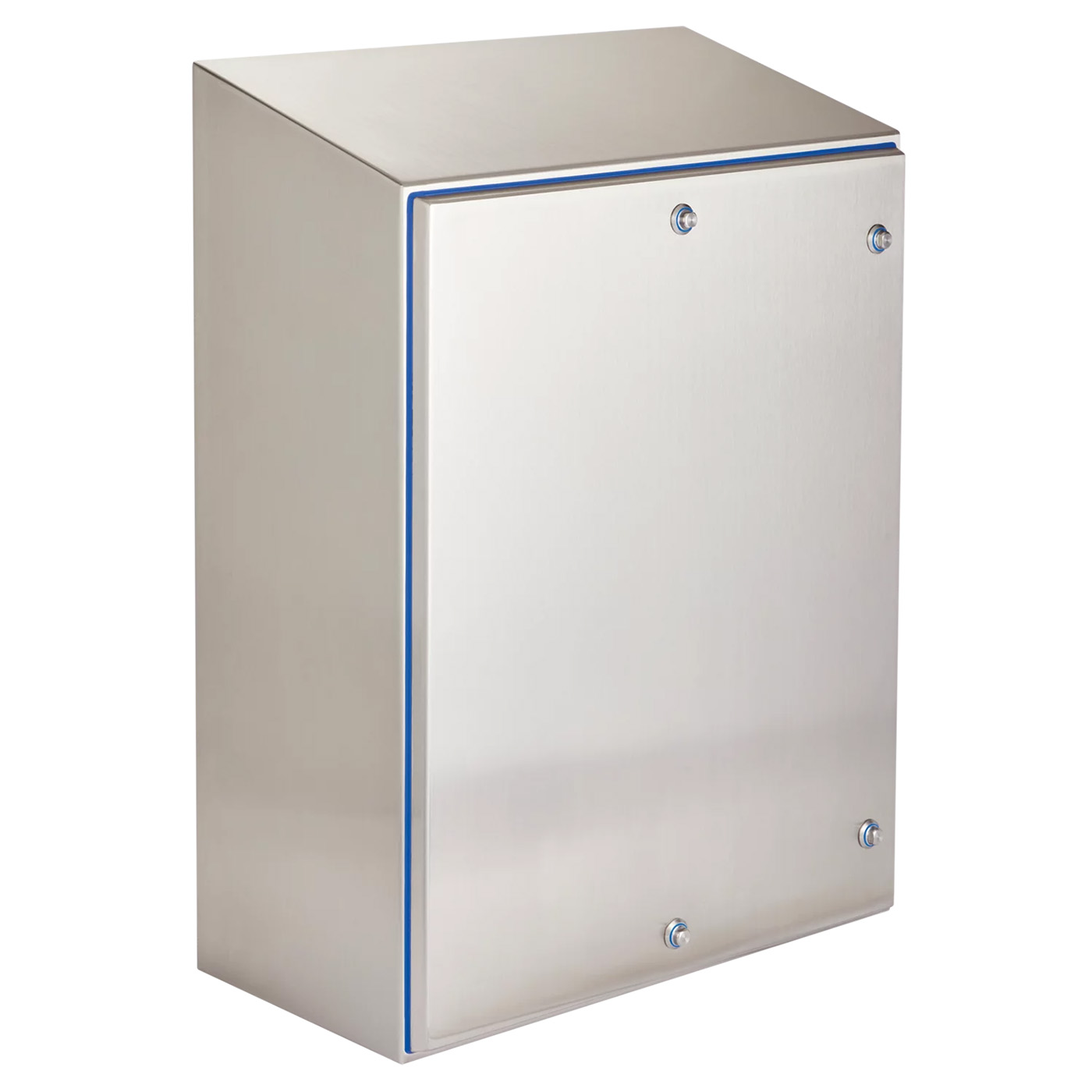

HyShed
High-Level Protection
Ideally suited to protect equipment in CIP and harsh sanitary washdown applications.
- Industry Standards:
- IP69K (DIN), IP69 (IEC), NSF, Type 4X
- 3-A System Component Qualification Certificate
- Features:
- FDA-grade replaceable silicone gasket
- Internally mounted hinges
- Solid back for easy weld mounting
- Hygienic latching mechanisms
- Recommended accessories:
- IP69K accessories
- Replaceable FDA-grade silicone gasket
- Recommended applications:
- On-machine controls and areas with large temperature swings
- Direct washdown, CIP or chemical rich contact
SCHEDULE YOUR FREE
THERMAL AUDIT SERVICE
Minimize downtime. Reduce maintenance costs.
Heat is one of the biggest threats to enclosure performance. Excessive temperatures can shorten equipment life, cause unplanned downtime, and increase maintenance costs. nVent Hoffman’s FREE Thermal Audit helps you find and fix risks before they impact operations.
1. ENCLOSURE & COOLING UNIT INSPECTION
Analyze equipment & environment
2. THERMAL ANALYSIS
Identify problematic electronics & components
3. RECOMMENDATIONS
Personalized report with solution recommendations
Get Started!
To learn more about HyShed sanitary washdown enclosure solutions or to schedule your FREE Thermal Audit, contact:
