Introducing the Hoffman Universal Free-Stand Enclosure Solution

The Universal Free-Stand Enclosure is designed to protect equipment and employees in industrial manufacturing applications. The one- and two-door models are bayed together to create application-specific configurations for indoor and outdoor use. Accessories are available to improve end-user safety and add additional panel space. These standard enclosures ship faster, modify and assemble faster and increase safety providing you more time.

Design, Modify & Assemble Faster, While Improving Control Panel Safety

Faster Design

Six base enclosures with universal type ratings 4x, 4, 12, 3R, IP66 and IK10 can be configured to meet customer's large enclosure needs.

Reduced Labor

Lighter doors, improved center post, panel glider, and state-of-the-art interlock can help cut installation costs.

Improved Safety

Easily add voltage separation between bays and keep bays shut with state-of-the-art interlock.

Frequently Asked Questions

Why should I use the Universal Free-Stand product line?

Universal Free-Stand reduces overall project lead time while providing safety and reliability during end use applications because it is robust, bayable and has multiple type ratings with accessories focused on safety and component mounting density.

What type ratings does Universal Free-Stand have?

Base Enclosures and End Plates

• UL Type 4X, 4, 12, and 3R
• IP66, IK10

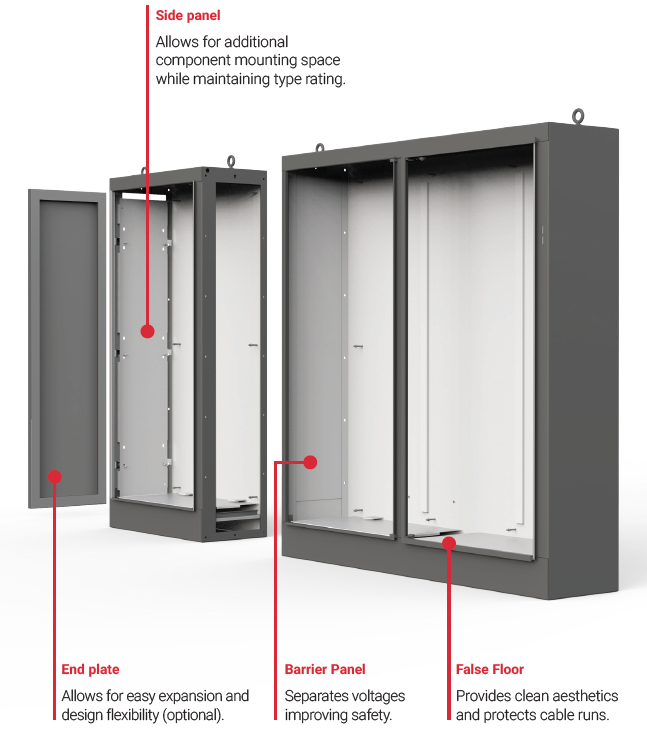

Accessories

• False Floor and Barrier Panel – UL Type 1
• Not applicable for all others

Should I bay the base enclosures together before installing the accessories?

Yes, the accessories are designed to be installed after the base enclosures are bayed together. This is to simplify design, and allow for accessories to be added at any stage in the design.

Do I need to use the Left side open model (ends with LLP) for the interlock system to work?

Yes, the primary interlock driving mechanism is located in the Left Side Open model so it is needed for the interlock to function properly.

What is the standard disconnect handle cut out?

The standard disconnect cutout are on the Left Side Open models and are a preferred cutout to work with the greatest number of disconnects or breakers.

Will these models be in the HoD and Express Program?

Yes, as we launch the Mild Steel Models will be added to HoD and the Express program replacing the AMOD (Bulletin A34) enclosures.
